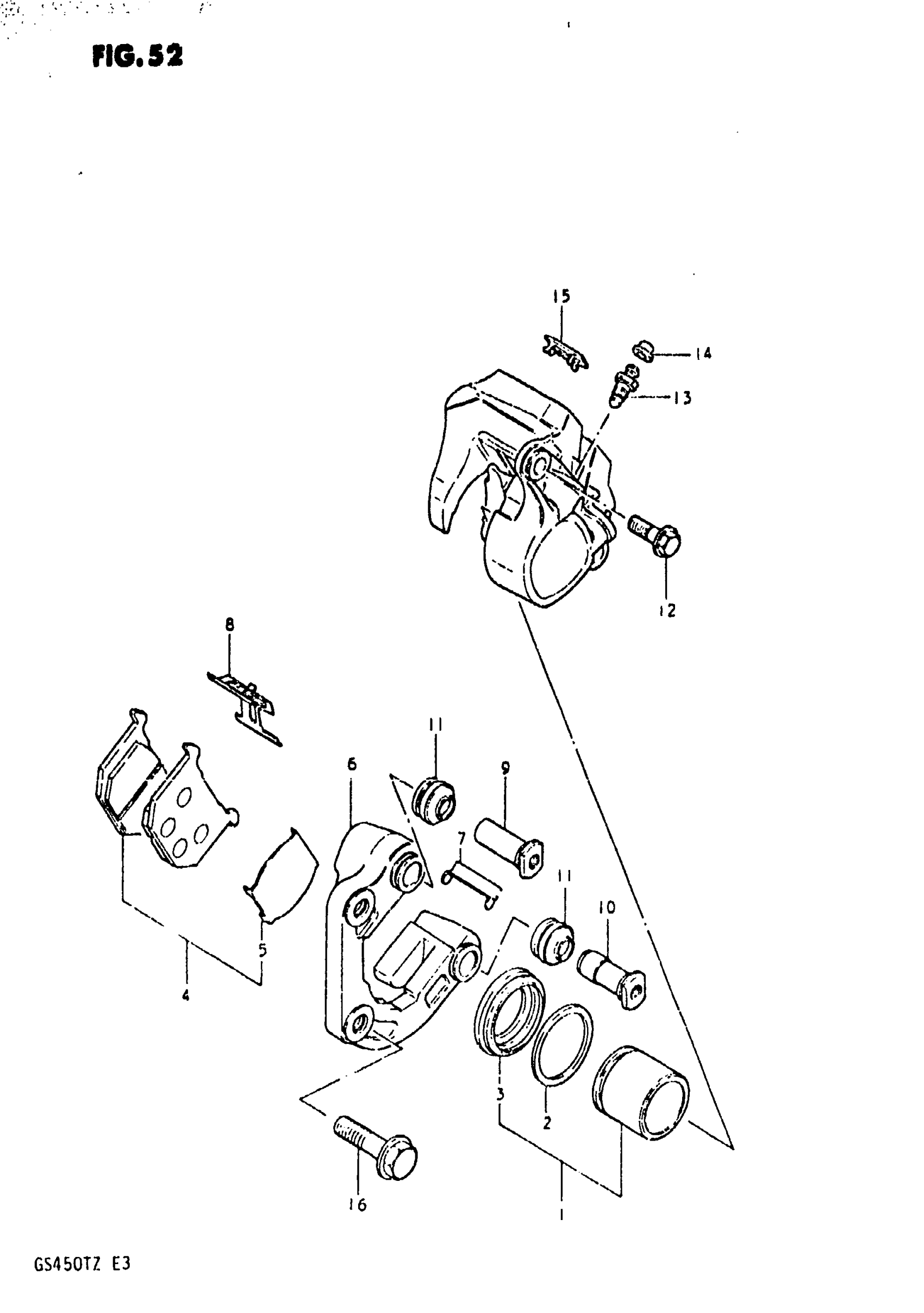

Suzuki GS450T (1982) FRONT CALIPERS Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 59300-45250.

59300-45290

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL Z; Includes Item(s) 1 - 15 This part replaces 59300-45251.

59300-45290

Unavailable

1

PISTON SET

59301-45830

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

3

BOOT, PISTON

59308-45250

Unavailable

4

PAD SET This part replaces 59301-45810.

59302-45850-XNA

Unavailable

5

SHIM, PAD

59371-45200

Unavailable

6

HOLDER, CALIPERS LH This part replaces 59301-45840.

59301-45841

Unavailable

7

GUIDE, PAD | MODEL X This part replaces 59316-45200.

59316-45201

$5.15

7

GUIDE, PAD | MODEL Z

59316-45201

$5.15

8

SPRING, PAD

59315-45200

$12.32

9

AXLE, CALIPERS NO.1

59305-45200

Unavailable

10

AXLE, CALIPERS NO.2

59306-45200

Unavailable

11

BOOT, AXLE

59312-45200

$8.79

12

BOLT This part replaces 59314-45200.

59314-45201

$5.55

13

BLEEDER

59121-18410

$8.73

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

15

COVER This part replaces 59324-45200.

59324-45201

Unavailable

16

BOLT

09103-10019

$2.63
