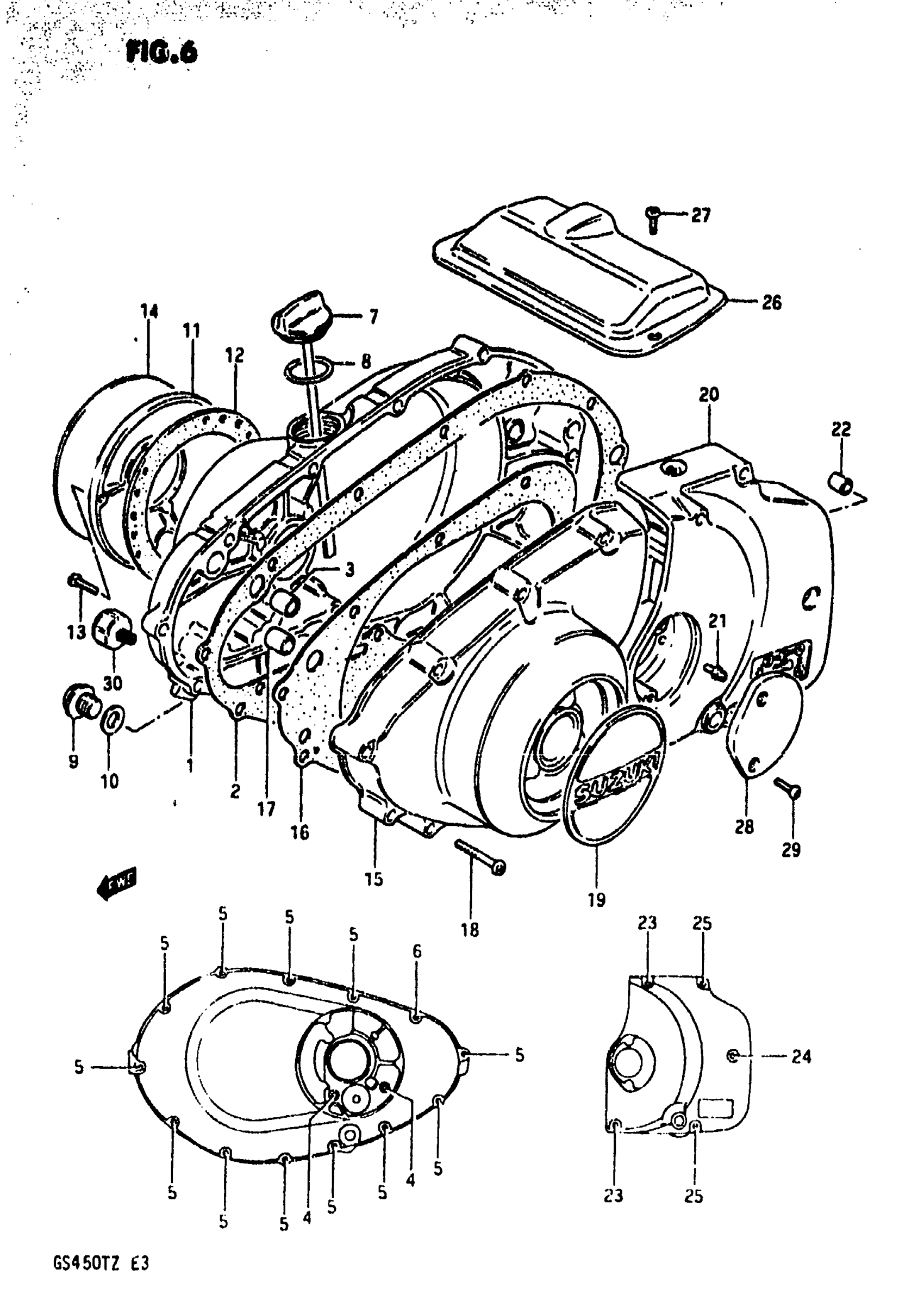

Suzuki GS450T (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL X This part replaces 11341-44100.

11341-44101

Unavailable

1

COVER, CLUTCH | MODEL Z

11341-44101

Unavailable

2

GASKET, CLUTCH COVER This part replaces 11482-44100.

11482-44110

$20.96

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6x55) | MODEL X

02112-06557

$2.53

4

BOLT | MODEL Z This part replaces 01547-06558.

01547-06557

$2.32

5

SCREW | MODEL X This part replaces 02112-06358.

02112-06357

$1.78

5

BOLT | MODEL Z This part replaces 01547-06358.

01547-06357

$2.03

6

SCREW | MODEL X This part replaces 02112-06258.

02112-06257

$1.78

6

BOLT | MODEL Z This part replaces 01547-06258.

01547-06257

$2.03

7

GAUGE, OIL LEVEL

11970-44100

Unavailable

8

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

9

PLUG This part replaces 09247-14012.

09247-14026

$3.76

10

GASKET

09168-14004

$1.83

11

COVER, CONTACT BREAKER | MODEL X This part replaces 11381-44100.

11381-44101

Unavailable

11

COVER, CONTACT BREAKER | MODEL Z

11381-44101

Unavailable

12

GASKET

11491-44100

Unavailable

13

SCREW | MODEL X This part replaces 02112-05168.

02112-05167

$1.97

13

BOLT | MODEL Z This part replaces 01544-05168.

01547-05167

$1.72

14

EMBLEM

68233-44100

Unavailable

15

COVER, GENERATOR | MODEL X This part replaces 11351-44100.

11351-44102

Unavailable

15

COVER, GENERATOR | MODEL Z This part replaces 11351-44101.

11351-44102

Unavailable

16

GASKET, GENERATOR COVER This part replaces 11483-44100.

11483-44110

$13.36

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

SCREW | MODEL X This part replaces 02112-06358.

02112-06357

$1.78

18

BOLT | MODEL Z This part replaces 01547-06358.

01547-06357

$2.03

19

EMBLEM

68233-44100

Unavailable

20

COVER, ENGINE SPROCKET | MODEL X This part replaces 11361-44100.

11361-44101

Unavailable

20

COVER, ENGINE SPROCKET | MODEL Z

11361-44101

Unavailable

21

GREASE NIPPLE

08351-11009

$7.51

22

PIN

04211-09129

$1.65

23

SCREW | MODEL X This part replaces 02112-06658.

02112-06657

$2.62

23

BOLT | MODEL Z This part replaces 01547-06658.

01547-06657

$2.75

24

6X50 CROSS SCRE | MODEL X This part replaces 02112-06508.

02112-06507

$1.99

24

BOLT | MODEL Z This part replaces 01547-06508.

01547-06507

$2.41

25

SCREW (6X40) | MODEL X This part replaces 02112-06408.

02112-06407

$1.78

25

BOLT | MODEL Z This part replaces 01547-06408.

01547-06407

$2.32

26

COVER, STARTER MOTOR This part replaces 11382-44100.

11382-44111

$32.92

27

SCREW This part replaces 02112-05088.

02112-05087

$1.49

28

CAP, CLUTCH RELEASE

11387-44100

Unavailable

29

SCREW This part replaces 02132-05127.

02122-05127

$1.93

30

SWITCH ASSY,OIL PRESSURE | MODEL X This part replaces 37820-44100.

37820-33D11

$25.13

30

SWITCH ASSY,OIL PRESSURE | MODEL Z This part replaces 37820-34200.

37820-33D11

$25.13
