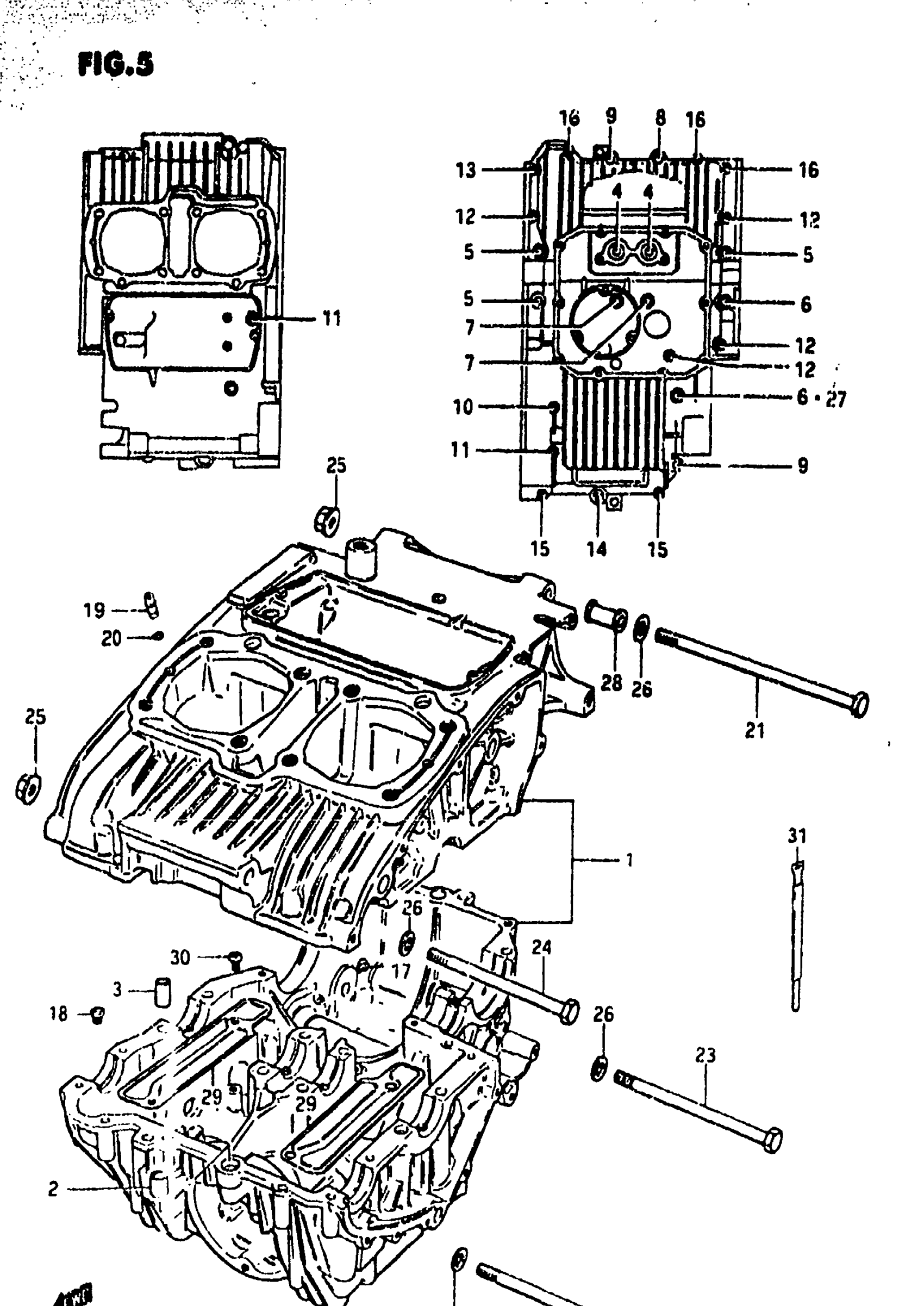

Suzuki GS450T (1982) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 20

11300-44861

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 09106-08014.

07130-0870B

$5.37

5

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

7

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

8

BOLT This part replaces 01517-08658.

01550-08657

$4.68

9

BOLT, MUF SPRT,RR This part replaces 01517-08458.

01550-08457

$4.00

10

BOLT (6X125) This part replaces 09103-06031.

09103-06033

$3.91

11

BOLT (6X105) This part replaces 09103-06025.

09103-06067

$2.48

12

BOLT This part replaces 01517-06908.

01550-06907

$4.60

13

BOLT This part replaces 01517-06708.

01550-06707

$4.30

14

BOLT This part replaces 01517-06658.

01550-06657

$4.17

15

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

16

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

17

JET, OIL GALLERY

09493-28008

Unavailable

18

JET, OIL G. BALANCER SHAFT

09493-32002

$16.57

19

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

20

O RING

09280-03003

$1.91

21

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

Unavailable

22

BOLT (10x210)

09100-10033

Unavailable

23

BOLT This part replaces 09100-10092.

41189-17X00

Unavailable

24

BOLT 10X125 This part replaces 09100-10051.

09100-10274

$7.15

25

NUT This part replaces 08319-31105.

08319-3110A

$2.73

26

WASHER This part replaces 08322-11108.

08322-01107

$2.15

27

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

28

SPACER, ENGINE MOUNTING

11610-44100

Unavailable

29

PLATE, OIL SEPERATOR

11521-44100

$2.92

30

SCREW This part replaces 02112-06088.

02112-06087

$1.49

31

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
