1982 Suzuki GS450T Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1982 Suzuki GS450T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

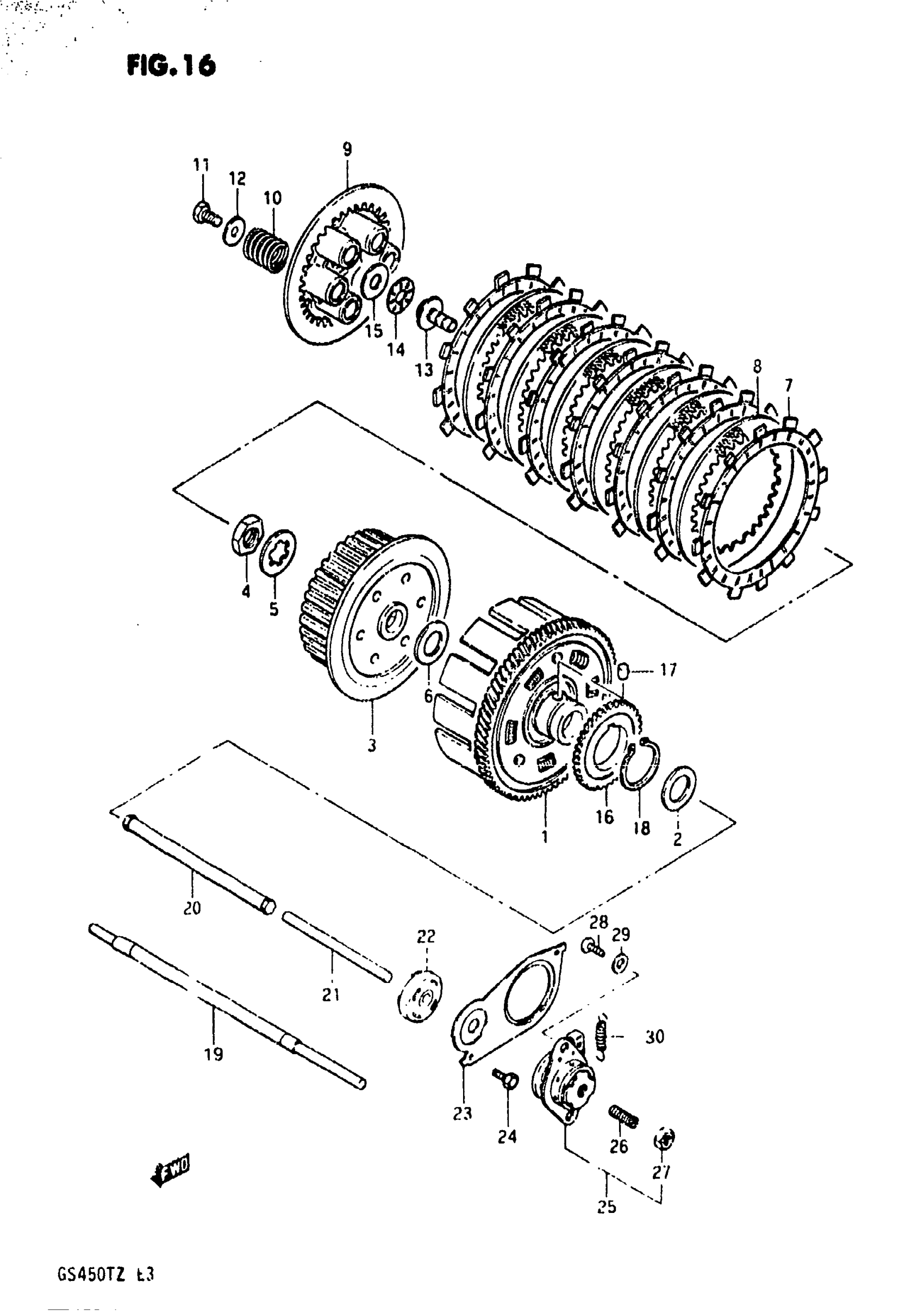

1982 Suzuki GS450T Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:76) This part replaces 21200-44100.

21200-44102

1
Out of stock

2

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

1
Out of stock

3

HUB,CLUTCH SLEEVE This part replaces 21411-44100.

21411-44101

1
Out of stock

4

NUT This part replaces 09140-20002.

09140-20001

1
Out of stock

5

LOCK WASHER This part replaces 09167-20006.

09167-20009

1
Out of stock

6

WASHER

09160-20015

1
Out of stock

7

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

7
Out of stock

8

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

6
Out of stock

9

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

1
Out of stock

10

SPRING This part replaces 09440-19013.

09440-19027

6
Out of stock

11

6

$2.10

In stock

12

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

6
Out of stock

13

PIECE, PUSH

23121-44100

1
Out of stock

14

BEARING

09263-15003

1
Out of stock

15

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

1
Out of stock

16

GEAR, OIL PUMP DRIVE (NT:38)

16321-44001

1
Out of stock

17

PIN

09261-06002

1
Out of stock

18

CLIP This part replaces 08331-31389.

08331-31383

1
Out of stock

19

ROD, PUSH | ~E.NO.162952

23100-44101

—
Out of stock

20

ROD,PUSH,R | E.NO.162953~ This part replaces 23110-44110.

23110-44111

1
Out of stock

21

ROD, PUSH LH | E.NO.162953~ This part replaces 23111-44110.

23111-05A01

1
Out of stock

22

OIL SEAL (6X34X7-10)

09285-06011

1
Out of stock

23

HOLDER, OIL SEAL This part replaces 23117-44101.

23117-44102

1
Out of stock

24

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

25

SCREW ASSY, RELEASE | Includes Item(s) 26 - 27 This part replaces 23200-44100.

23200-44101

1
Out of stock

26

SCREW This part replaces 09134-06001.

09134-06010

1
Out of stock

27

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

28

2

$2.10

In stock

29

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

30

SPRING

09443-08001

1
Out of stock
