1982 Suzuki GS450T Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1982 Suzuki GS450T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

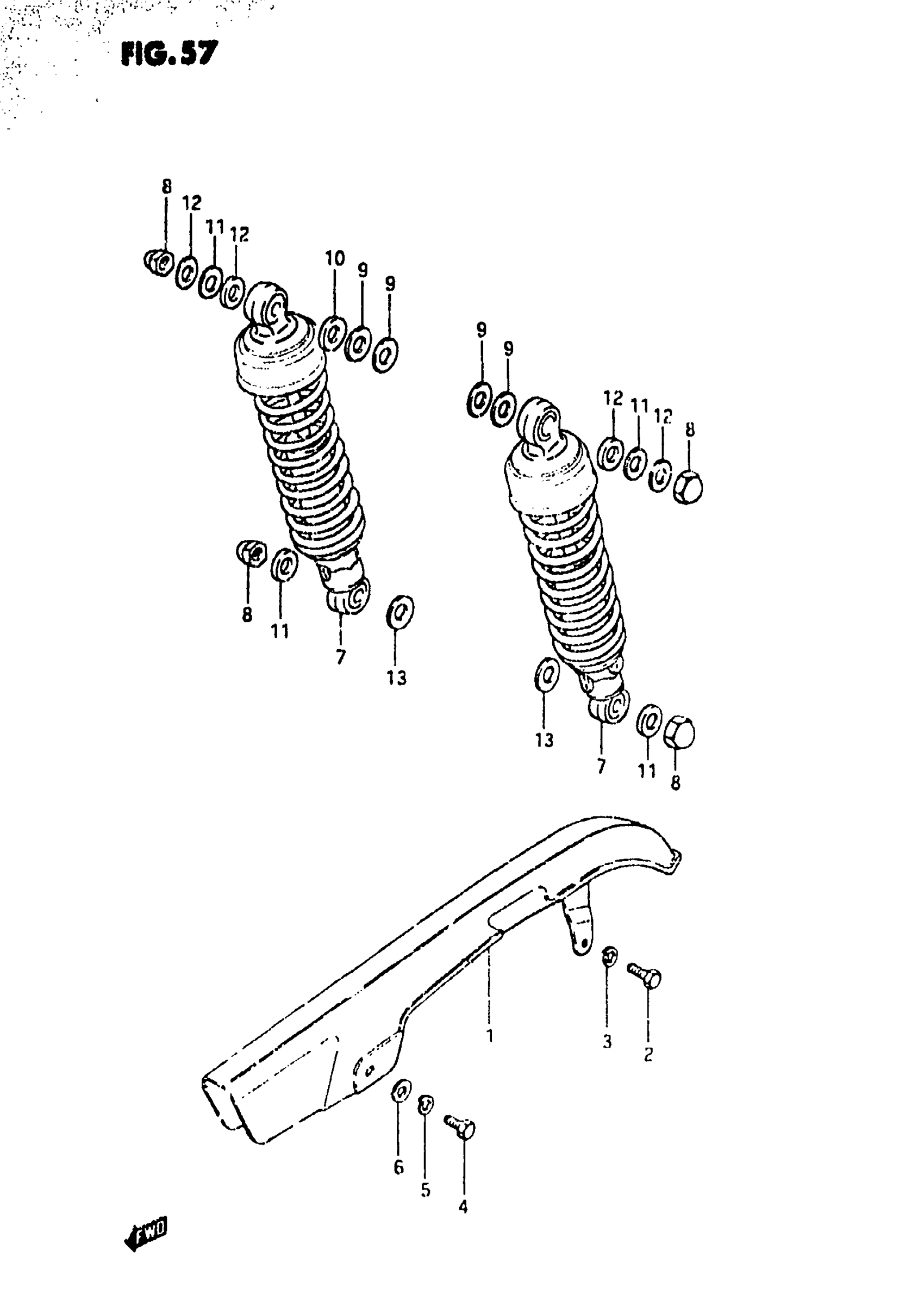

1982 Suzuki GS450T Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE | MODEL X This part replaces 61310-47202.

61310-47203

1
Out of stock

1

CHAIN CASE | MODEL Z

61310-47203

1
Out of stock

2

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

1
Out of stock

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

4

BOLT This part replaces 01107-06108.

01500-06107

1
Out of stock

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

1
Out of stock

6

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

7

ABSORBER ASSY, REAR SHOCK This part replaces 62100-44300.

62100-44910

2
Out of stock

8

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

9

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

10

WASHER, FRONT AXLE | MODEL X This part replaces 09160-12012.

09160-12082

1
Out of stock

11

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

4
Out of stock

12

WASHER This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

13

WASHER This part replaces 09160-12004.

09160-12088

2
Out of stock
