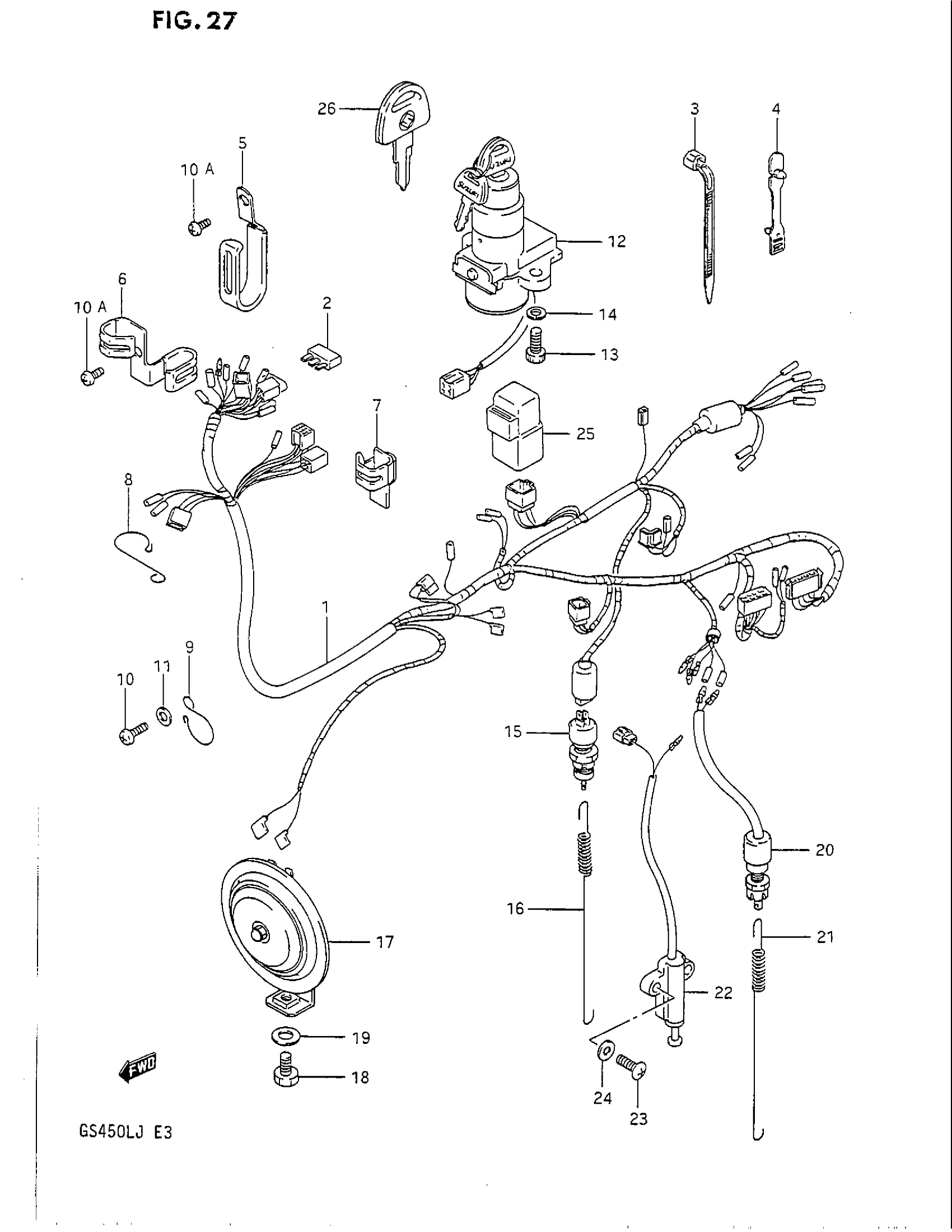

Suzuki GS450L (1988) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 36610-44720.

36610-44X50

Unavailable

1

HARNESS, WIRING | MODEL H/J; Includes Item(s) 2

36610-44750

Unavailable

2

.DIODE | MODEL H/J This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP

09407-14403

$2.26

4

CLAMP

09407-05403

$2.38

5

CLAMP, UPPER

36651-34400

Unavailable

6

CLAMP, RH

36651-34410

Unavailable

7

CLAMP, LH

36651-34420

Unavailable

8

CLIP

36619-44401

Unavailable

9

CLIP

36619-44002

Unavailable

10

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

10A

SCREW This part replaces 02112-05066.

02112-0506B

$1.84

11

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

12

SWITCH ASSY, IGNITION | MODEL F/G/H This part replaces 37100-31301.

37100-30B20

Unavailable

12

SWITCH ASSY, IGNITION | MODEL J; Includes Item(s) 13 - 14

37100-30B20

Unavailable

13

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

SWITCH, REAR BRAKE LAMP

37740-24A00

$18.20

16

SPRING This part replaces 09443-06035.

09443-06035-XC0

Unavailable

17

HORN

38500-44410

Unavailable

18

BOLT This part replaces 01107-08125.

01500-0812A

$2.28

19

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

20

SWITCH, SIDE STAND WARNING | MODEL F/G

37840-34500

Unavailable

21

SPRING | MODEL F/G This part replaces 09443-06030.

09443-06048-XC0

Unavailable

22

SWITCH ASSY,SID | MODEL H This part replaces 37840-44A00.

37840-44X52

$57.00

22

SWITCH ASSY,SID | MODEL J This part replaces 37840-44A10.

37840-44X52

$57.00

23

SCREW | MODEL H/J This part replaces 02112-06205.

02112-0620A

$1.49

24

.WASHER | MODEL H/J This part replaces 08322-21064.

08322-0106B

$2.26

25

RELAY ASSY, SIDE STAND | MODEL H/J This part replaces 38740-24B10.

38740-24X50

$45.20

26

KEY, BLANK | OPT

37146-47010

$18.39
