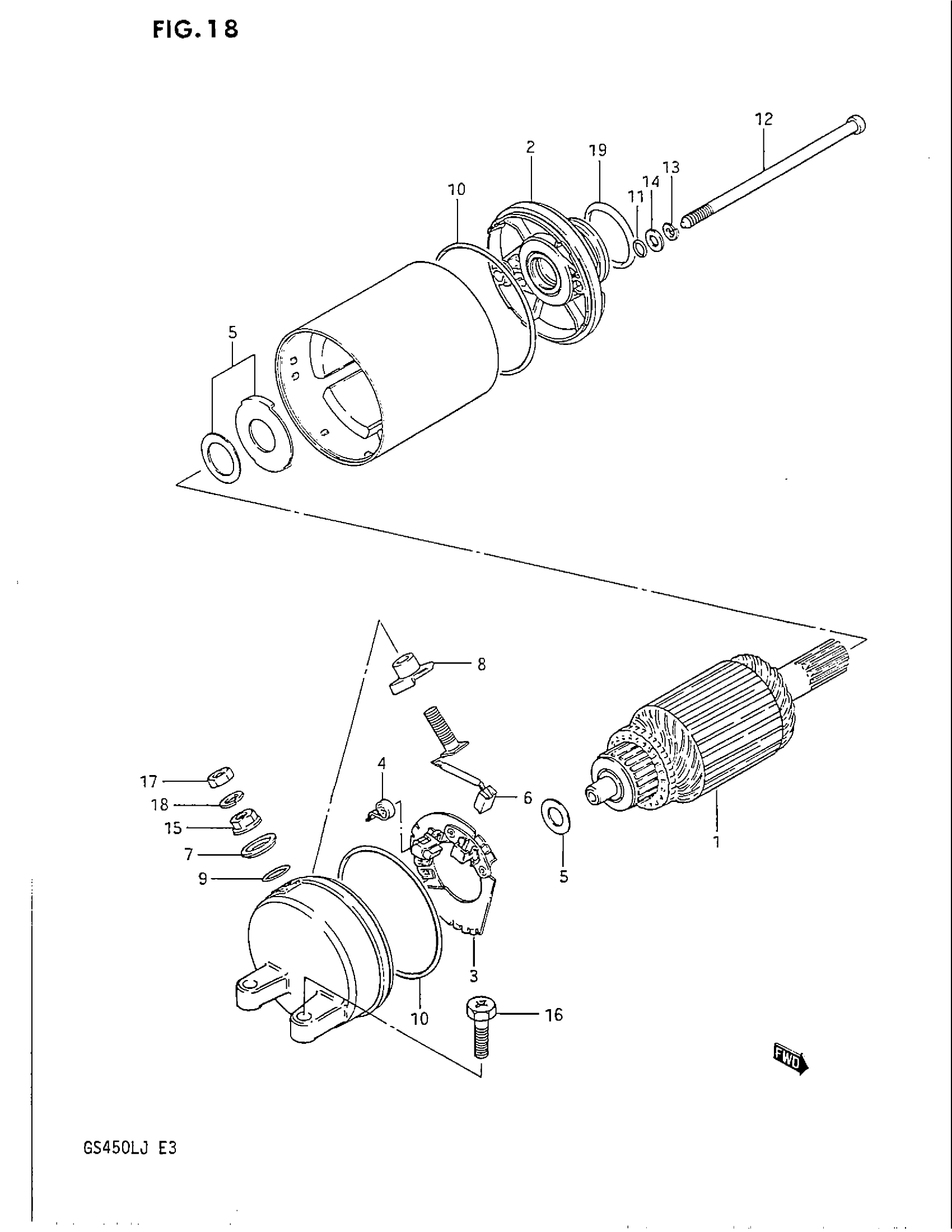

Suzuki GS450L (1988) STARTING MOTOR Diagram

#

Description
Price

MOTOR ASSY,STAR | Includes Item(s) 1 - 15 This part replaces 31100-43401.

31100-30B00-H17

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 31310-43400.

31310-43401-H17

Unavailable

2

BRACKET SET

31150-43400

Unavailable

3

BRUSH HOLDER ASSY This part replaces 31132-44110.

31132-27A01

$73.55

4

SPRING. BRUSH

31135-65010

$4.52

5

SHIM SET

31170-43400

Unavailable

6

BRUSH (+)

31130-38300

$18.43

7

BUSHING (A)

31172-38300

$6.55

8

BUSHING (B)

31171-38300

$8.93

9

O RING

31143-38300

$5.10

10

O RING

31264-44110

$11.87

11

O RING

31156-38300

$4.52

12

BOLT This part replaces 31281-05300.

31281-88C00

Unavailable

13

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

14

WASHER

31161-38300

Unavailable

15

NUT This part replaces 09159-06017.

08319-31067

$2.03

16

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

17

NUT This part replaces 08310-11066.

08310-0006A

$1.84

18

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

19

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
