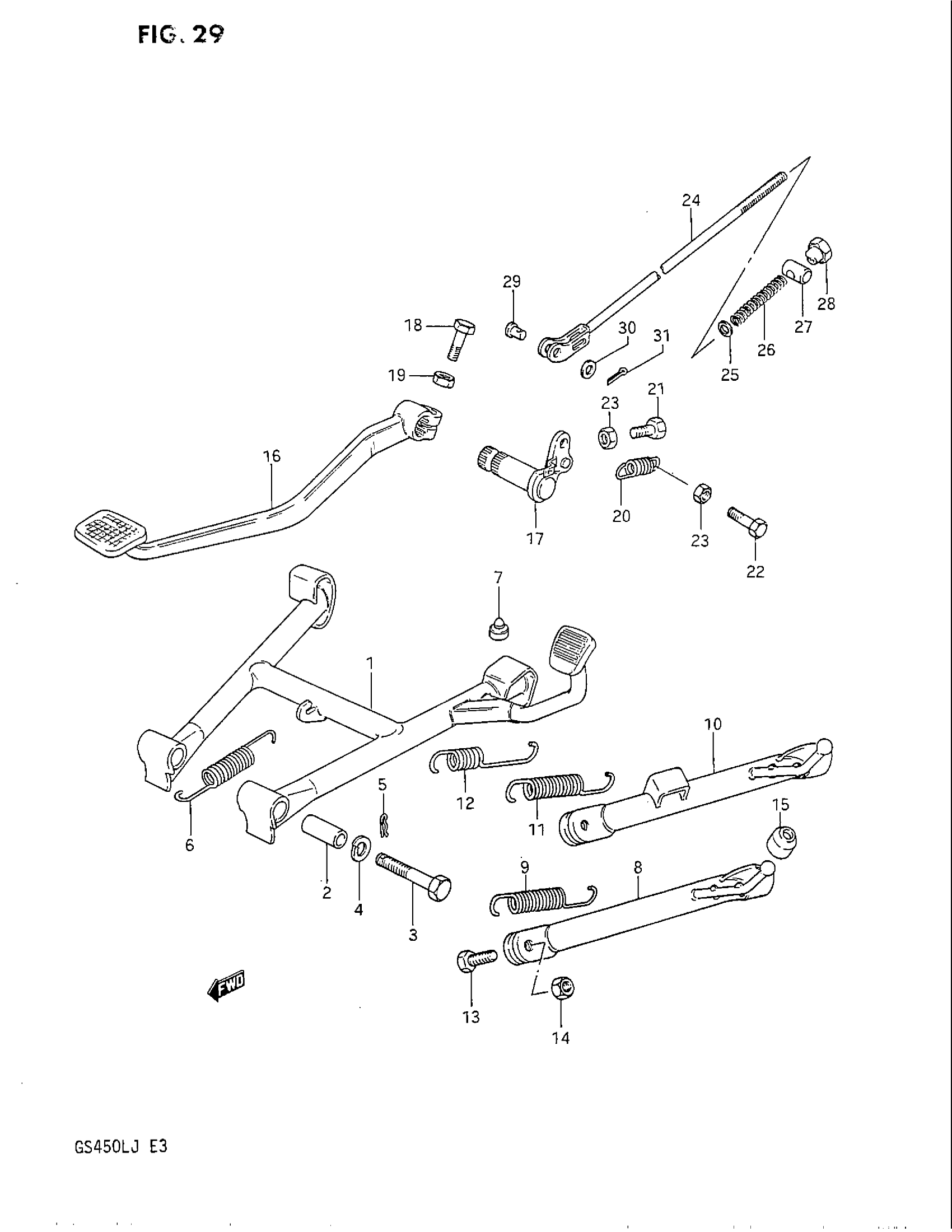

Suzuki GS450L (1988) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER

42100-44700

Unavailable

2

SPACER

09180-10040

$2.56

3

BOLT This part replaces 09101-10034.

09117-10029

Unavailable

4

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING, CENTER This part replaces 09443-18006.

09443-18006-XC0

$7.82

7

CUSHION

09321-10001

$2.61

8

STAND, PROP | MODEL F/G

42310-44900

Unavailable

9

SPRING | MODEL F/G

09443-14028

Unavailable

10

STAND, PROP | MODEL H/J

42310-44921

Unavailable

11

SPRING, INNER | MODEL H/J

09443-15037

Unavailable

12

SPRING, OUTER | MODEL H/J

09443-23001

Unavailable

13

BOLT | MODEL F/G

09100-10067

$2.61

13

BOLT | MODEL H/J This part replaces 09111-10019.

09111-10047

$4.11

14

NUT This part replaces 08310-22106.

08310-0010A

$1.84

15

CUSHION

09320-07001

$2.92

16

PEDAL, BRAKE

43110-44900

Unavailable

17

ARM, BRAKE PEDAL ROD

43120-11501

Unavailable

18

BOLT This part replaces 01107-08258.

01500-08257

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

SPRING This part replaces 09443-14020.

09443-14015

$2.89

21

BOLT This part replaces 01107-06207.

01500-06207

$2.28

22

BOLT This part replaces 01107-06257.

01500-06257

$1.97

23

.NUT This part replaces 08310-11067.

08310-00067

$2.13

24

ROD ASSY, REAR BRAKE | MODEL F

43300-44401

Unavailable

24

ROD ASSY, REAR BRAKE | MODEL G/H/J; Includes Item(s) 25 - 31 This part replaces 43300-44900.

43300-44401

Unavailable

25

WASHER This part replaces 08322-21067.

08322-01067

$2.13

26

SPRING

09440-09004

$2.20

27

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

28

.NUT This part replaces 09150-06009.

09150-06010

$3.10

29

PIN

09200-06013

$2.00

30

WASHER This part replaces 08322-21067.

08322-01067

$2.13

31

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
