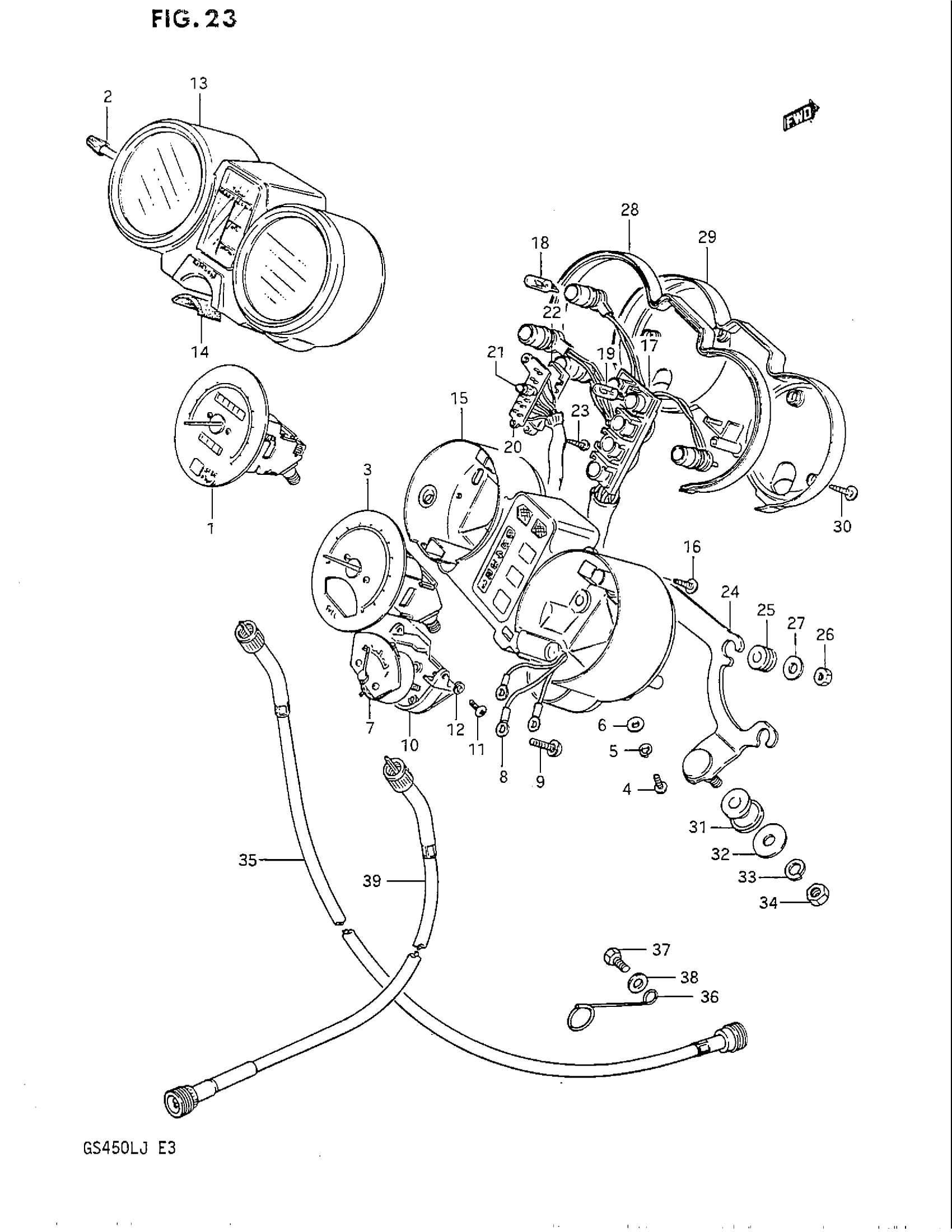

Suzuki GS450L (1988) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL F/G

34120-44930

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL H/J This part replaces 34120-44940.

34120-44930

Unavailable

2

KNOB

34980-45020

$3.77

3

TACHOMETER | MODEL F/G This part replaces 34220-44930.

34220-44910

Unavailable

3

TACHOMETER | MODEL H/J

34220-44910

Unavailable

4

SCREW This part replaces 02112-04108.

02112-04107

$1.55

5

WASHER This part replaces 08322-21047.

08322-01047

$1.86

6

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

7

FUELMETER

34320-44911

Unavailable

8

LEAD WIRE, FUELMETER

34378-44911

Unavailable

9

SCREW

34383-09400

Unavailable

10

BRACKET, FUELMETER

34350-44910

Unavailable

11

SCREW This part replaces 02112-03108.

02112-03107

$1.49

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

HOOD, METER

34150-44910

Unavailable

14

SEAL

34993-47000

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 34111-44930.

34111-44900

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 34111-44910.

34111-44900

Unavailable

16

SCREW

02142-04127

$1.57

17

SOCKET | MODEL F/G

36321-44930

Unavailable

17

SOCKET | MODEL H/J

36321-44940

Unavailable

18

BULB (12V,3.4W) | MODEL F/GMODEL H/J

09471-12028

$1.99

19

BULB (12V,1.7W)

09471-12077

$3.55

20

SOCKET, GEAR INDICATOR

36453-44910

Unavailable

21

BULB

09471-12078

Unavailable

22

COVER, GEAR INDICATOR

36454-44910

Unavailable

23

SCREW

03211-03166

Unavailable

24

BRACKET, METER

34950-44910

Unavailable

25

CUSHION, METER NO.1 This part replaces 34189-44910.

34189-32B00

$5.78

26

NUT This part replaces 08310-11058.

08310-00057

$1.84

27

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

28

RING, COVER

34961-44910

Unavailable

29

COVER, LOWER

34193-44910

Unavailable

30

SCREW

02142-04127

$1.57

31

CUSHION

34956-31001

$4.37

32

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

33

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

34

NUT This part replaces 08310-11085.

08310-0008A

$1.84

35

CABLE ASSY,SPEE This part replaces 34910-44900.

34910-45124

Unavailable

36

GUIDE, METER CABLE

34938-45100

$6.57

37

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

38

WASHER This part replaces 08322-21067.

08322-01067

$2.13

39

CABLE ASSY,TACH This part replaces 34940-44111.

34940-05312

$40.40
