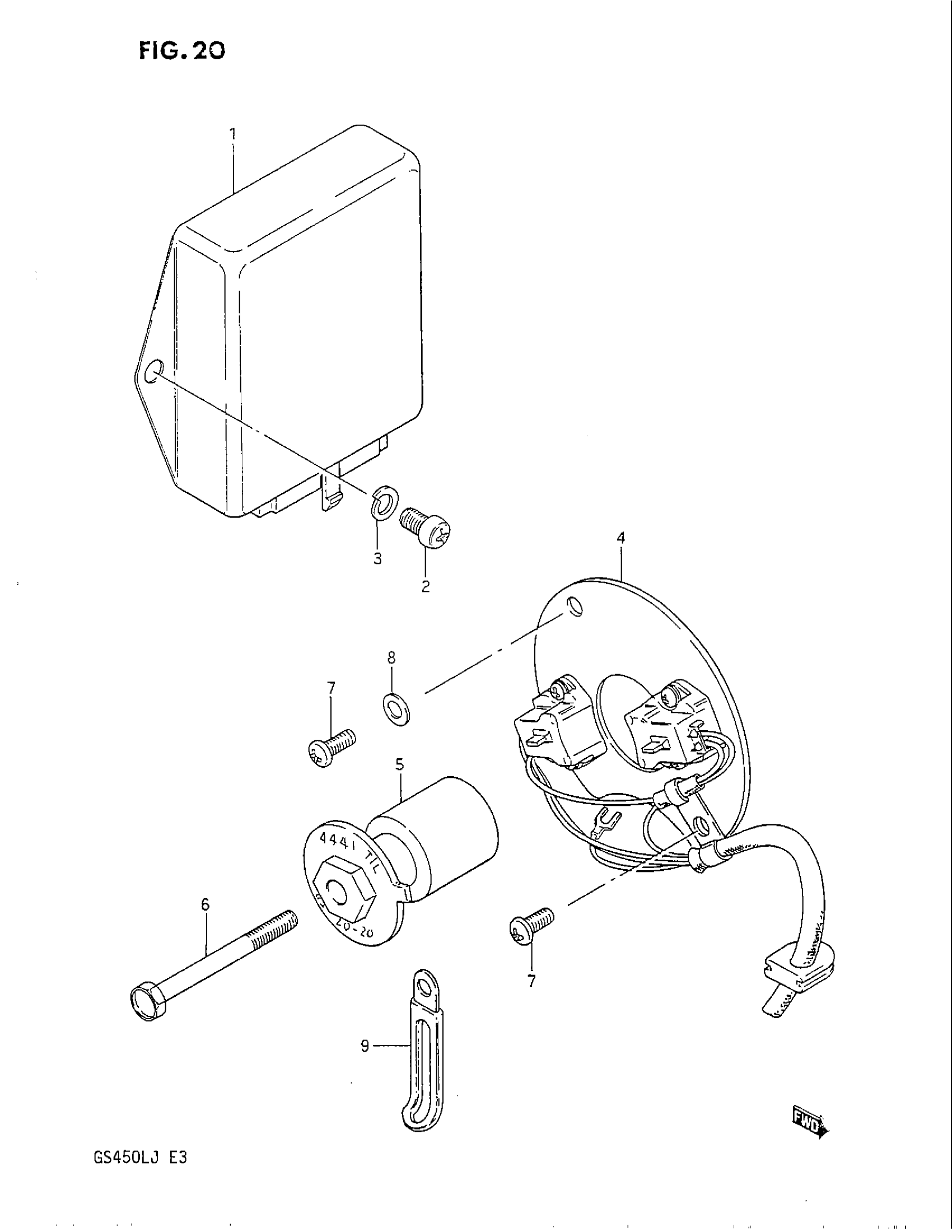

Suzuki GS450L (1988) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITION UNIT

32900-44420

Unavailable

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

SIGNAL GENERATOR ASSY

33110-44420

$313.73

5

ROTOR, SIGNAL

33120-44420

Unavailable

6

BOLT (6X60) This part replaces 01107-06608.

09103-06064

$2.12

7

SCREW

09125-05024

$1.72

8

WASHER This part replaces 09160-05028.

08322-01057

$2.13

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
