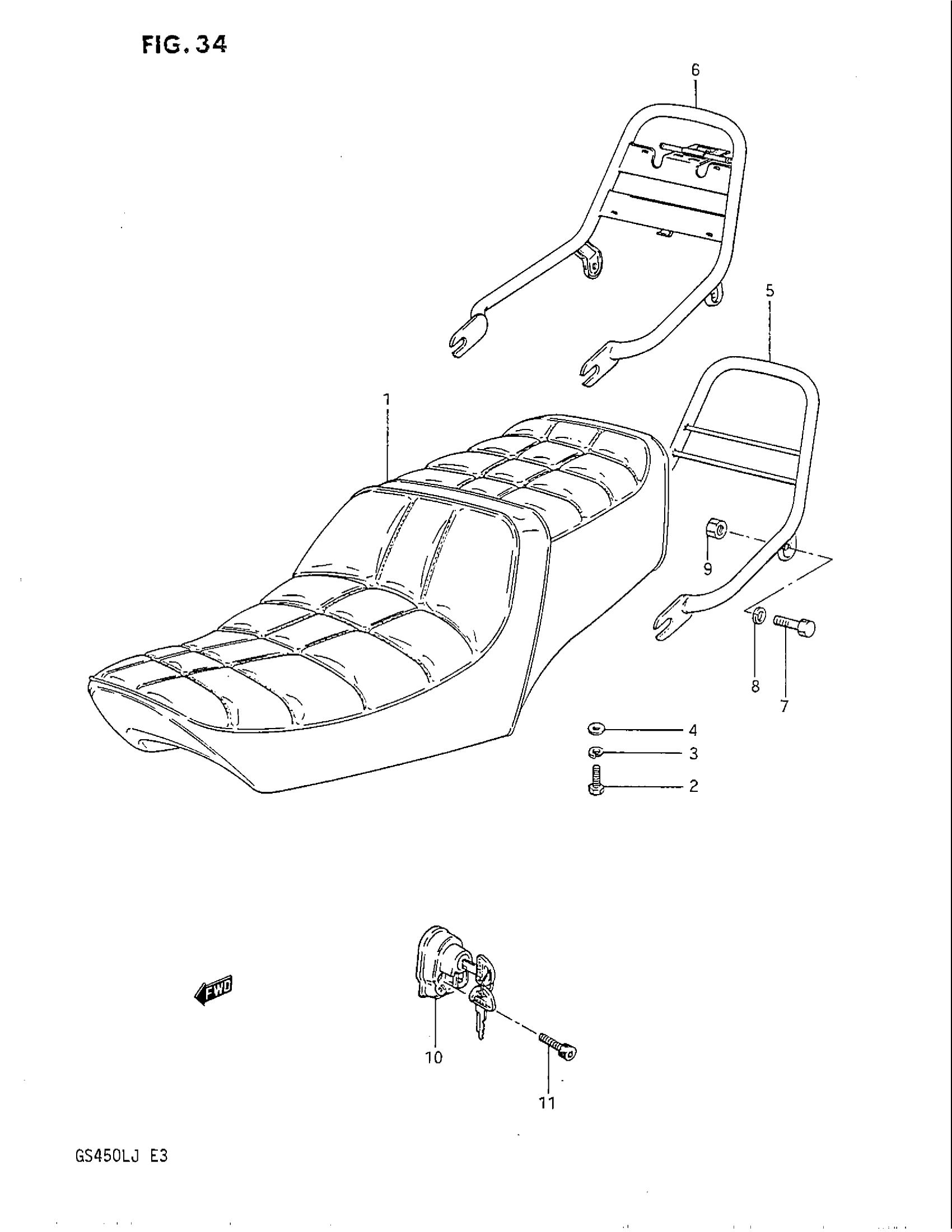

Suzuki GS450L (1988) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | MODEL F/G/H This part replaces 45100-44910-59N.

45100-44900-59N

Unavailable

1

SEAT ASSY (BLACK) | MODEL J

45100-44900-59N

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

4

WASHER This part replaces 08322-21067.

08322-01067

$2.13

5

HANDLE, PILLION RIDER | MODEL F/G/HOTHER THAN CALIFORNIA

46210-44910

Unavailable

6

(CA)HANDLE, PILLION RIDER | MODEL F/G/HCALIFORNIA ONLYMODEL J

46210-44920

Unavailable

7

BOLT

01204-08657

Unavailable

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

NUT This part replaces 08310-12088.

08310-00087

$2.13

10

LOCK ASSY, HELMET

95700-34210

Unavailable

11

BOLT This part replaces 07110-05258.

07130-0525B

$2.52
