1988 Suzuki GS450L Right Handle Switch Diagram

← All diagrams

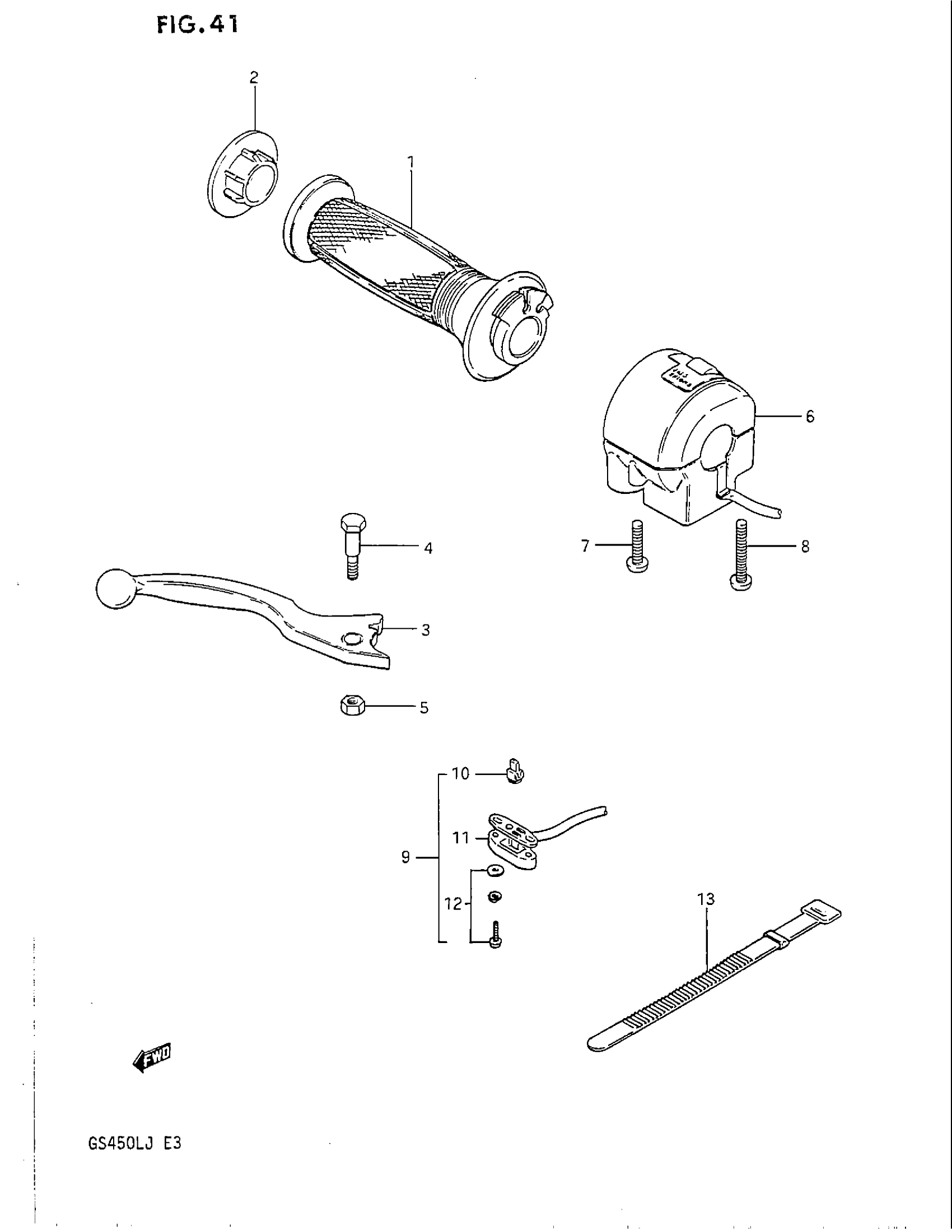

Find the part on the Right Handle Switch diagram for your 1988 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GS450L Right Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE This part replaces 57110-15500.

57110-49501

1
Out of stock

2

CAP, GRIP END

57216-49100

1
Out of stock

3

LEVER, BRAKE

57420-49101

1
Out of stock

4

BOLT

57431-49100

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

SWITCH ASSY, HANDLE RH | Includes Item(s) 7 - 8

37200-34230

1
Out of stock

7

SCREW

09125-05066

1
Out of stock

8

SCREW This part replaces 02112-05355.

02112-0535B

1
Out of stock

9

SWITCH ASSY, ST | Includes Item(s) 10 - 12 This part replaces 57460-49300.

57460-45500

1
Out of stock

10

HOLDER, CONTACT

57465-18601

1
Out of stock

11

COVER

57481-33010

1
Out of stock

12

SCREW This part replaces 09125-03105.

09125-03105-XC0

2
Out of stock

13

BAND (L:120)

09407-12402

2
Out of stock
