1988 Suzuki GS450L Battery Diagram

← All diagrams

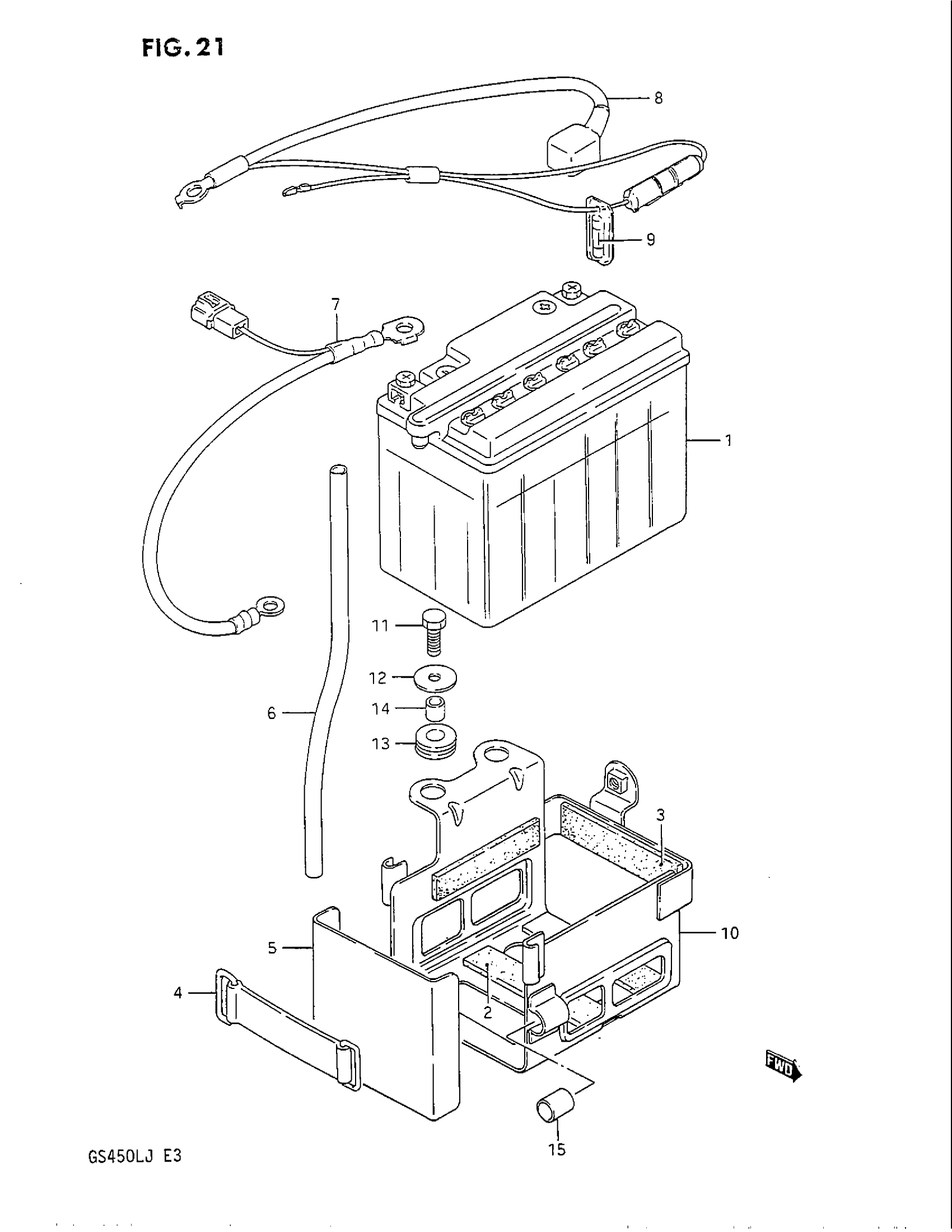

Find the part on the Battery diagram for your 1988 Suzuki GS450L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GS450L Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 33610-11600.

33610-11010

1
Out of stock

2

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

2
Out of stock

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

3
Out of stock

4

BAND

09462-00008

1

$4.71

In stock

5

COVER, BATTERY

33661-44101

1
Out of stock

6

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

1
Out of stock

7

WIRE, BATT (-) This part replaces 33860-44500.

33860-44501

1
Out of stock

8

LEAD WIRE, (+) | Includes Item(s) 9

36740-44501

1
Out of stock

9

FUSE (15A)

09481-15001

1
Out of stock

10

HOLDER, BATTERY

41540-11500

1
Out of stock

11

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

2
Out of stock

12

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

2
Out of stock

13

2

$2.23

In stock

14

SPACER

09180-06103

2
Out of stock

15

CUSHION

09329-05006

1
Out of stock
