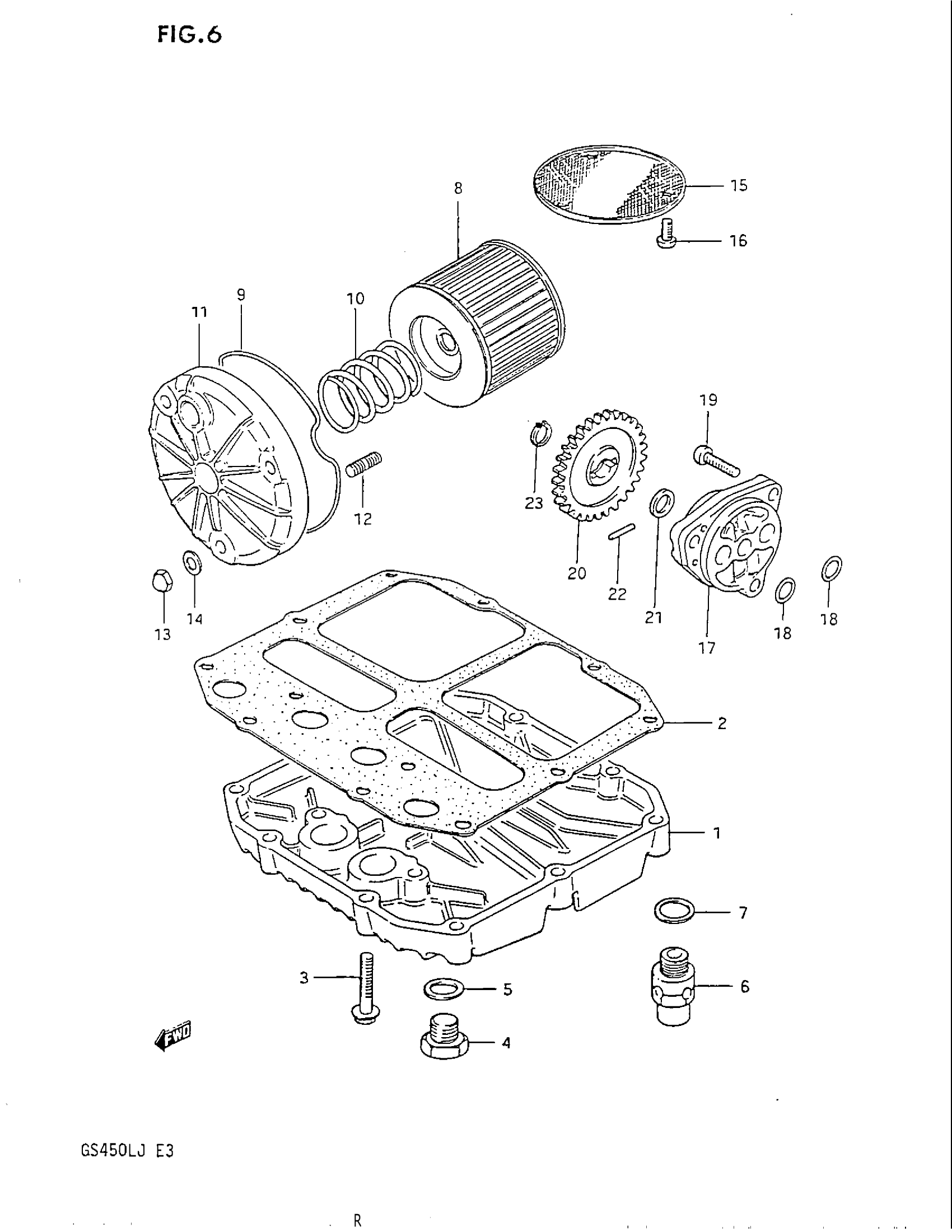

Suzuki GS450L (1988) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-44110.

11511-44100

$102.17

2

GASKET, OIL PAN This part replaces 11489-44101.

11489-44110

$10.28

3

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET

09168-14004

$1.83

6

VALVE ASSY, OIL RELIEF This part replaces 16440-33300.

16440-11D00

$59.07

7

WASHER

08212-14181

Unavailable

8

FILTER, ENGINE OIL

16510-45040

$5.96

9

O RING

16518-45000

$5.70

10

SPRING

09440-32004

$2.92

11

CAP, ENGINE OIL FILTER This part replaces 16512-44410.

16512-45D00

$56.93

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

13

NUT This part replaces 08313-11065.

08313-1006A

$1.84

14

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

15

STRAINER, ENGINE OIL

16520-45010

Unavailable

16

SCREW This part replaces 02112-06128.

02112-06127

$1.84

17

PUMP ASSY, ENGINE OIL

16400-44100

$198.45

18

O RING

09280-13004

$2.17

19

SCREW This part replaces 02112-06258.

02112-06257

$1.78

20

GEAR, DRIVEN (NT:29)

16331-44000

Unavailable

21

WASHER

08221-10185

$2.15

22

PIN

09261-04009

$1.56

23

CIRCLIP

08331-31109

$1.78
