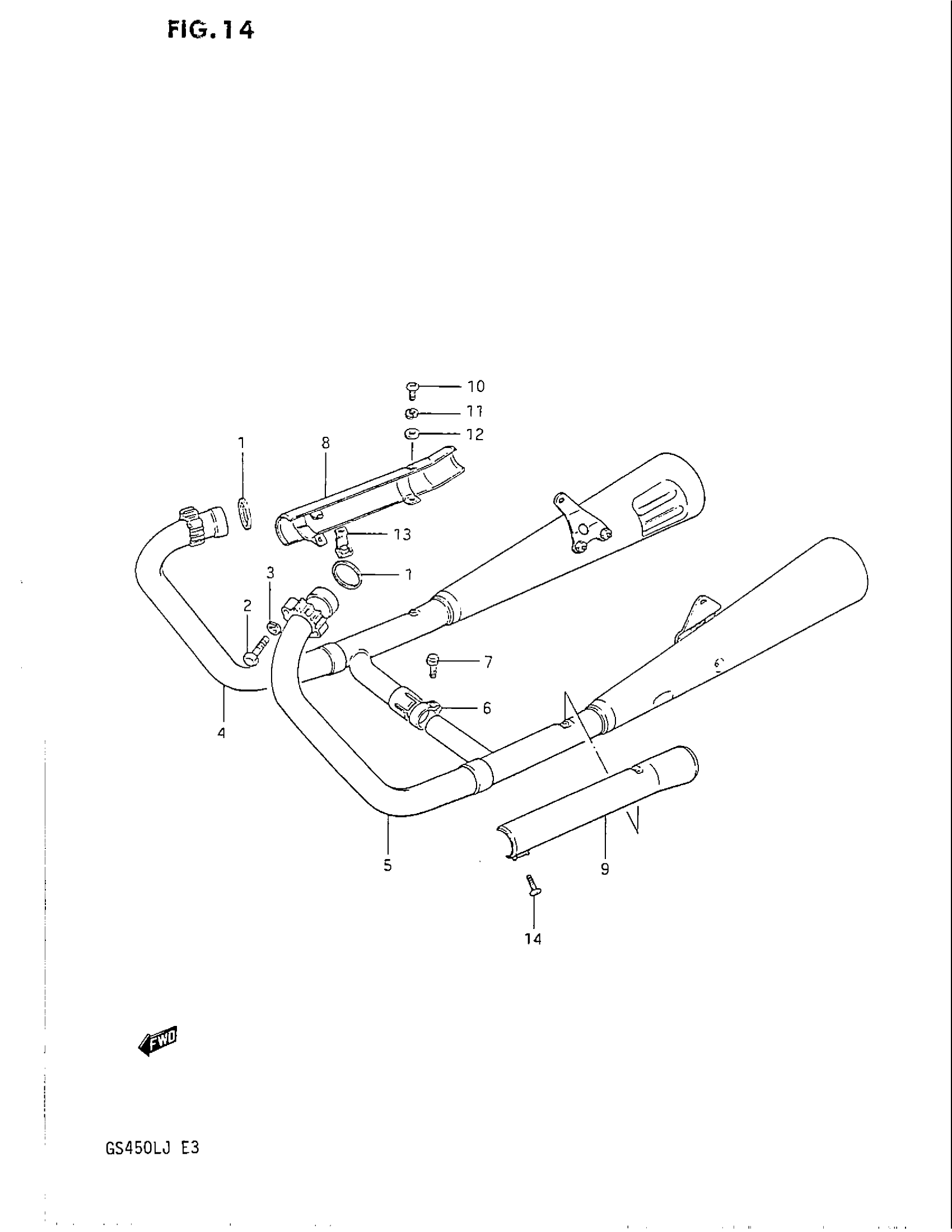

Suzuki GS450L (1988) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

2

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 14301-44910-H01.

14301-44912-H01

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL G/H/J This part replaces 14301-44911-H01.

14301-44912-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 14302-44910-H01.

14302-44912-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL G/H/J This part replaces 14302-44911-H01.

14302-44912-H01

Unavailable

6

CLAMP

09402-35601

Unavailable

7

BOLT This part replaces 01517-06258.

01550-06257

$2.30

8

COVER, MUFFLER RH

14780-44900

Unavailable

9

COVER, MUFFLER LH

14790-44900

Unavailable

10

SCREW

02112-06087

$1.49

11

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

12

WASHER This part replaces 08322-21067.

08322-01067

$2.13

13

CLAMP

14785-44100

Unavailable

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97
