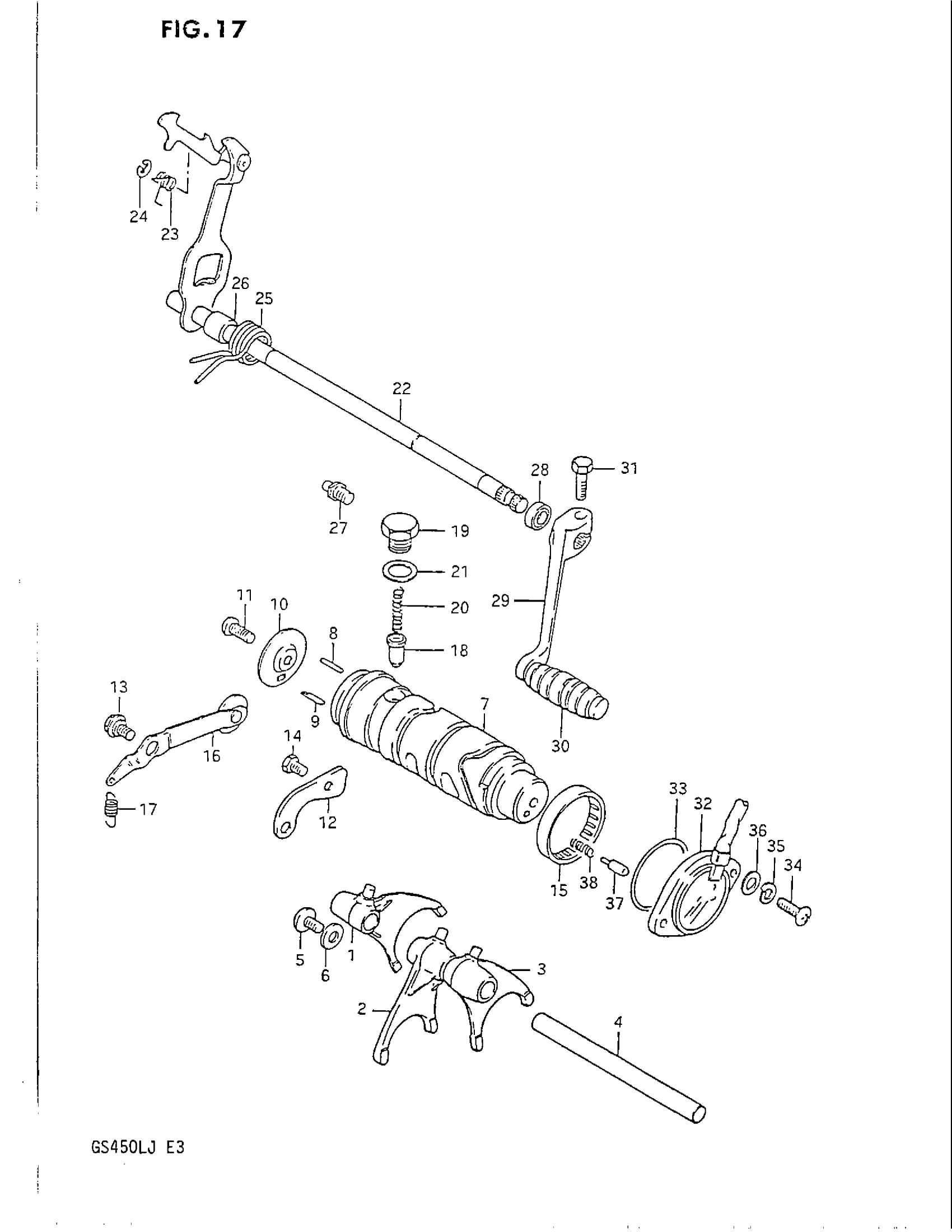

Suzuki GS450L (1988) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-44000

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31301.

25411-18900

$23.07

5

SCREW

02142-06108

$2.45

6

WASHER

08211-06141

$1.59

7

CAM, GEAR SHIFTING

25311-47001

Unavailable

8

PIN

09261-04001

$1.72

9

PIN

09209-04013

Unavailable

10

HOLDER, DRIVE PIN

25322-44000

Unavailable

11

SCREW

02112-06167

$1.49

12

GUIDE, CAM

25341-33300

Unavailable

13

BOLT This part replaces 09111-06019.

09111-06054

$3.70

14

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

15

BEARING (40X47X12)

09263-40001

$29.53

16

STOPPER, CAM NO.1

25350-44000

Unavailable

17

SPRING

09443-09007

$2.56

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, SPRING

25354-30010

Unavailable

20

SPRING

09440-06020

$1.79

21

GASKET

09168-14004

$1.83

22

SHAFT, GEAR SHIFTING

25510-44100

Unavailable

23

SPRING

09448-13008

$3.74

24

E RING This part replaces 08332-11078.

08332-1107A

$1.78

25

SPRING This part replaces 09444-26012.

09444-26013

$3.10

26

SPACER (12X20X15.3)

09180-12068

$3.16

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

29

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 30

25600-44000

Unavailable

30

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

31

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

32

BODY, SWITCH | MODEL F/G This part replaces 37720-33200.

37720-45100

$101.35

32

BODY, SWITCH | MODEL H/J

37720-44700

$91.95

33

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

34

SCREW This part replaces 02112-05206.

02112-0520B

$1.84

35

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

36

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

37

CONTACT

09209-05011

$2.20

38

SPRING

09440-04010

$1.54
