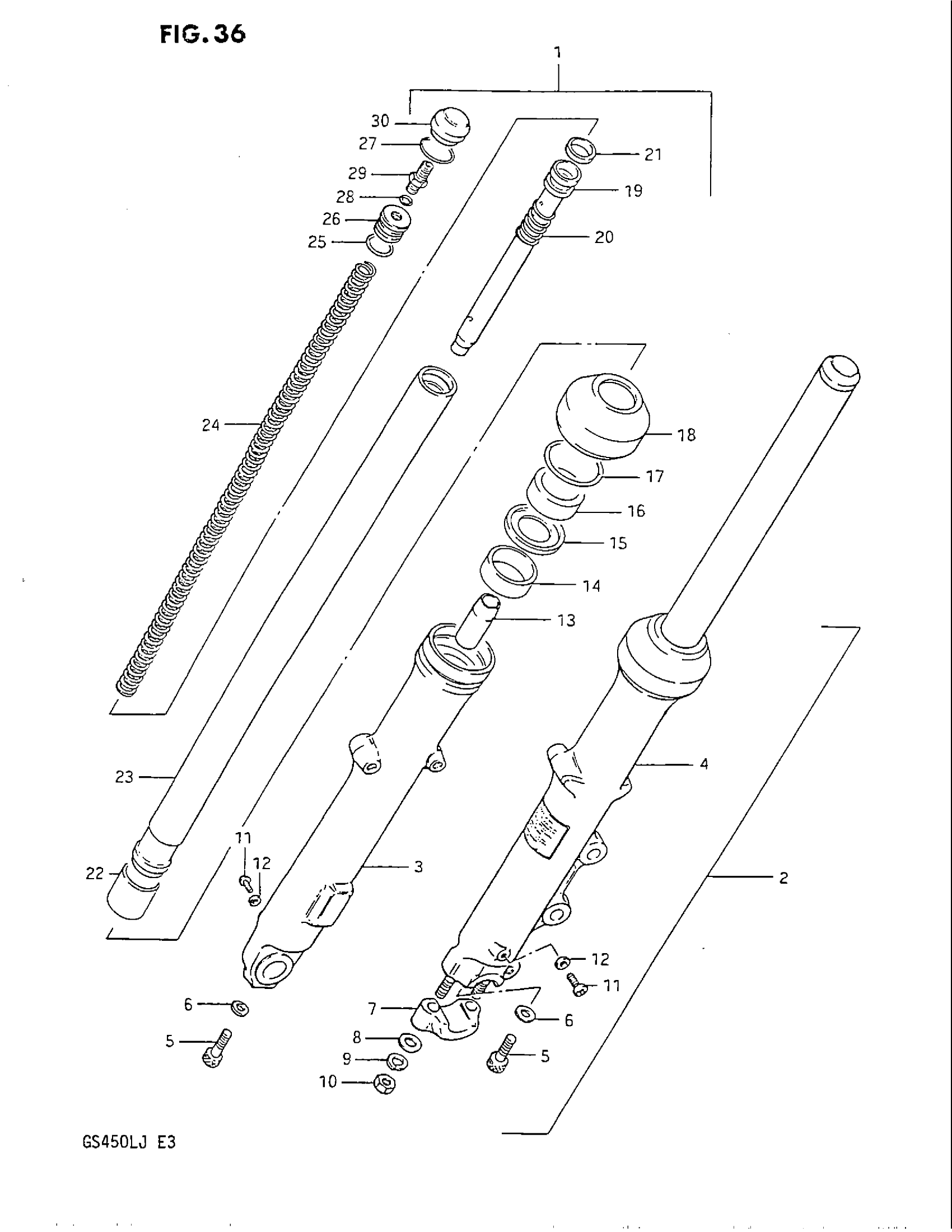

Suzuki GS450L (1988) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-44900

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 30

51104-44900

Unavailable

3

TUBE, OUTER RH

51130-47420

Unavailable

4

TUBE, OUTER LH

51140-34200

Unavailable

5

BOLT

51147-48130

$4.34

6

GASKET

51148-36011

$3.56

7

HOLDER, AXLE LH

51132-31030

Unavailable

8

WASHER This part replaces 08322-21088.

08322-01087

$2.13

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

11

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

12

GASKET

51183-31030

$3.77

13

PIECE, OIL LOCK

51195-45030

Unavailable

14

BUSH, GUIDE

51152-45400

$15.10

15

SPACER, SEAL This part replaces 51168-01A30.

51168-30B00

$6.31

16

SEAL, OIL This part replaces 51153-20520.

51153-19D10

$22.96

17

RING, STOPPER This part replaces 51156-45440.

51156-01A00

$4.34

18

DUST SEAL

51571-20520

Unavailable

19

CYLINDER

51146-44900

Unavailable

20

SPRING

51177-20500

Unavailable

21

RING, PISTON

51196-45200

$8.42

22

METAL, SLIDE

51121-45400

Unavailable

23

TUBE, INNER

51110-44900

Unavailable

24

SPRING

51171-44900

Unavailable

25

O RING

51181-31030

$4.37

26

SEAT, SPRING

51172-34420

Unavailable

27

RING, STOPPER

51169-47400

$2.90

28

.O RING (D:1.9,ID:5.7) This part replaces 51117-45400.

09280-06005

$1.49

29

AIR, VALVE

51293-45440

Unavailable

30

CAP

51189-34420

Unavailable
