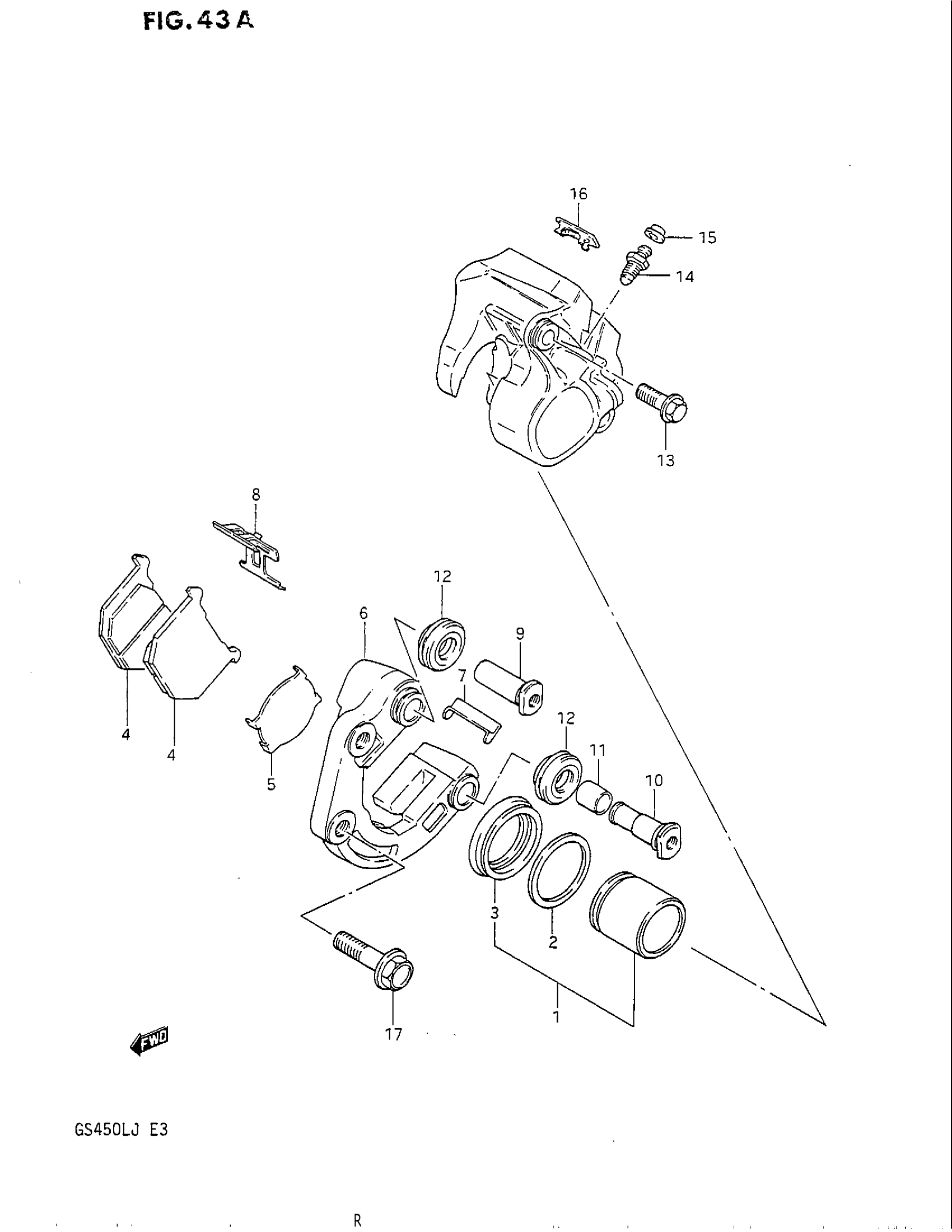

Suzuki GS450L (1988) FRONT CALIPERS (MODEL J) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 16 This part replaces 59300-45260.

59300-45290

Unavailable

1

PISTON SET

59301-45830

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

3

BOOT, PISTON

59308-45250

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 59330-45260.

59300-38810

Unavailable

5

SHIM, PAD

59371-45200

Unavailable

6

HOLDER, CALIPERS LH

59301-45841

Unavailable

7

GUIDE, PAD

59316-45201

$5.15

8

SPRING, PAD

59315-45200

$12.32

9

AXLE, CALIPERS NO.1

59305-45200

Unavailable

10

AXLE, CALIPERS NO.2

59306-45200

Unavailable

11

BUSH

59313-45200

$7.95

12

BOOT, AXLE

59312-45200

$8.79

13

BOLT

59314-45201

$5.55

14

BLEEDER

59121-18410

$8.73

15

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

16

COVER

59324-45201

Unavailable

17

BOLT

09103-10019

$2.63
