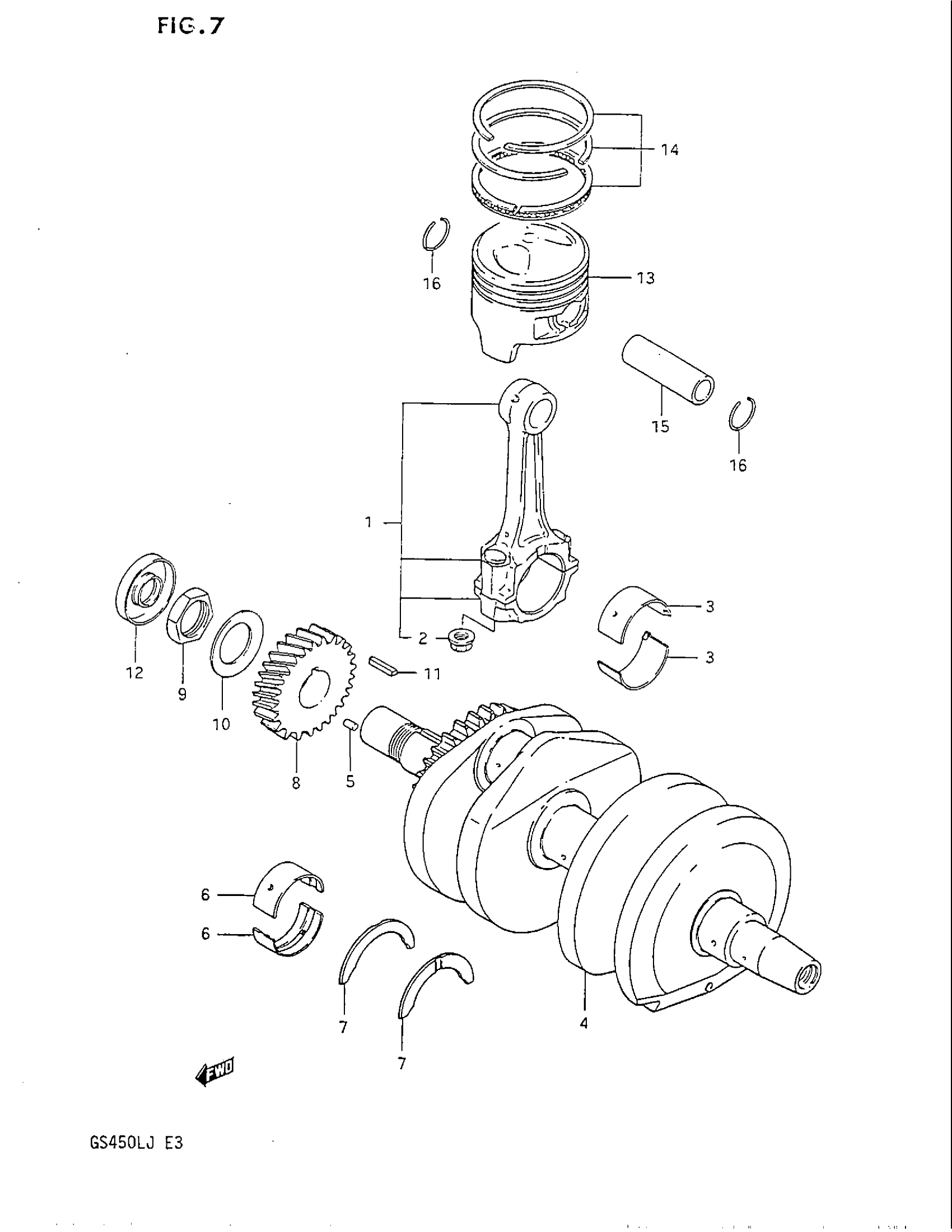

Suzuki GS450L (1988) CRANKSHAFT Diagram

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

$163.57

NUT

09159-08033

$3.50

BEARING, CRANK PIN (GREEN) This part replaces 12164-44110-010.

12164-01D01-0A0

$17.65

BEARING, CRANK PIN (BLACK) This part replaces 12164-44110-020.

12164-01D01-0B0

$17.65

BEARING, CRANK PIN (BROWN) This part replaces 12164-44110-030.

12164-01D01-0C0

$17.32

BEARING, CRANK PIN (YELLOW) This part replaces 12164-44110-040.

12164-01D01-0D0

$17.65

BEARING, CRANK PIN (US:0.25) | OPT

12164-44100-025

$15.98

BEARING, CRANK PIN (US:0.5) | OPT

12164-44100-050

Unavailable

CRANKSHAFT | Includes Item(s) 5 This part replaces 12220-44102.

12220-01D02

Unavailable

PIN This part replaces 06211-03052.

04221-03059

$1.72

BEARING (GREEN) This part replaces 12229-44100-010.

12229-01D01-0A0

$10.87

BEARING (BLACK) This part replaces 12229-44100-020.

12229-01D01-0B0

$10.87

BEARING (BROWN) This part replaces 12229-44100-030.

12229-01D01-0C0

$12.78

BEARING (YELLOW) This part replaces 12229-44100-040.

12229-01D01-0D0

$12.78

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

Unavailable

BEARING, CRANKSHAFT (US:0.5) | OPT

12229-44100-050

Unavailable

BEARING, THRUST

12228-44106

$10.07

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

Unavailable

NUT

09140-24007

$3.89

WASHER

09164-25001

Unavailable

KEY

08341-31059

$2.48

OIL SEAL, RH

09283-22015

$9.72

PISTON (STD)

12111-44100

Unavailable

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-050.

12103-44810-050

Unavailable

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44100-100.

12103-44810-100

Unavailable

RING SET, PISTON (STD)

12140-44110

Unavailable

RING SET, PISTON (OS:0.5) | OPT

12140-44110-050

Unavailable

RING SET, PISTON (OS:1.0) | OPT

12140-44111-100

Unavailable

PIN, PISTON

12151-45501

$17.37

CIRCLIP

09381-18002

$1.67
