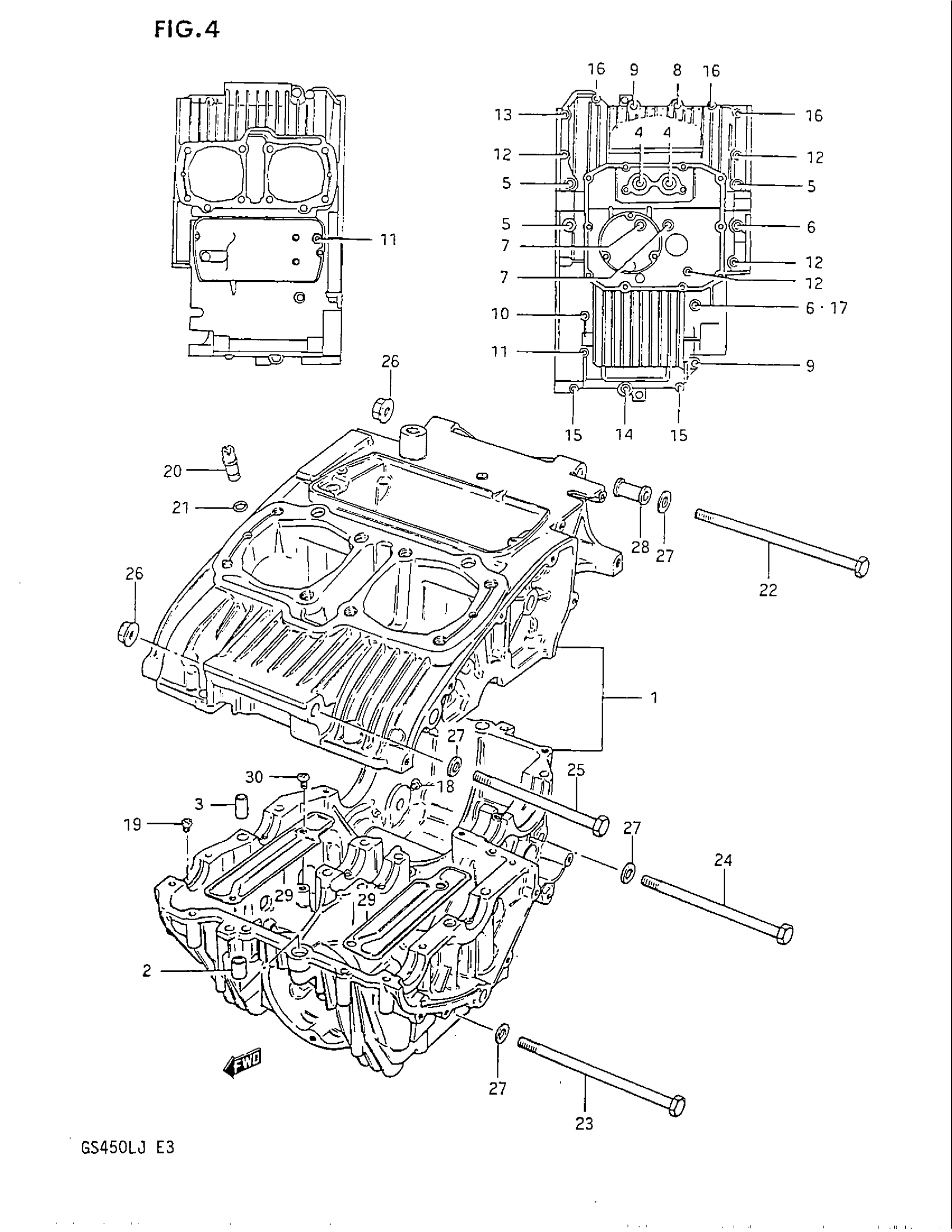

Suzuki GS450L (1988) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 21 This part replaces 11300-44880.

11300-44881

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 07110-08706.

07130-0870B

$5.37

5

BOLT (8X125)

09103-08182

$5.72

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

7

BOLT (8X100)

09103-08070

$5.57

8

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

9

BOLT This part replaces 01517-08455.

01550-0845A

$3.14

10

BOLT (6X125)

09103-06033

$3.91

11

BOLT (6X105)

09103-06067

$2.48

12

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

13

BOLT This part replaces 01517-06705.

01550-0670B

$4.25

14

BOLT (6X65)

01517-06655

Unavailable

15

BOLT This part replaces 01517-06505.

01550-0650A

$2.85

16

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

18

JET,AIR

09493-22010

Unavailable

19

JET, OIL GALY. BAL. SHAFT

09493-32002

$16.57

20

JET, OIL GALLERY CYLINDER

09493-24008

Unavailable

21

O RING

09280-03003

$1.91

22

BOLT This part replaces 09100-10139.

09100-10034

Unavailable

23

BOLT (10x210) This part replaces 09100-10145.

09100-10033

Unavailable

24

BOLT This part replaces 09100-10136.

41189-17X00

Unavailable

25

BOLT 10X125 This part replaces 09100-10135.

09100-10274

$7.15

26

NUT This part replaces 08319-31105.

08319-3110A

$2.73

27

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

28

SPACER, ENGINE MOUNTING

11610-44100

Unavailable

29

PLATE, OIL SEPARATOR

11521-44100

$2.92

30

SCREW This part replaces 02112-06108.

02112-06107

$1.49
