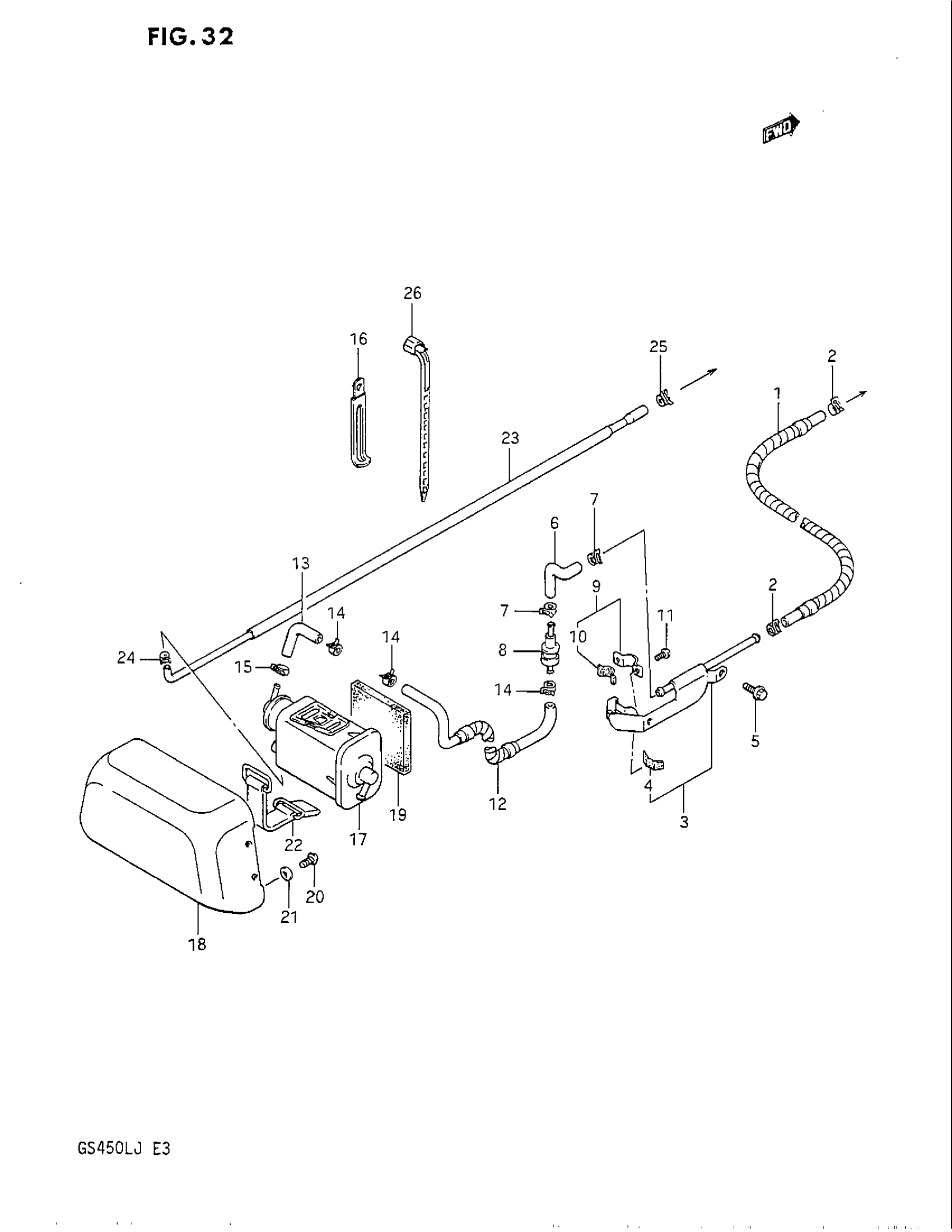

Suzuki GS450L (1988) CANISTER (MODEL G/H/J CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, FUEL TANK JOINT

17261-44900

Unavailable

2

CLIP This part replaces 09401-11410.

09401-11413

$2.26

3

PIPE, CANISTER JOINT | Includes Item(s) 4

17280-44900

Unavailable

4

CUSHION (10X30X2)

44894-24A00

$1.72

5

BOLT This part replaces 01517-06108.

01550-06107

$2.80

6

HOSE, NO.1 | MODEL G/H This part replaces 17262-44900.

09343-05403

Unavailable

6

HOSE, NO.1 | MODEL J This part replaces 09343-05405.

09343-05403

Unavailable

7

CLIP This part replaces 09401-11410.

09401-11413

$2.26

8

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

9

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 10

44892-24A00

$4.52

10

CUSHION (10X30X2)

44894-24A00

$1.72

11

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

12

HOSE, VALVE/JOINT

17263-44900

Unavailable

13

HOSE, NO.1 | MODEL G/H This part replaces 17264-44900.

09343-05403

Unavailable

13

HOSE, NO.1 | MODEL J This part replaces 09343-05405.

09343-05403

Unavailable

14

CLIP This part replaces 09401-11410.

09401-11413

$2.26

15

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

16

CLAMP(L:80) This part replaces 09404-06405.

09404-06036

$1.74

17

CANISTER ASSY

17210-44900

Unavailable

18

COVER, CANISTER

44990-44900

Unavailable

19

CUSHION

46900-44900

Unavailable

20

SCREW

02112-05107

$1.49

21

WASHER This part replaces 08322-21057.

08322-01057

$2.13

22

BAND

09462-00040

$5.76

23

HOSE, CARBURETOR JOINT | MODEL G This part replaces 17265-44900.

17265-44901

Unavailable

23

HOSE, CARBURETOR JOINT | MODEL H/J

17265-44901

Unavailable

24

CLIP This part replaces 09401-08407.

09401-08411

$1.78

25

CLAMP

09407-18402

$2.19
