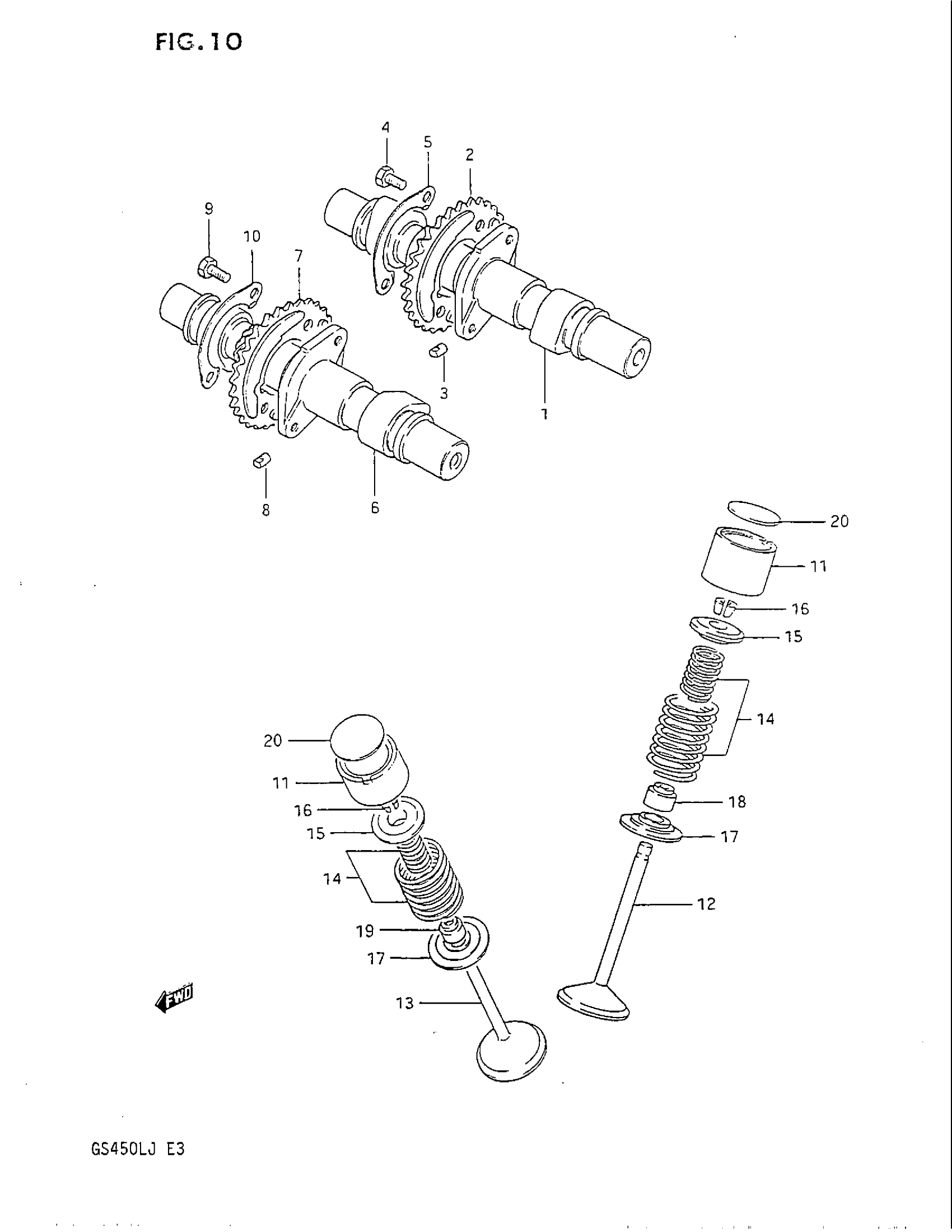

Suzuki GS450L (1988) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-44101

Unavailable

2

SPROCKET, INTAKE (NT:30) This part replaces 12740-45041.

12740-45042

Unavailable

3

PIN

12748-44000

Unavailable

4

BOLT

09111-06027

$1.87

5

WASHER This part replaces 12747-44000.

12747-44001

$2.60

6

CAM SHAFT, EXHAUST | MODEL F

12721-44101

Unavailable

6

CAM SHAFT, EXHAUST | MODEL G/H/J This part replaces 12721-44900.

12721-44101

Unavailable

7

SPROCKET (NT:30)

12750-45041

Unavailable

8

PIN

12748-44000

Unavailable

9

BOLT

09111-06027

$1.87

10

WASHER This part replaces 12747-44000.

12747-44001

$2.60

11

TAPPET

12891-45001

$63.26

12

VALVE, INTAKE

12911-45030

Unavailable

13

VALVE, EXHAUST

12912-45021

Unavailable

14

SPRING SET, VALVE

12920-44110

$19.03

15

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$9.17

16

COTTER, VALVE

12932-45010

$2.60

17

SEAT, SPRING

12933-45001

$7.07

18

OIL SEAL, INTAKE

09289-07002

$7.31

19

OIL SEAL, EXHAUST

09289-07003

Unavailable

20

SHIM, TAPPET (T:2.15)

12892-45000-215

$24.43

20

SHIM, TAPPET (T:2.20)

12892-45000-220

$24.43

20

SHIM, TAPPET (T:2.25)

12892-45000-225

$24.43

20

SHIM, TAPPET (T:2.30)

12892-45000-230

$24.43

20

SHIM, TAPPET (T:2.35)

12892-45000-235

$24.43

20

SHIM, TAPPET (T:2.40)

12892-45000-240

$24.43

20

SHIM, TAPPET (T:2.45)

12892-45000-245

$23.57

20

SHIM, TAPPET (T:2.50)

12892-45000-250

$23.57

20

SHIM, TAPPET (T:2.55)

12892-45000-255

$23.57

20

SHIM, TAPPET (T:2.60)

12892-45000-260

$16.40

20

SHIM, TAPPET (T:2.65)

12892-45000-265

$16.72

20

SHIM, TAPPET (T:2.70)

12892-45000-270

$16.72

20

SHIM, TAPPET (T:2.75)

12892-45000-275

$24.43

20

SHIM, TAPPET (T:2.80)

12892-45000-280

$23.57

20

SHIM, TAPPET (T:2.85)

12892-45000-285

$24.43

20

SHIM, TAPPET (T:2.90)

12892-45000-290

$24.43

20

SHIM, TAPPET (T:2.95)

12892-45000-295

$24.43

20

SHIM, TAPPET (T:3.00)

12892-45000-300

Unavailable

20

SHIM, TAPPET (T:3.05)

12892-45000-305

$24.43

20

SHIM, TAPPET (T:3.10)

12892-45000-310

$24.43

21

SHIM SET | OPT NOT SHOWN; Includes Item(s) 22 This part replaces 12800-45810.

12800-45811

Unavailable

22

CASE, TAPPET SHIM | OPT NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
