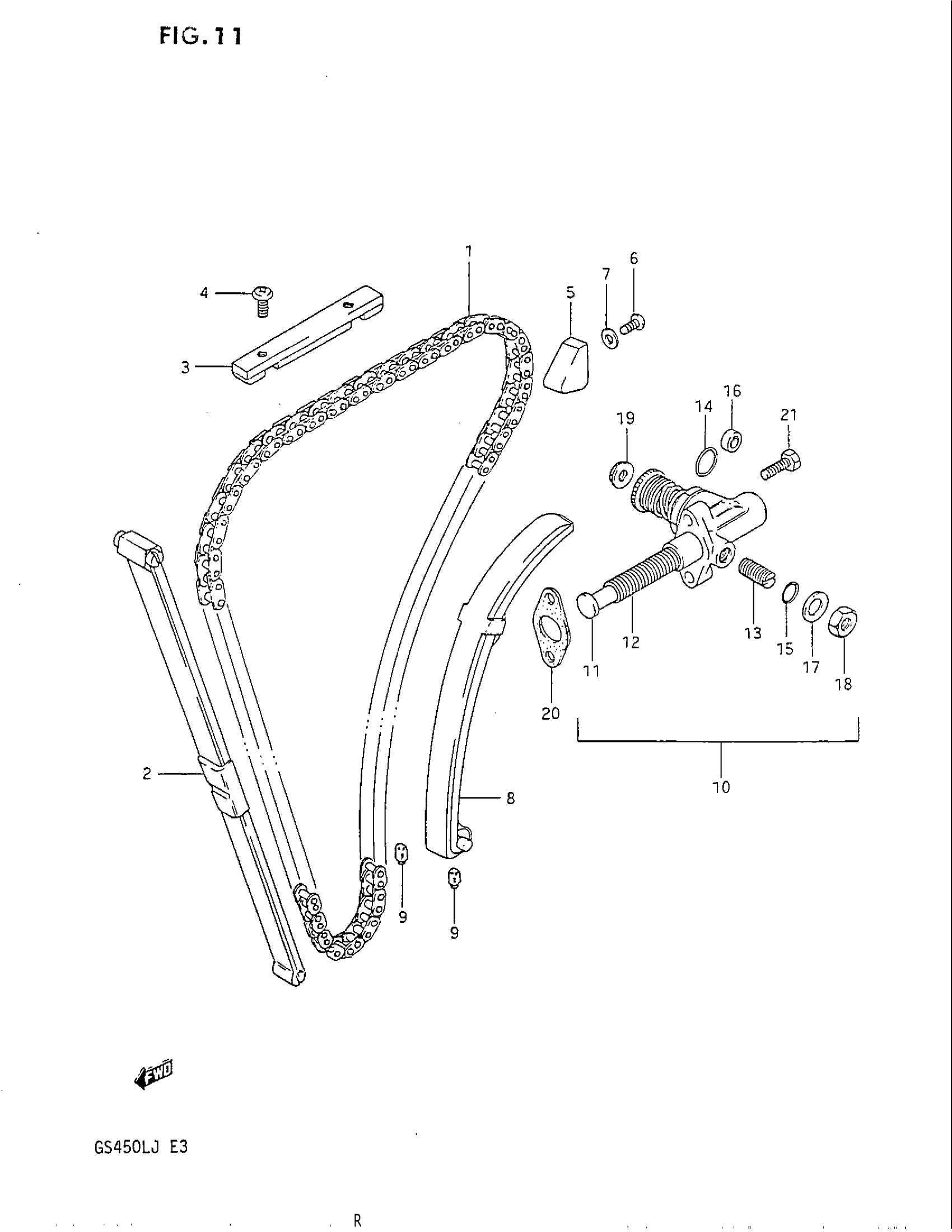

Suzuki GS450L (1988) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$149.60

2

GUIDE,CAM CHAIN This part replaces 12771-45052.

12771-45053

$40.00

3

GUIDE, CAM CHAIN NO.2

12782-47040

Unavailable

4

SCREW This part replaces 02112-05128.

02112-05127

$1.97

5

GUIDE, CAM CHAIN NO.3

12791-45040

$14.20

6

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

7

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

8

TENSIONER, CAM CHAIN

12810-44150

Unavailable

9

CUSHION

12814-44101

$6.60

10

ADJUSTER ASSY,T | Includes Item(s) 11 - 19 This part replaces 12830-47011.

12830-0930V

Unavailable

11

PUSH ROD

12833-47001

Unavailable

12

SPRING

09440-12017

$2.45

13

SCREW This part replaces 12838-45010.

12838-45001

$8.42

14

O RING

09280-21013

$2.28

15

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

16

OIL SEAL

09284-10006

$3.42

17

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

18

NUT This part replaces 08310-11085.

08310-0008A

$1.84

19

NUT This part replaces 08316-16064.

08316-1006B

$2.50

20

GKT,TENSIONER A This part replaces 12837-31310.

12837-47010

$4.22

21

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.47
