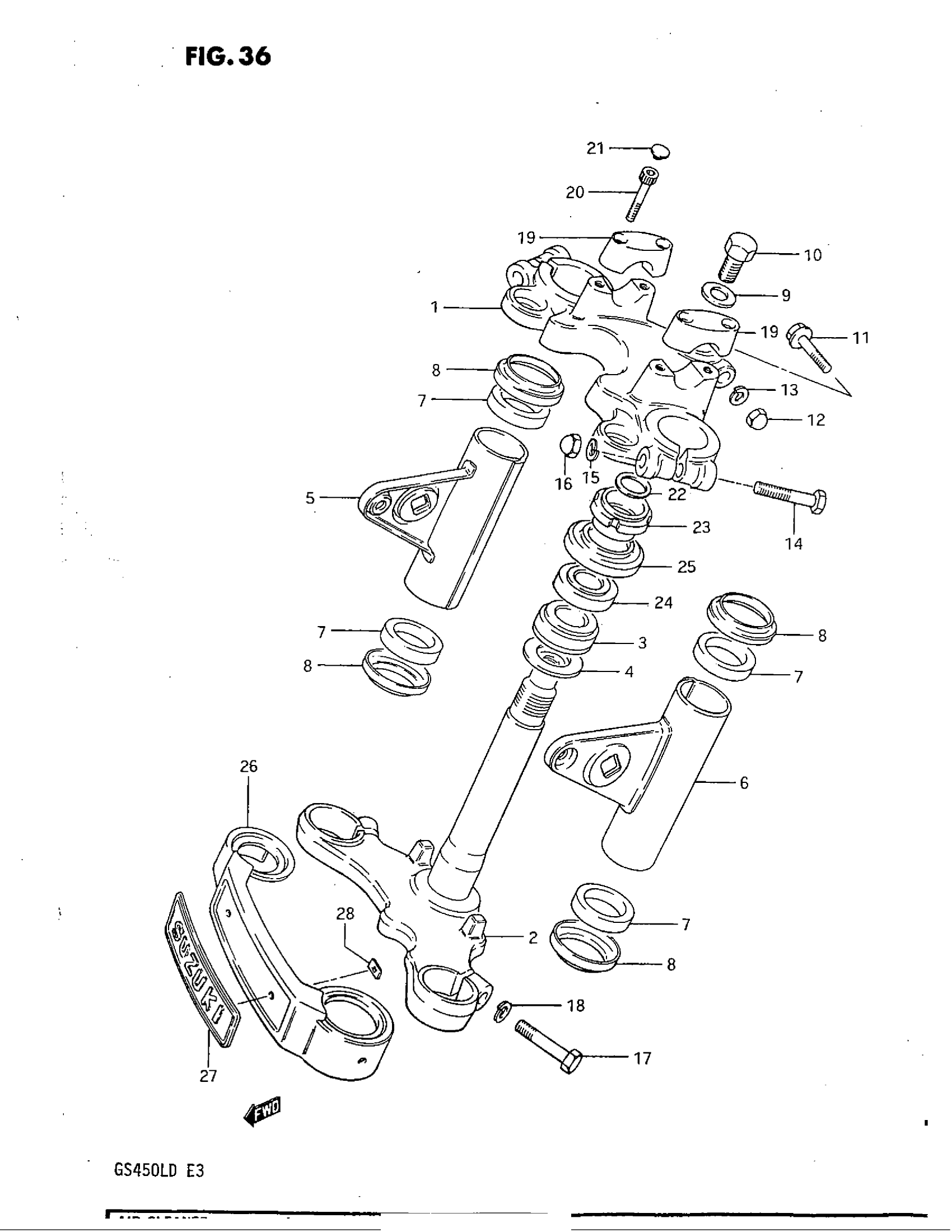

Suzuki GS450L (1983) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-44120-291

Unavailable

2

STEERING STEM SET | Includes Item(s) 3 - 4 This part replaces 51401-34810.

51400-44870

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-44900.

51500-44820

Unavailable

6

BRACKET, HEADLAMP LH

51540-44900

Unavailable

7

CUSHION, HEADLAMP BRACKET

51556-44900

Unavailable

8

CAP

51555-44900

Unavailable

9

WASHER

09160-12048

Unavailable

10

BOLT

09104-12015

Unavailable

11

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

12

NUT This part replaces 08313-11085.

08313-1008B

$2.80

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT This part replaces 01517-10558.

01550-10557

$3.91

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

NUT

09145-10002

Unavailable

17

BOLT This part replaces 01107-10408.

01500-10407

$3.55

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

CLAMP, HANDLEBAR UPPER

56211-34300-291

Unavailable

20

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

21

CAP

09250-06004

$1.49

22

WASHER

09160-18002

$2.38

23

NUT, STEERING STEM

51631-34200

Unavailable

24

BEARING, UPPER

09265-25008

Unavailable

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

26

COVER, FRONT FORK

51871-44210

Unavailable

27

EMBLEM

68211-44210

Unavailable

28

NUT, COVER

09148-03002

$2.15
