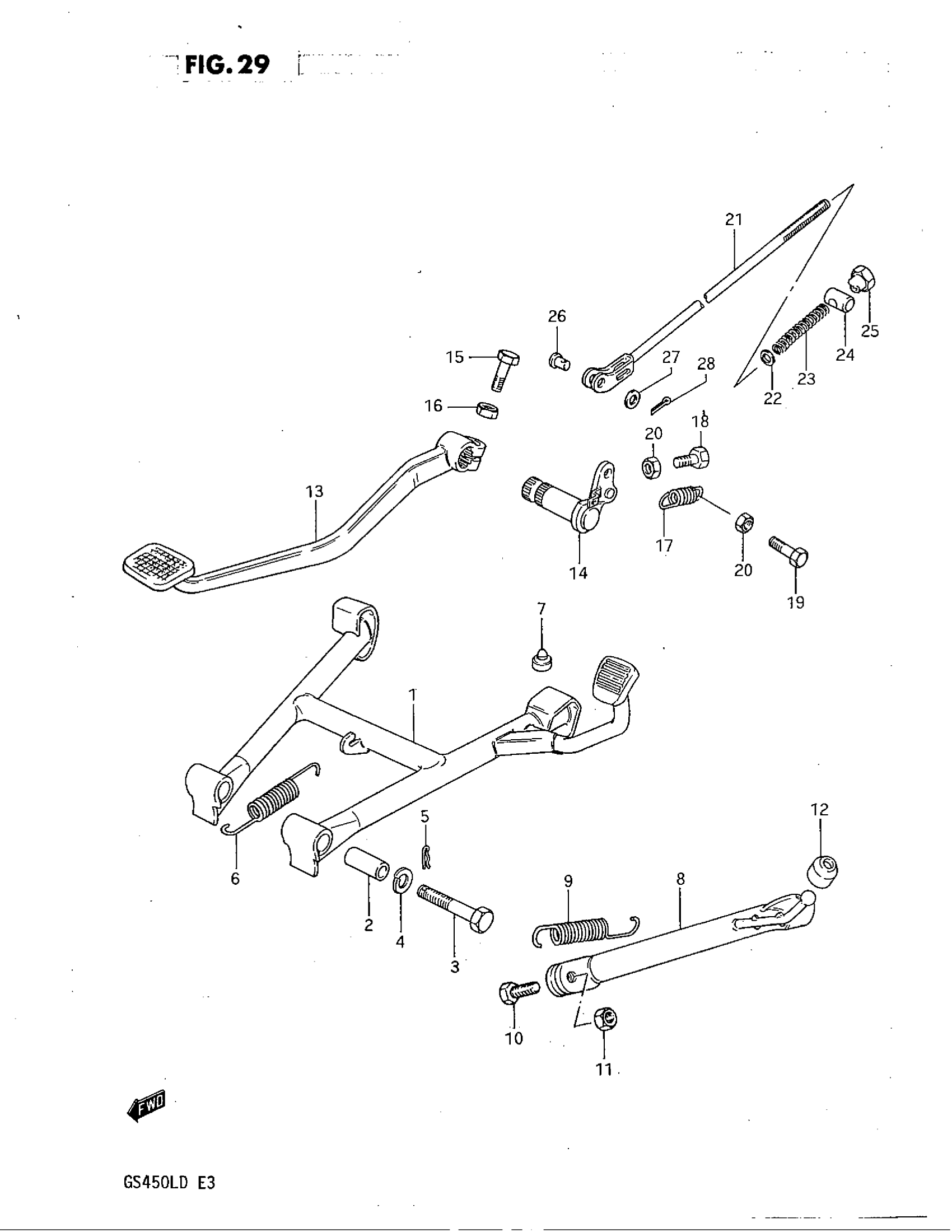

Suzuki GS450L (1983) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER

42100-44700

Unavailable

2

SPACER

09180-10040

$2.56

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING, CENTER This part replaces 09443-18003.

09443-18006-XC0

$7.82

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42310-44900

Unavailable

9

SPRING

09443-14028

Unavailable

10

BOLT

09100-10067

$2.61

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.92

13

PEDAL, BRAKE

43110-44900

Unavailable

14

ARM, BRAKE PEDAL ROD This part replaces 43120-11500.

43120-11501

Unavailable

15

BOLT This part replaces 01107-08258.

01500-08257

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

SPRING This part replaces 09443-14020.

09443-14015

$2.89

18

BOLT This part replaces 01107-06208.

01500-06207

$2.28

19

BOLT This part replaces 01107-06258.

01500-06257

$1.97

20

.NUT This part replaces 08310-11068.

08310-00067

$2.13

21

ROD ASSY, REAR BRAKE | Includes Item(s) 22 - 28

43300-44401

Unavailable

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

SPRING

09440-09004

$2.20

24

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

25

.NUT This part replaces 09150-06001.

09150-06010

$3.10

26

PIN

09200-06013

$2.00

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
