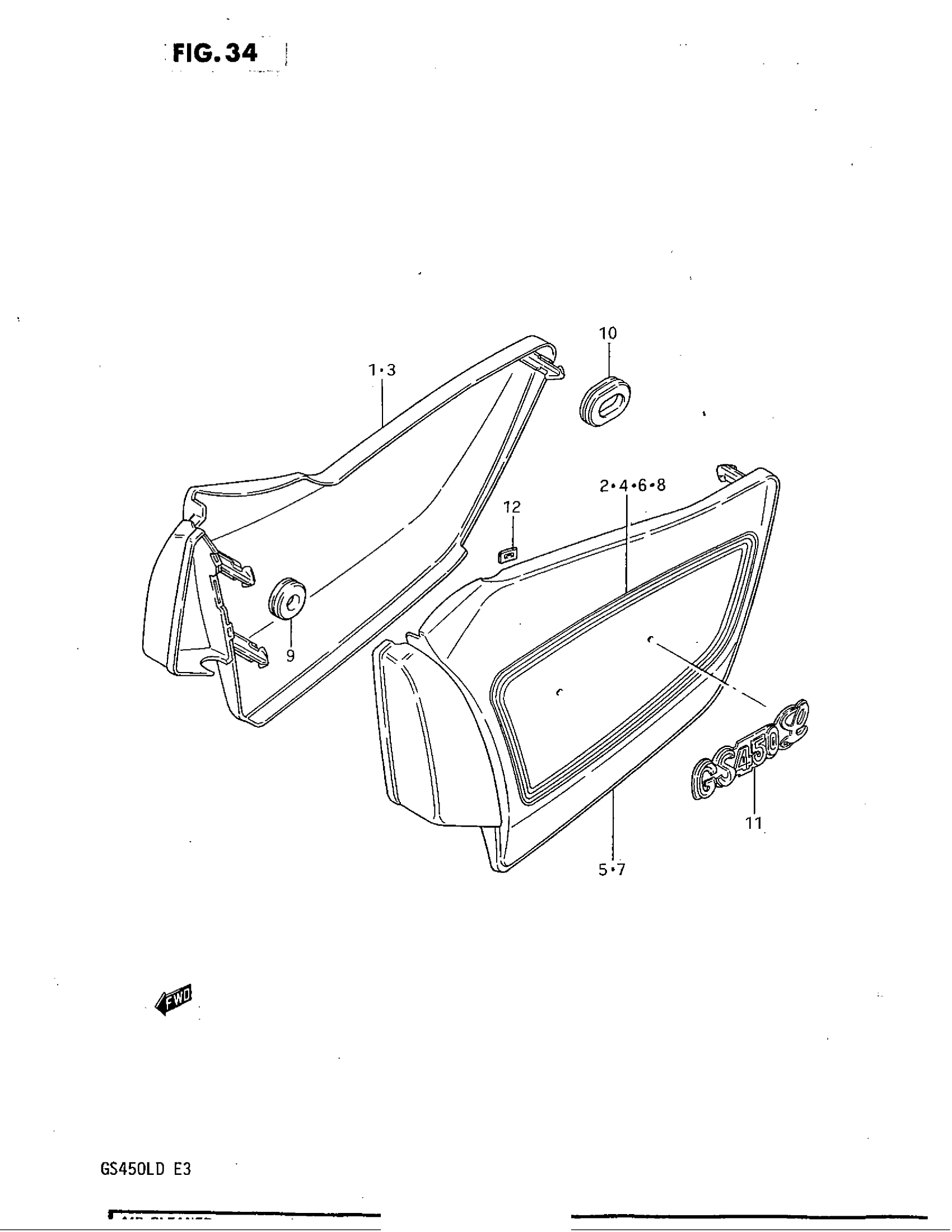

Suzuki GS450L (1983) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,RH This part replaces 47110-11930-019.

47110-11920

Unavailable

2

TAPE SET, RH

68130-11920-78U

Unavailable

3

COVER,FRAME,RH This part replaces 47110-11930-12S.

47110-11920

Unavailable

4

TAPE SET, RH

68130-11920-78V

Unavailable

5

COVER,FRAME LH This part replaces 47210-11930-019.

47210-11920

Unavailable

6

TAPE SET, LH

68140-11920-78U

Unavailable

7

COVER,FRAME LH This part replaces 47210-11930-12S.

47210-11920

Unavailable

8

TAPE SET, LH

68140-11920-78V

Unavailable

9

CUSHION, FRONT

09320-08018

$3.04

10

CUSHION, REAR

09329-08003

$3.16

11

EMBLEM

68131-44240

Unavailable

12

NUT

09148-03002

$2.15
