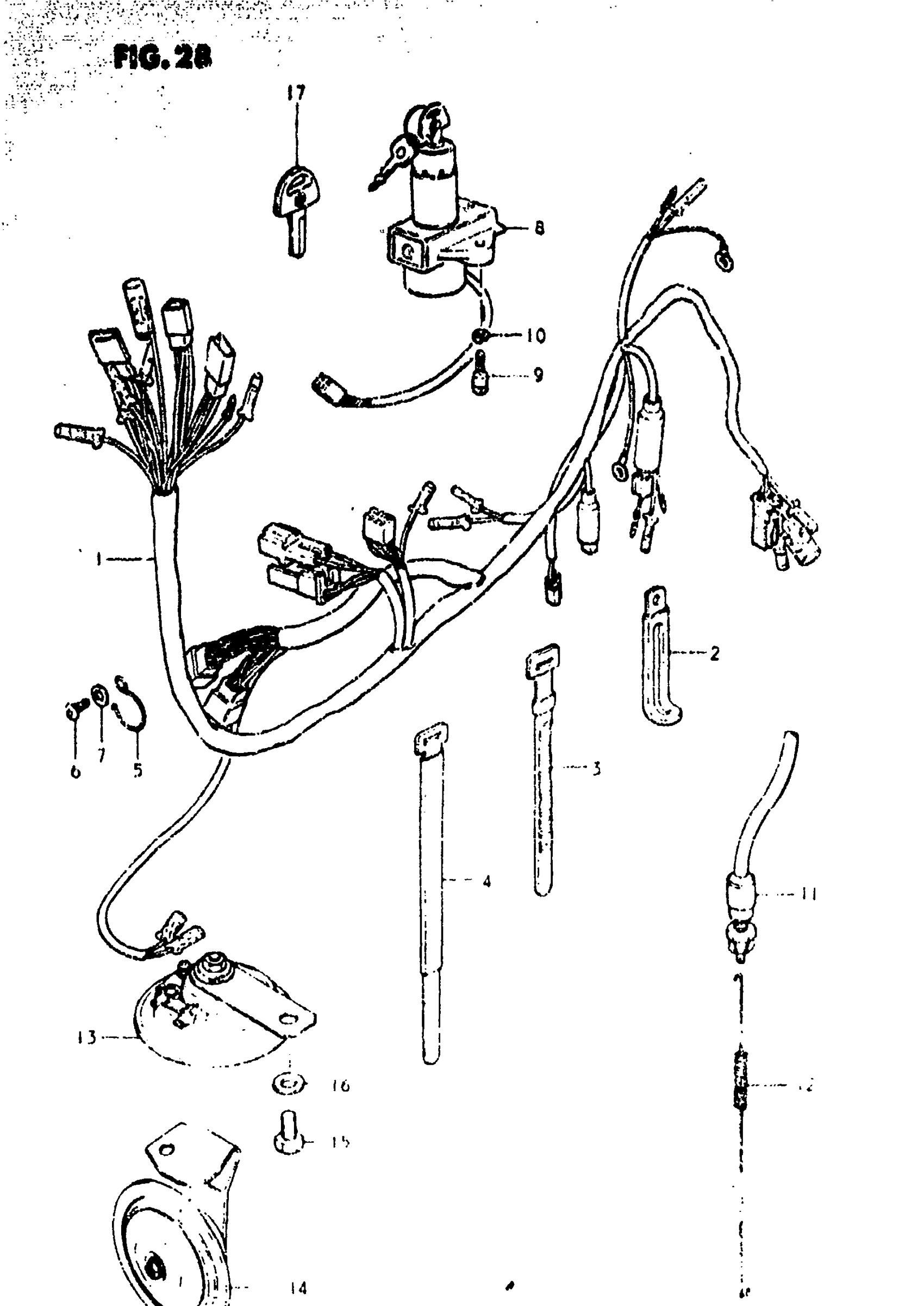

Suzuki GS450L (1982) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL T,X

36610-44250

Unavailable

1

WIRING HARNESS | MODEL Z

36610-44291

Unavailable

2

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

3

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

$2.26

4

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

5

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

SWITCH ASSY, IGNITION | MODEL T This part replaces 37100-47010.

37100-45301

Unavailable

8

SWITCH ASSY, IGNITION | MODEL X,Z; Includes Item(s) 9 - 10 This part replaces 37100-47011.

37100-45301

Unavailable

9

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

SWITCH, REAR BRAKE LAMP | MODEL T This part replaces 37740-04570.

37740-48071

$19.18

11

SWITCH, REAR BRAKE LAMP | MODEL X,Z This part replaces 37740-04571.

37740-48071

$19.18

12

SPRING | MODEL T,Z

09443-06005

$3.37

12

SPRING | MODEL Z This part replaces 09443-06018.

09443-06018-XC0

Unavailable

13

HORN ASSY | MODEL T This part replaces 38502-47000.

38502-49001

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 38500-44210.

38500-44230

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 38500-44220.

38500-44230

Unavailable

15

BOLT This part replaces 01107-08128.

01500-08127

$2.62

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

KEY, BLANK | OPT

37146-47010

$18.39
