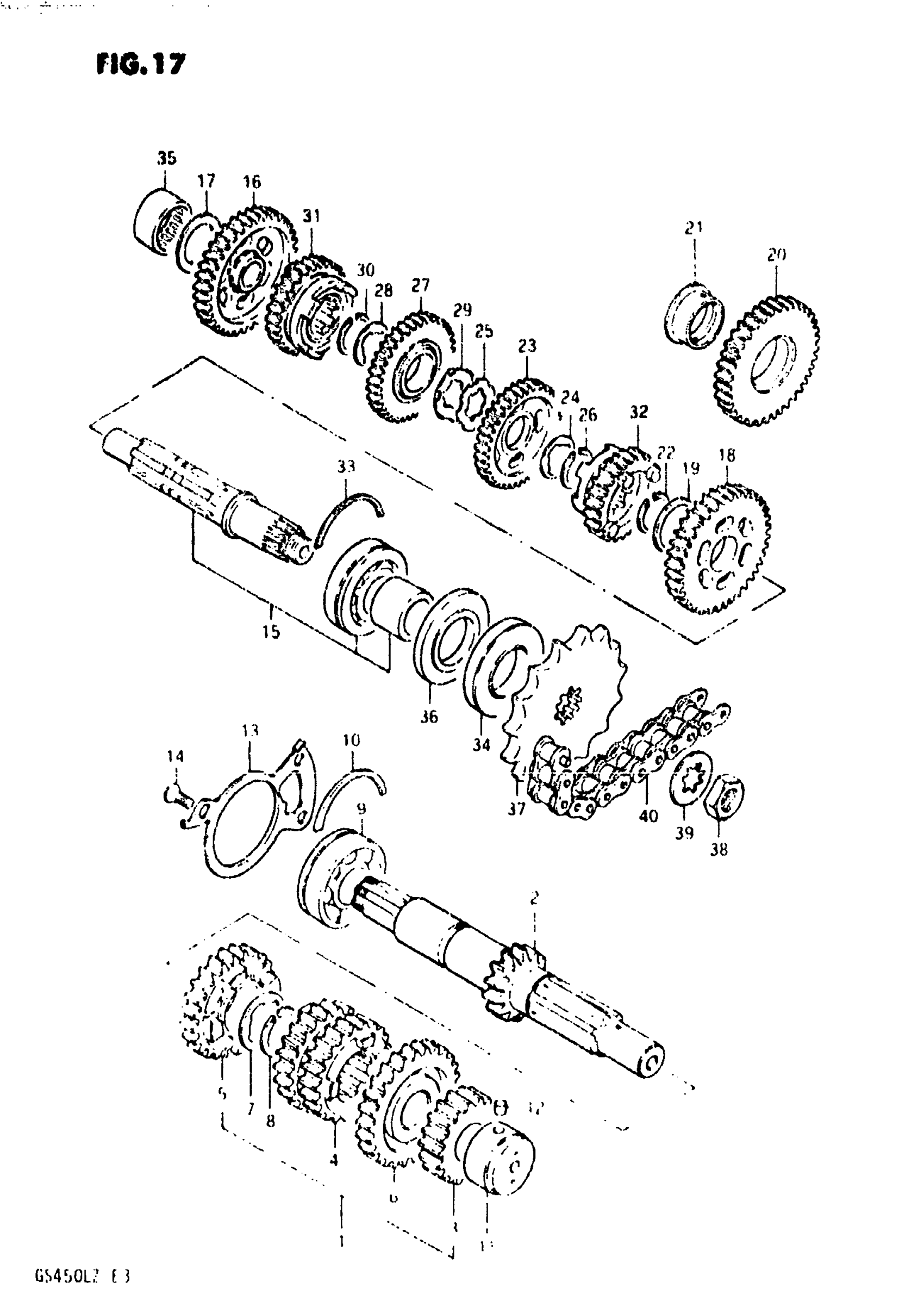

Suzuki GS450L (1982) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-44100

Unavailable

2

COUNTERSHAFT (NT:13)

24121-44100

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-44001

Unavailable

4

GEAR, 3/4 DRIVE (NT:21/24)

24231-44001

Unavailable

5

GEAR, 5TH DRIVE (NT:26)

24250-44001

Unavailable

6

GEAR, 6TH DRIVE (NT:27)

24260-44000

Unavailable

7

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

8

CIRCLIP

09380-25010

$2.91

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

10

C RING This part replaces 09390-62006.

09390-62012

$7.31

11

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

12

PIN

04221-07129

$1.86

13

HOLDER, BEARING This part replaces 24741-44100.

24741-44102

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.49

15

DRIVESHAFT This part replaces 24100-44810.

24100-44811

Unavailable

16

GEAR, 1ST DRIVEN (NT:32) This part replaces 24310-44000.

24310-44001

Unavailable

17

WASHER

08211-20341

$2.80

18

GEAR, 2ND DRIVEN (NT:32) | ID.25

24320-44002

Unavailable

19

WASHER

08211-25321

$3.27

20

GEAR, 2ND DRIVEN (NT:32) | ID:29 This part replaces 24321-44004.

24321-20F01

$125.38

21

BUSH, 2ND DRIVEN | ID:25 This part replaces 09301-25001.

24322-19F00

$23.78

22

CIRCLIP

09380-25010

$2.91

23

GEAR, 3RD DRIVEN (NT:29) This part replaces 24331-44002.

24331-44003

Unavailable

24

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

26

CIRCLIP

09380-25010

$2.91

27

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-44002.

24341-44003

Unavailable

28

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

29

LOCK WASHER

09169-25001

$2.70

30

CIRCLIP

09380-25010

$2.91

31

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-44001.

24351-20F02

Unavailable

32

GEAR, 6TH DRIVEN (NT:23) | FOR 24320-44002 This part replaces 24361-44001.

24361-44010

Unavailable

32

GEAR, 6TH DRIVEN (NT:23) | FOR 24321-44004 This part replaces 24361-44002.

24361-44010

Unavailable

33

C RING This part replaces 09390-62006.

09390-62012

$7.31

34

OIL SEAL (32x62x8F) | FLANGED TYPE

09283-32019

Unavailable

34

OIL SEAL (32x62x7J-1)

09283-32015

$15.74

35

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

36

OIL SEAL, RH

09282-32002

$11.65

37

SPROCKET, ENGINE (NT:16)

27511-44000

Unavailable

38

NUT

09140-20009

Unavailable

39

WASHER (25.3X41.6X1) This part replaces 09167-25011.

09167-25019

$2.19

40

CHAIN, DRIVE (102L)

27600-44130

Unavailable
