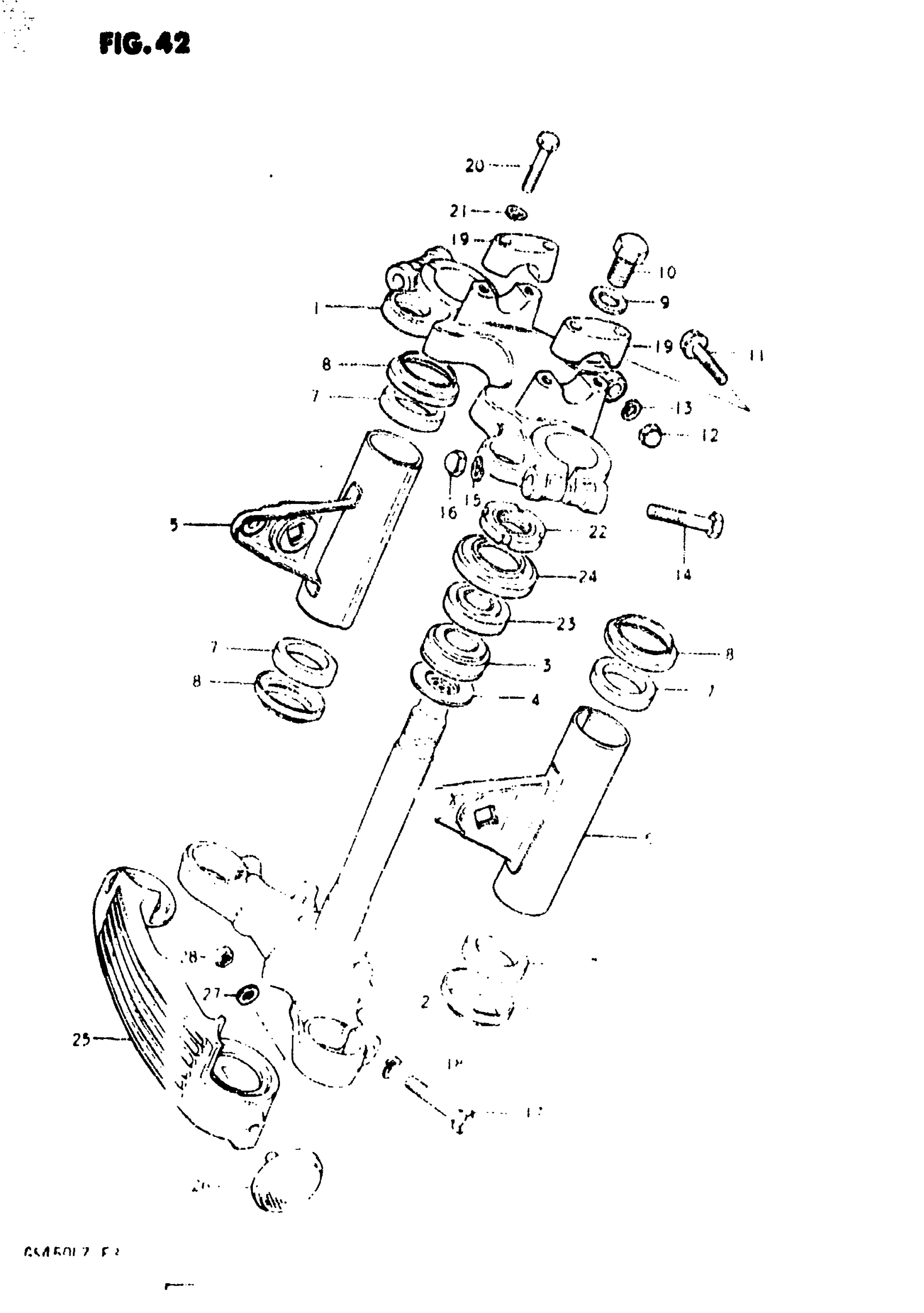

Suzuki GS450L (1982) STEERING STEM (MODEL T Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-44100-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-44811.

51400-44833

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-44210.

51500-44830

Unavailable

6

BRACKET, HEADLAMP LH

51540-44210

Unavailable

7

CUSHION, HEADLAMP BRACKET

51556-44100

Unavailable

8

CAP

51555-44100

Unavailable

9

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

10

BOLT

09104-12013

$4.11

11

BOLT, LH This part replaces 01527-08507.

01550-08507

$3.55

12

NUT This part replaces 08313-11085.

08313-1008B

$2.80

13

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

14

BOLT This part replaces 01517-10558.

01550-10557

$3.91

15

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

16

NUT This part replaces 08313-11105.

08313-1010A

$2.35

17

BOLT This part replaces 01107-10408.

01500-10407

$3.55

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

CLAMP, HANDLEBAR UPPER

56211-27200-291

$17.90

20

BOLT

01204-08357

$2.09

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

NUT, STEERING STEM

51631-28000

$17.37

23

BEARING, UPPER

09265-25008

Unavailable

24

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

25

COVER, FRONT FORK

51871-44200

Unavailable

26

REFLEX REFLECTOR, FRONT

35950-49080

$17.24

27

WASHER This part replaces 08322-21058.

08322-01057

$2.13

28

NUT This part replaces 08310-11058.

08310-00057

$1.84
