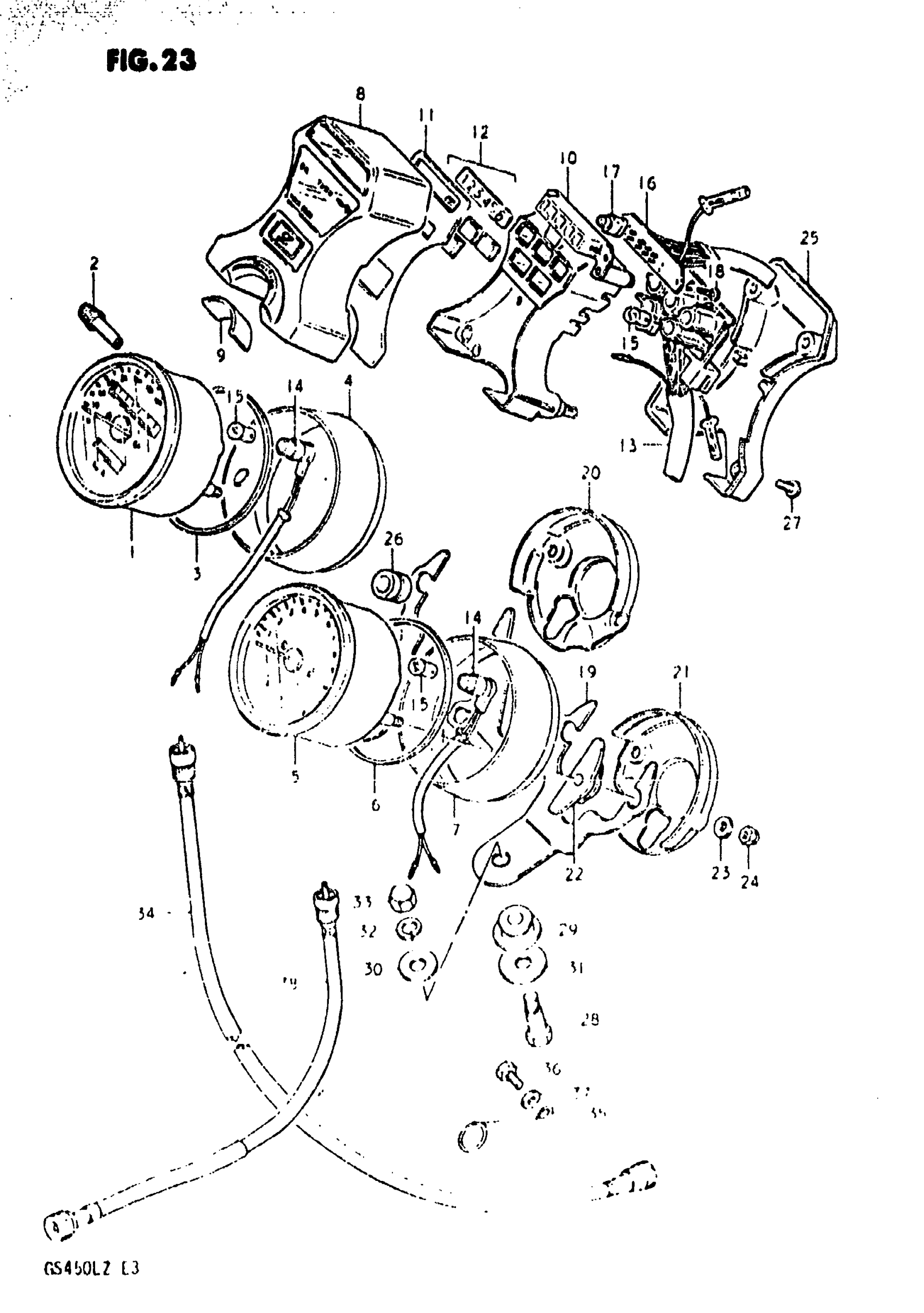

Suzuki GS450L (1982) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE; Includes Item(s) 2

34110-45230

Unavailable

2

KNOB

34980-45020

$3.77

3

CUSHION

34189-45300

Unavailable

4

COVER, SPEEDOMETER

34151-45300

Unavailable

5

TACHOMETER This part replaces 34210-47201.

34210-45360

$408.50

6

CUSHION

34189-45300

Unavailable

7

COVER, TACHOMETER

34251-45300

Unavailable

8

CASE, PILOT BOX OUTER

36381-44200

Unavailable

9

SEAL

34993-47000

Unavailable

10

CASE, PILOT BOX INNER | MODEL T,X This part replaces 36382-45300.

36382-45301

Unavailable

10

CASE, PILOT BOX INNER | MODEL Z

36382-45301

Unavailable

11

PANEL, PILOT LENS

36386-45300

Unavailable

12

LENS SET | MODEL T,X This part replaces 36300-45810.

36300-45811

Unavailable

12

LENS SET | MODEL Z

36300-45811

Unavailable

13

SOCKET, PILOT LAMP This part replaces 36325-44200.

36325-45302

Unavailable

13

SOCKET, PILOT LAMP | FOR WEDGE BASE BULB This part replaces 36325-44201.

36325-45302

Unavailable

14

SOCKET, METER This part replaces 34173-45300.

34173-45302

Unavailable

14

SOCKET, METER | FOR WEDGE BASE BULB This part replaces 34173-44310.

34173-45302

Unavailable

15

BULB (12V,3.4W)

09471-12001

$1.65

15

BULB (12V,3.4W) | WEDGE BASE BULB

09471-12028

$1.99

16

SOCKET, GEAR INDICATOR

36453-47200

Unavailable

17

BULB | MODEL T,X

09471-12071

$7.20

17

BULB | MODEL Z

09471-12078

Unavailable

18

SCREW

36457-45100

Unavailable

19

BRACKET

34950-44200

Unavailable

20

ORNAMENT, SPEEDOMETER

34193-45300

Unavailable

21

ORNAMENT, TACHOMETER

34293-45300

Unavailable

22

CUSHION

34191-45300

Unavailable

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

NUT This part replaces 08313-11057.

08313-1005A

$1.93

25

COVER, PILOT BOX

36383-45300

Unavailable

26

CUSHION

36384-45300

Unavailable

27

SCREW

36387-45300

Unavailable

28

BOLT

09111-08031

Unavailable

29

CUSHION | MODEL T,X This part replaces 34956-31000.

34956-31001

$4.37

29

CUSHION | MODEL Z

34956-31001

$4.37

30

WASHER This part replaces 09160-08047.

09160-08130

$2.03

31

WASHER This part replaces 09160-10028.

09160-10035

$1.78

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

33

NUT This part replaces 08313-11088.

08313-10087

$2.28

34

CABLE ASSY,SPEE | MODEL T This part replaces 34910-45221.

34910-31991

Unavailable

34

CABLE ASSY,SPEE | MODEL X,Z This part replaces 34910-45113.

34910-45115

$26.55

35

CLAMP | MODEL T

34938-37000

$3.73

35

CLAMP | MODEL X,Z

34938-45100

$6.57

36

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

37

WASHER This part replaces 08322-21068.

08322-01067

$2.13

38

CABLE ASSY,TACH | MODEL T This part replaces 34940-47031.

34940-47034

$23.49

38

CABLE ASSY,TACH | MODEL X,Z This part replaces 34940-44111.

34940-05312

$40.40
