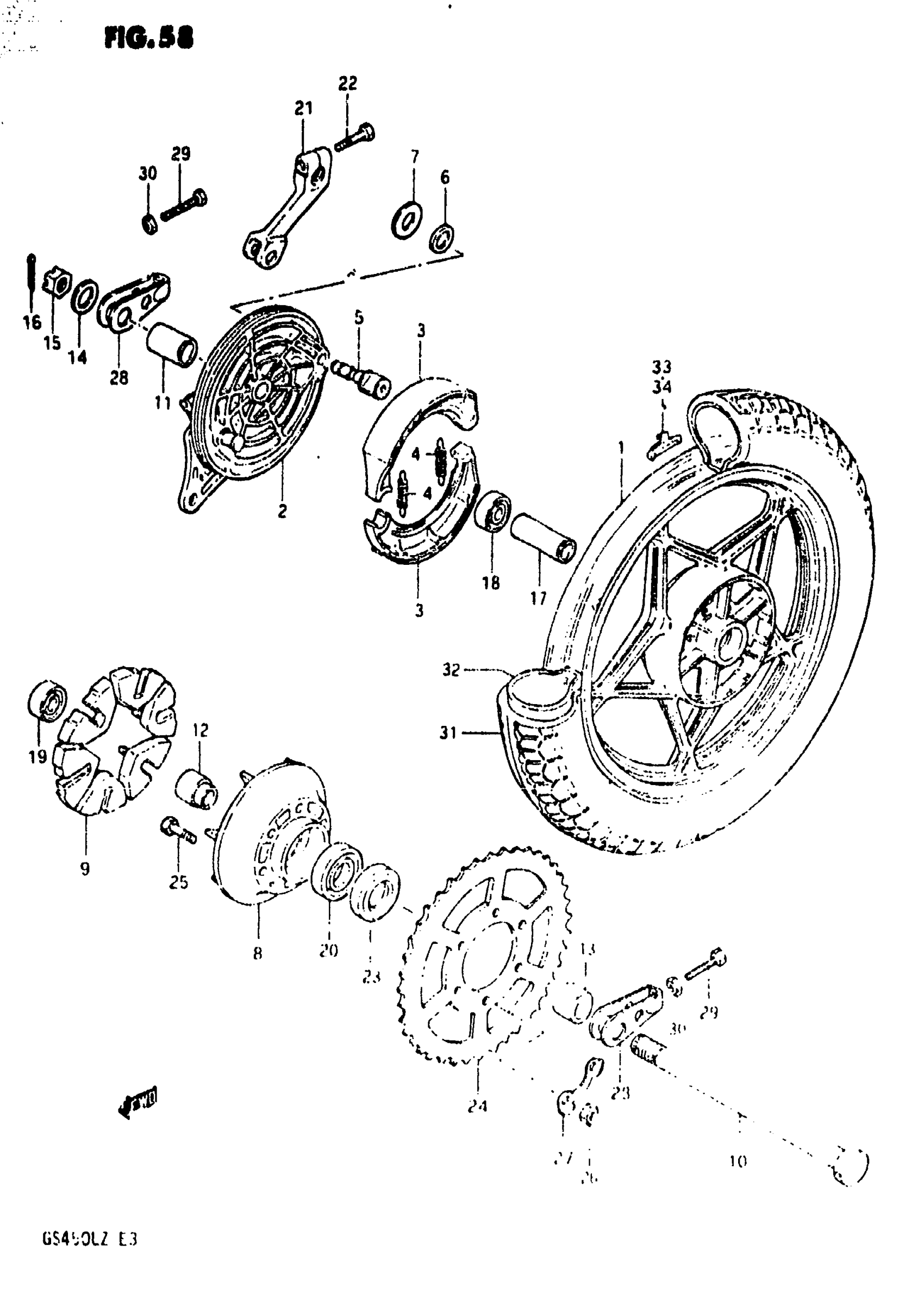

Suzuki GS450L (1982) REAR WHEEL (MODEL T Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 64150-37300.

64150-37300-12U

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 64150-37320.

64150-37300-291

Unavailable

2

PANEL

64210-44060

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

DRUM, SPROCKET

64610-44200

Unavailable

9

SHOCK ABSORBER, REAR DRUM

64651-11300

$13.62

10

AXLE,REAR This part replaces 64711-33000.

64711-3300V

Unavailable

11

SPACER, RH

09180-17043

Unavailable

12

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

Unavailable

13

SPACER, LH

09180-17042

Unavailable

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

15

NUT

09141-16001

Unavailable

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

Unavailable

18

BEARING, REAR BUB RH

08143-63037

$22.58

19

BEARING, REAR HUB LH

08143-62037

$18.47

20

BEARING

08113-62057

$25.60

21

LEVER, BRAKE CAM

64451-44001

Unavailable

22

BOLT This part replaces 01107-06258.

01500-06257

$1.97

23

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

24

SPROCKET, REAR (NT:41)

64511-44200

Unavailable

25

BOLT This part replaces 09119-10002.

09105-10001

$2.87

26

NUT This part replaces 08310-12108.

08310-00107

$2.19

27

LOCK WASHER

09169-10006

Unavailable

28

ADJUSTER, CHAIN

61410-44200

Unavailable

29

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-37310.

65100-38330

Unavailable

31

TIRE, REAR (4.60S16) | BS

65100-37330

Unavailable

32

TUBE, INNER REAR | IRC

65200-37300

Unavailable

32

TUBE, INNER REAR | BS This part replaces 65200-37320.

65200-37300

Unavailable

33

BALANCER, NO.1 | (0~3)

55411-47001

Unavailable

34

BALANCER, NO.2 | (0~3)

55412-47001

Unavailable
