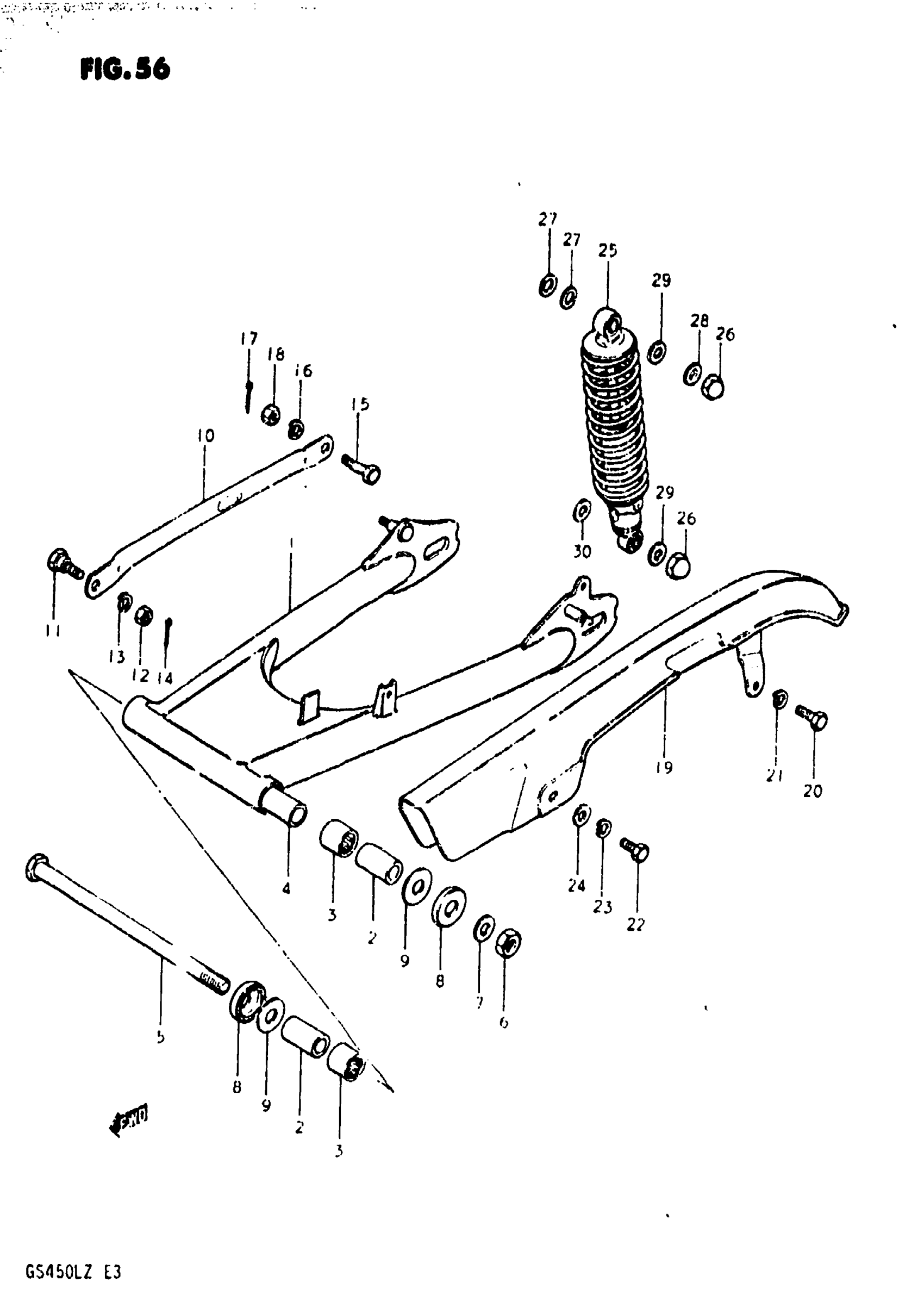

Suzuki GS450L (1982) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET (BLACK) | MODEL T,X This part replaces 61100-44820-019.

61100-44821-019

Unavailable

1

REAR SWINGING ARM SET | MODEL Z; Includes Item(s) 2 - 4

61100-44821-019

Unavailable

2

SPACER

61251-45001

$17.37

3

BEARING

09263-22017

$22.58

4

SPACER

61281-44001

Unavailable

5

SHAFT, PIVOT

61211-33002

Unavailable

6

NUT This part replaces 08319-21148.

08319-2114A

$3.96

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

DUST SEAL | MODEL T This part replaces 61262-45003.

61262-45002

$7.97

8

COVER, DUST SEAL | MODEL X,Z

61262-45002

$7.97

9

WASHER

09160-14020

$2.19

10

TORQUE LINK, REAR

64311-44200-019

Unavailable

11

BOLT, FRONT

09111-10010

Unavailable

12

NUT This part replaces 08310-22108.

08310-00107

$2.19

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT, REAR

09101-10003

Unavailable

16

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

NUT This part replaces 08310-11108.

08310-00107

$2.19

19

CHAIN CASE | MODEL T This part replaces 61310-47201.

61310-47203

Unavailable

19

CHAIN CASE | MODEL X This part replaces 61310-47202.

61310-47203

Unavailable

19

CHAIN CASE | MODEL Z

61310-47203

Unavailable

20

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

BOLT This part replaces 01107-06108.

01500-06107

$2.06

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 62100-44131.

62100-44411

Unavailable

25

NO DESCRIPTION AVAILABLE | MODEL X,Z This part replaces 62100-44132.

62100-44411

Unavailable

26

NUT This part replaces 08313-11108.

08313-10107

$2.50

27

WASHER This part replaces 08322-11128.

08322-01127

$1.84

28

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

29

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

30

WASHER This part replaces 09160-12004.

09160-12088

$2.00
