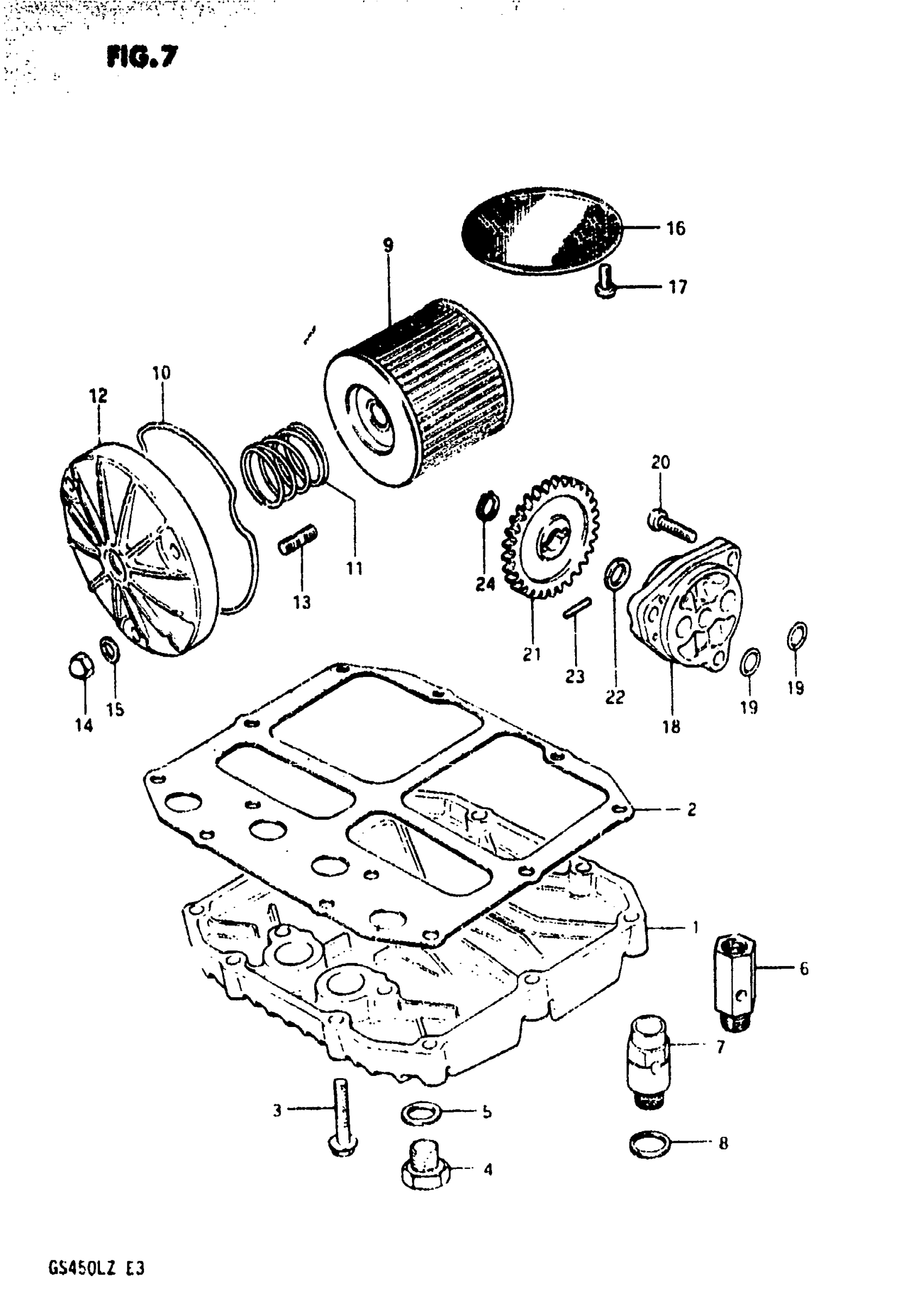

Suzuki GS450L (1982) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-44100

$102.17

2

GASKET, OIL PAN This part replaces 11489-44100.

11489-44110

$10.28

3

BOLT This part replaces 01517-06308.

01550-06307

$2.69

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET

09168-14004

$1.83

6

VALVE ASSY, OIL RELIEF | MODEL T,X This part replaces 16440-44100.

16440-11D00

$59.07

7

VALVE ASSY, OIL RELIEF | MODEL Z This part replaces 16440-34301.

16440-11D00

$59.07

8

WASHER

08212-14181

Unavailable

9

FILTER, ENGINE OIL

16510-45040

$5.96

10

O RING

16518-45000

$5.70

11

SPRING

09440-32004

$2.92

12

CAP, ENGINE OIL FILTER This part replaces 16512-45100.

16512-45101

Unavailable

13

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

14

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.84

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

STRAINER, ENGINE OIL | MODEL T,X This part replaces 16520-45000.

16520-45010

Unavailable

16

STRAINER, ENGINE OIL | MODEL Z

16520-45010

Unavailable

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

PUMP, ENGINE OIL

16400-44100

$198.45

19

O RING

09280-13004

$2.17

20

SCREW This part replaces 02112-06258.

02112-06257

$1.78

21

GEAR, DRIVEN (NT:29)

16331-44000

Unavailable

22

WASHER

08221-10185

$2.15

23

PIN

09261-04009

$1.56

24

CIRCLIP

08331-31109

$1.78
