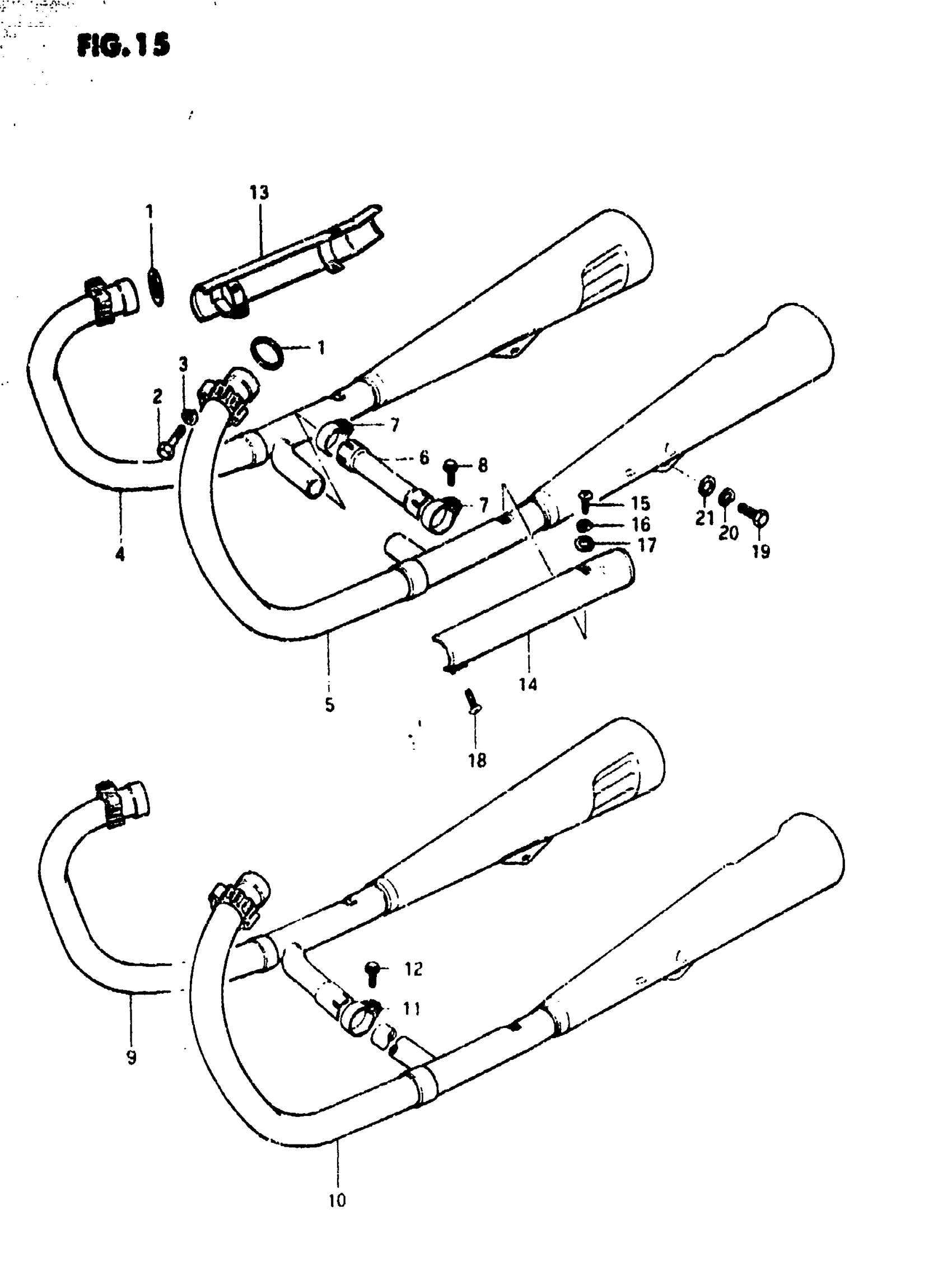

Suzuki GS450L (1982) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

2

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE | ~E.NO.134327 This part replaces 14310-44210.

14305-44212-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | ~E.NO.134327 This part replaces 14340-44210.

14306-44210-H01

Unavailable

6

PIPE, EXHAUST CUPULER | ~E.NO.134327

14211-44010

Unavailable

7

CLAMP | ~E.NO.134327

09402-35601

Unavailable

8

BOLT | ~E.NO.134327 This part replaces 01517-06258.

01550-06257

$2.30

9

NO DESCRIPTION AVAILABLE | E.NO.134328~ This part replaces 14310-44211.

14305-44212-H01

Unavailable

10

NO DESCRIPTION AVAILABLE | E.NO.134328~ This part replaces 14340-44211.

14306-44212-H01

Unavailable

11

CLAMP | E.NO.134328~

09402-35601

Unavailable

12

BOLT | E.NO.134328~ This part replaces 01517-06258.

01550-06257

$2.30

13

COVER, MUFFLER RH | MODEL T This part replaces 14780-44100.

14780-44900

Unavailable

13

COVER, MUFFLER RH | MODEL X,Z This part replaces 14780-44101.

14780-44900

Unavailable

14

COVER, MUFFLER LH | MODEL T This part replaces 14790-44100.

14790-44900

Unavailable

14

COVER, MUFFLER LH | MODEL X,Z This part replaces 14790-44101.

14790-44900

Unavailable

15

SCREW This part replaces 02112-05088.

02112-05087

$1.49

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

BOLT This part replaces 01107-10258.

01500-10257

$3.85

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

WASHER This part replaces 08322-21108.

08322-01107

$2.15
