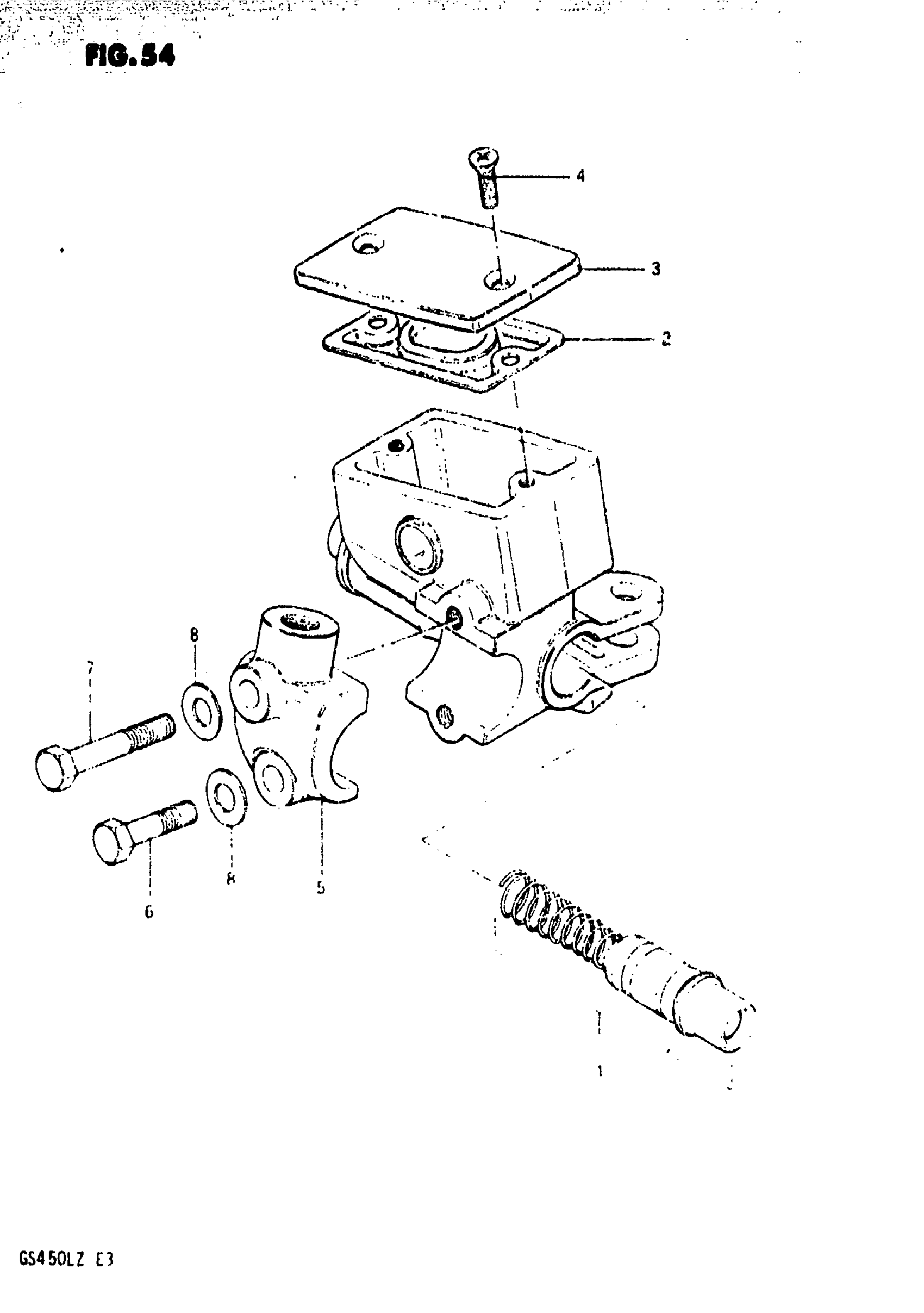

Suzuki GS450L (1982) MASTER CYLINDER (MODEL Z) Diagram

#

Description

Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 8 This part replaces 59600-44230.

59600-44X50

Unavailable

1

PISTON / CUP SET

59600-45850

$37.16

2

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$8.95

3

CAP This part replaces 69669-49330.

59669-41C00

$30.66

4

SCREW

69689-49300

$1.81

5

HOLDER

59671-44300

$19.60

6

BOLT This part replaces 01107-06258.

01500-06257

$1.97

7

BOLT This part replaces 01107-06408.

01500-0640B

$2.64

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83
