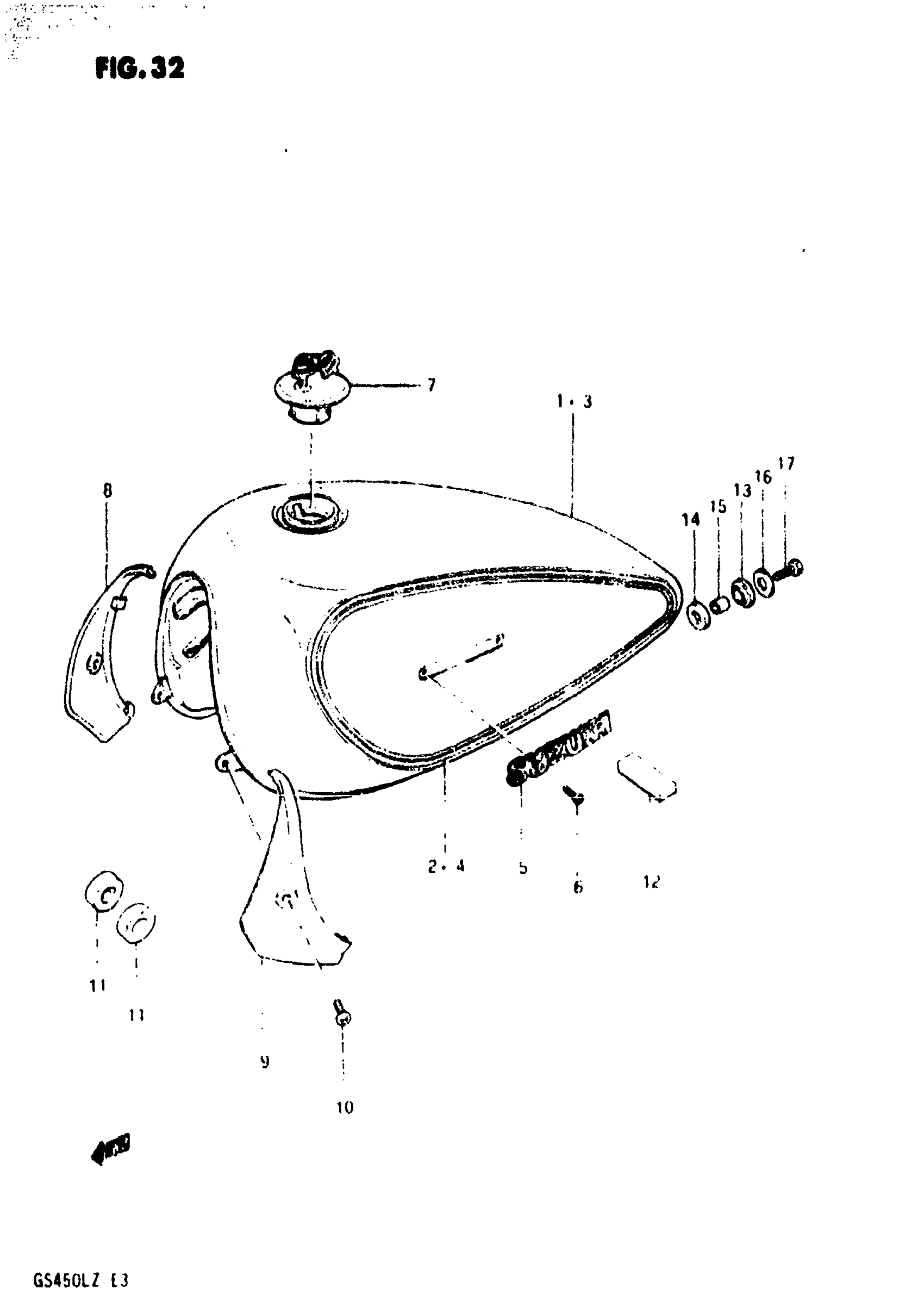

Suzuki GS450L (1982) FUEL TANK (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-44210-019.

44100-44211-019

Unavailable

2

TAPE SET

68110-44200-66Y

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-44210-00J.

44100-44211-00J

Unavailable

4

TAPE SET

68110-44200-71P

Unavailable

5

EMBLEM

68111-44200

Unavailable

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

8

COVER, FRONT RH

44271-44200

Unavailable

9

COVER, FRONT LH

44272-44200

Unavailable

10

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

11

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

12

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

$4.77

13

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

14

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

15

SPACER

09180-08067

$2.41

16

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

17

BOLT This part replaces 01107-08308.

01500-08307

$3.04
