Partiron

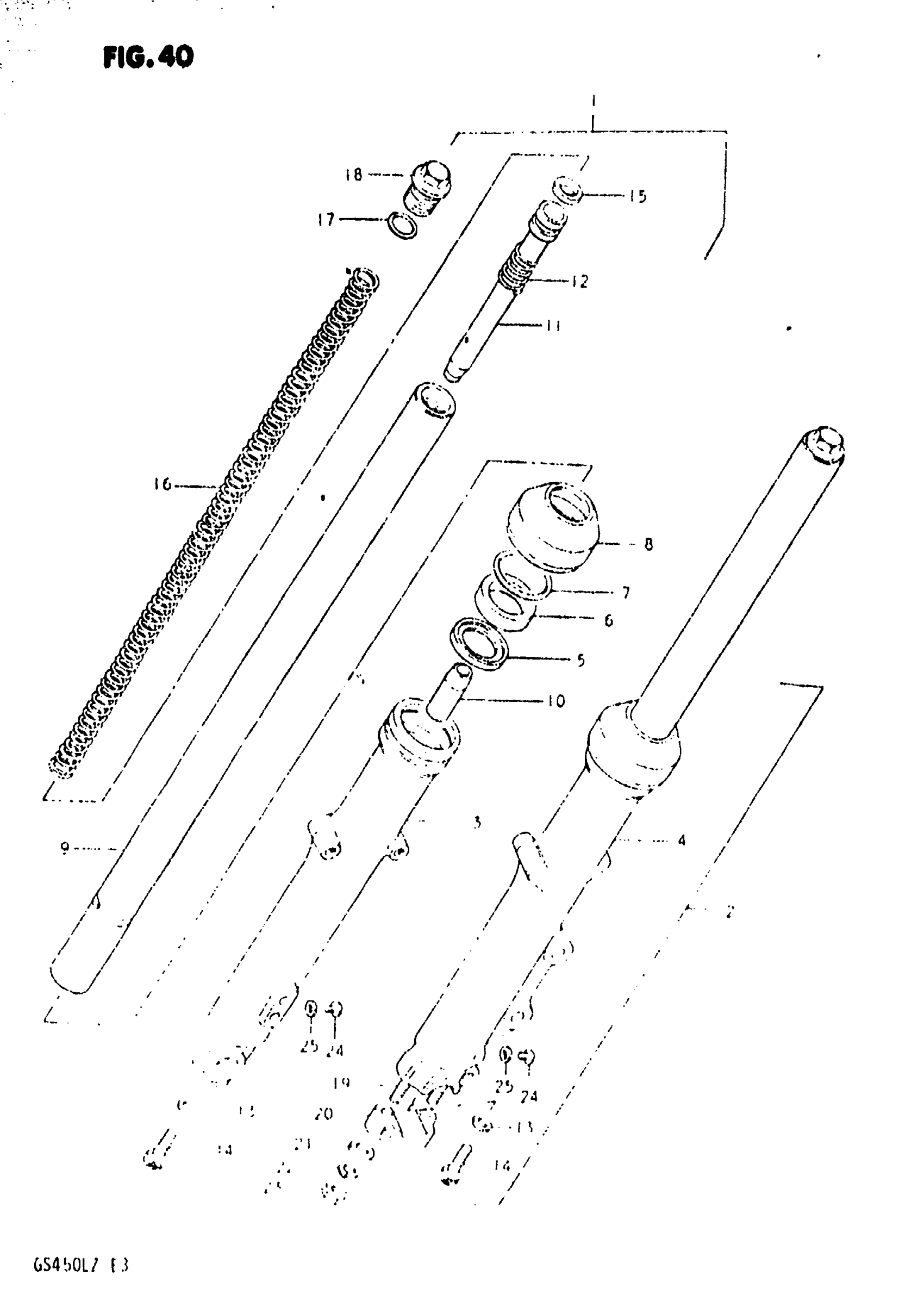

Suzuki GS450L (1982) FRONT FORK (MODEL T Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 51103-44210.

51103-44211

Unavailable

2

DUMPER ASSY, LH | Includes Item(s) 3 - 25

51104-44210

Unavailable

3

OUTER TUBE, RH

51130-44033

Unavailable

4

OUTER TUBE, LH

51140-44031

Unavailable

5

SPACER, SEAL

51168-44030

$5.22

6

OIL SEAL This part replaces 51153-44031.

51153-02B00

$20.06

7

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

8

DUST SEAL This part replaces 51571-33131.

51571-37310

$20.15

9

INNER TUBE

51110-44200

Unavailable

10

.PIECE, OIL LOCK

51195-48000

Unavailable

11

CYLINDER This part replaces 51146-44731.

51146-38300

Unavailable

12

SPRING, REBOUND

51177-36030

Unavailable

13

O RING This part replaces 51148-31030.

51148-36011

$3.56

14

BOLT

51147-48130

$4.34

15

RING, PISTON

51196-33130

$8.12

16

SPRING

51171-44210

Unavailable

17

O RING

51181-31030

$4.37

18

BOLT

51351-33130

Unavailable

19

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

20

HOLDER, AXLE

51132-31030

Unavailable

21

WASHER This part replaces 08322-21088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

24

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

25

GASKET

51183-33030

Unavailable
