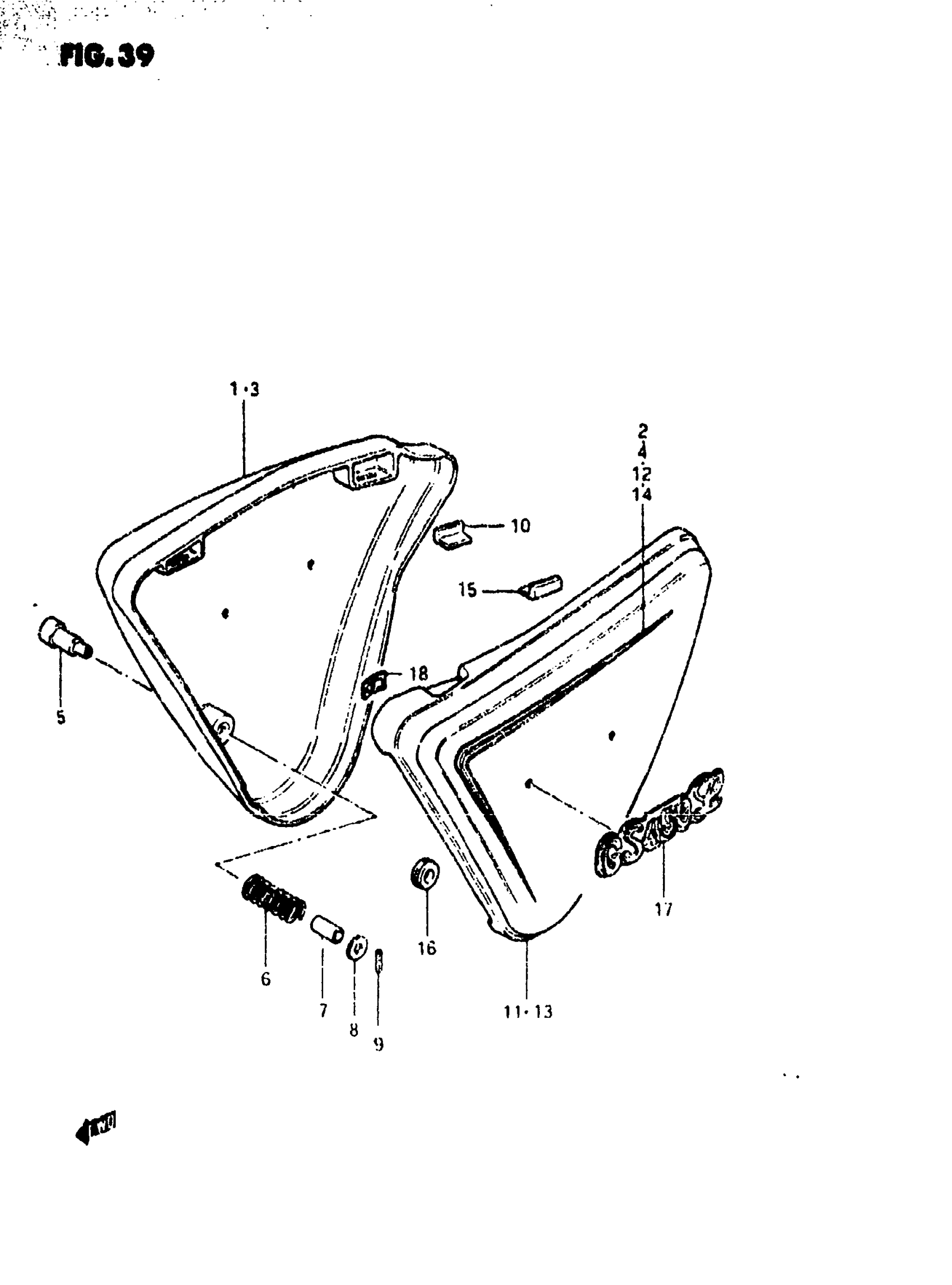

Suzuki GS450L (1982) FRAME COVER (MODEL Z) Diagram

#

Description
Price

1

COVER, FRAME RH This part replaces 47111-44210-019.

47111-44210

Unavailable

2

TAPE SET, RH

68130-44230-998

Unavailable

3

COVER,FRAME, RH This part replaces 47111-44210-05L.

47111-11400

Unavailable

4

TAPE SET, RH

68130-44230-71F

Unavailable

5

KNOB, FRAME COVER RH This part replaces 47131-11400.

47130-44200

Unavailable

6

SPRING This part replaces 09440-20009.

09440-20009-XC0

Unavailable

7

SPACER

09180-14009

Unavailable

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

9

PIN

09205-02011

$1.58

10

CUSHION, UPPER

47117-45000

$2.14

11

COVER,FRAME LH This part replaces 47211-44210-019.

47211-11400

$100.18

12

TAPE SET, LH

68140-44230-998

Unavailable

13

COVER,FRAME LH This part replaces 47211-44210-05L.

47211-11400

$100.18

14

TAPE SET, LH

68140-44230-71F

Unavailable

15

CUSHION, UPPER

47117-45000

$2.14

16

CUSHION, LOWER

09320-08018

$3.04

17

EMBLEM

68131-44240

Unavailable

18

NUT

09148-03002

$2.15
