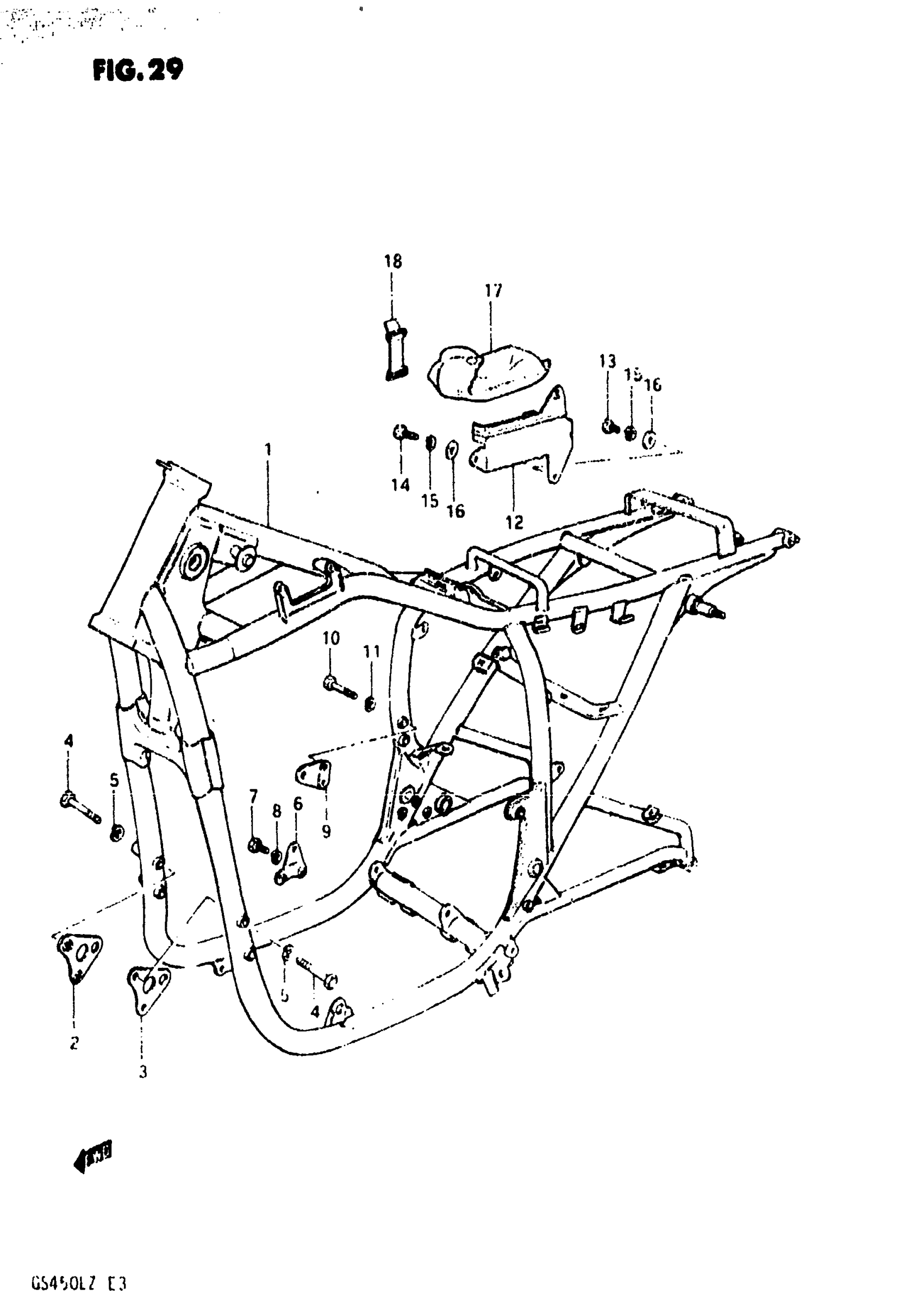

Suzuki GS450L (1982) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-44210-019.

41100-44250-019

Unavailable

2

PLATE, NO. 1 RH (BLACK)

41930-44000-019

Unavailable

3

PLATE, NO. 1 LH (BLACK)

41940-44000-019

Unavailable

4

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, NO.2 RH (BLACK)

41920-44100-019

Unavailable

7

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

PLATE, NO.4 RH (BLACK)

41910-44000-019

Unavailable

10

BOLT This part replaces 01107-08458.

01500-08453

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

HOLDER, TOOL

41551-44100

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

TOOL SET | MODEL T This part replaces 09800-00193.

09800-06801

Unavailable

17

TOOL SET | MODEL X This part replaces 09800-00811.

09800-06801

Unavailable

17

TOOL SET | MODEL Z This part replaces 09800-06800.

09800-06801

Unavailable

18

BAND This part replaces 09462-00072.

09462-00094

$3.16
