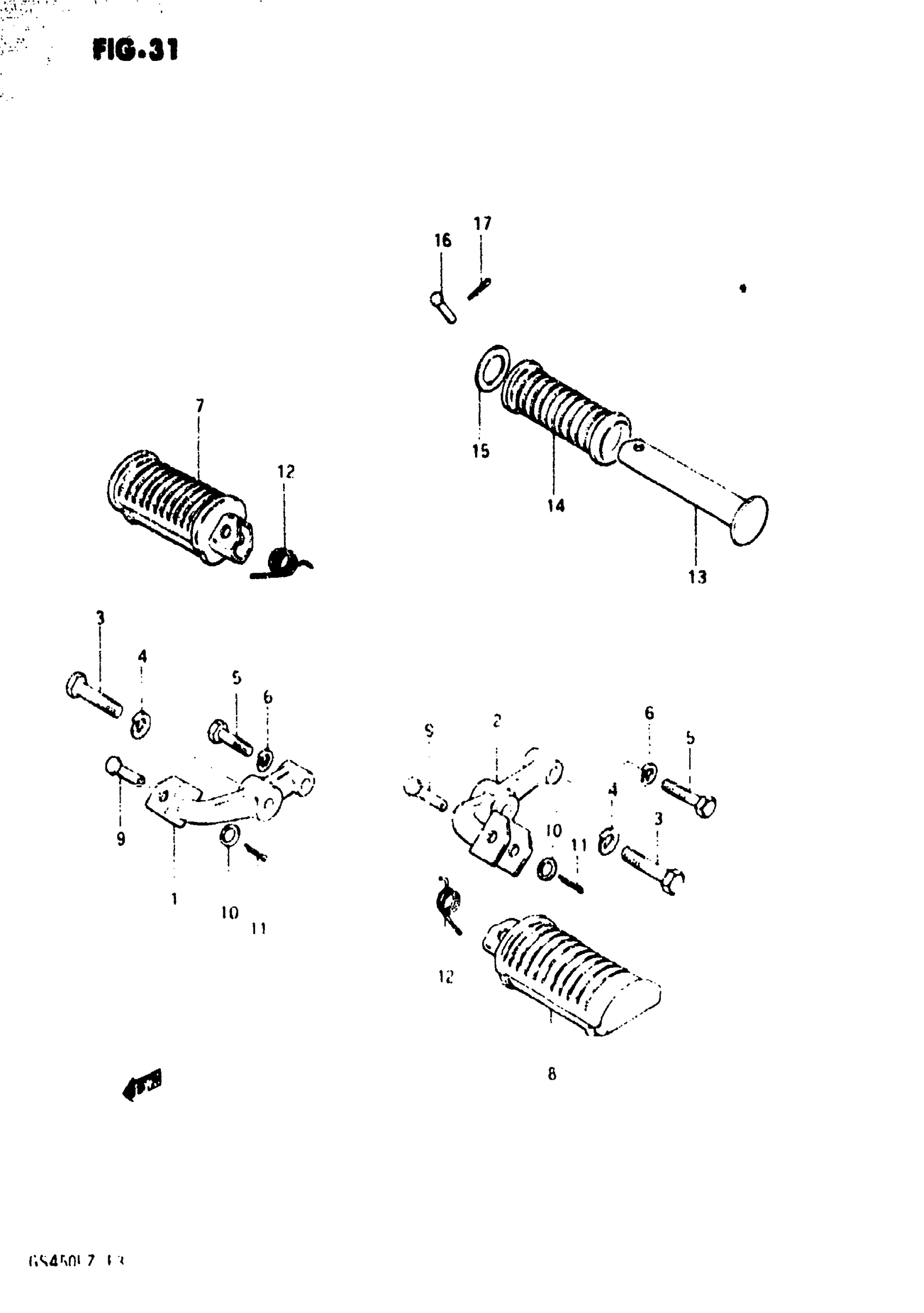

Suzuki GS450L (1982) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43510-44200-019

Unavailable

2

BAR, FOOTREST LH (BLACK)

43520-44010-019

Unavailable

3

BOLT 10X 40 This part replaces 09100-10117.

09100-10184

$3.16

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING This part replaces 09448-14013.

09448-14012

$3.04

13

BAR, PILLION FOOTREST

43610-44000

Unavailable

14

RUBBER

43612-03001

$5.15

15

WASHER This part replaces 09160-19006.

09160-19024

$2.65

16

PIN

09200-06010

$1.72

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
