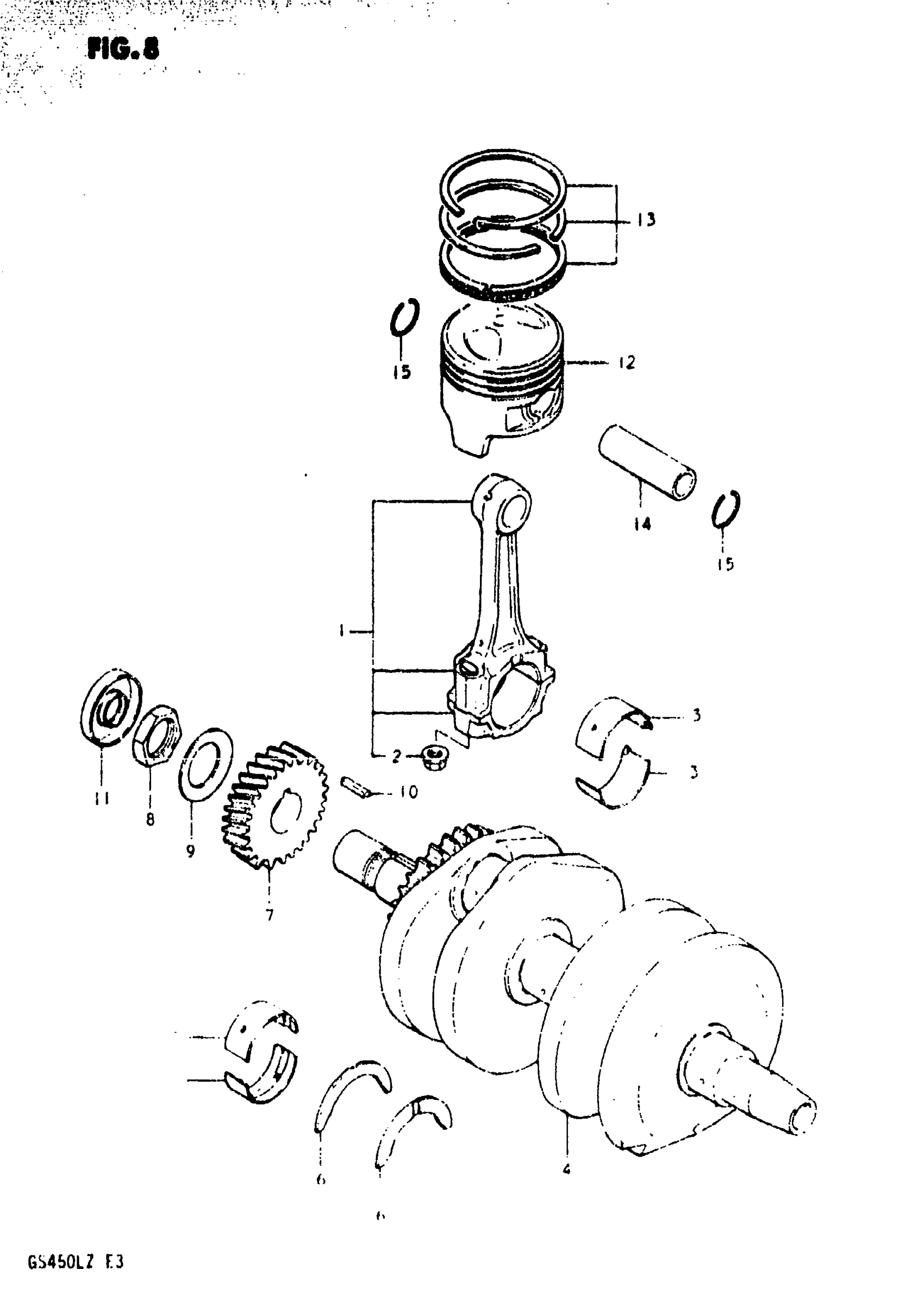

Suzuki GS450L (1982) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44100.

12160-44101

$163.57

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-44100-010.

12164-01D01-0A0

$17.65

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-44100-020.

12164-01D01-0B0

$17.65

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-44100-030.

12164-01D01-0C0

$17.32

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-44100-040.

12164-01D01-0D0

$17.65

3

BEARING, CRANK PIN | US:0.25

12164-44100-025

$15.98

3

BEARING, CRANK PIN | US:0.50

12164-44100-050

Unavailable

4

CRANKSHAFT | MODEL T,X This part replaces 12220-44100.

12220-01D02

Unavailable

4

CRANKSHAFT | MODEL Z This part replaces 12220-44101.

12220-01D02

Unavailable

5

BEARING (GREEN) This part replaces 12229-44100-010.

12229-01D01-0A0

$10.87

5

BEARING (BLACK) This part replaces 12229-44100-020.

12229-01D01-0B0

$10.87

5

BEARING (BROWN) This part replaces 12229-44100-030.

12229-01D01-0C0

$12.78

5

BEARING (YELLOW) This part replaces 12229-44100-040.

12229-01D01-0D0

$12.78

5

BEARING, CRANKSHAFT | US:0.25

12229-44100-025

Unavailable

5

BEARING, CRANKSHAFT | US:0.50

12229-44100-050

Unavailable

6

BEARING, THRUST This part replaces 12228-44101.

12228-44106

$10.07

7

GEAR, PRIMARY DRIVE (NT:28)

21111-44100

Unavailable

8

NUT

09140-24007

$3.89

9

WASHER

09164-25001

Unavailable

10

KEY

08341-31059

$2.48

11

OIL SEAL, RH (22X40X8) This part replaces 09283-22013.

09283-22015

$9.72

12

PISTON (STD)

12111-44100

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12111-44100-050.

12103-44810-050

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12111-44100-100.

12103-44810-100

Unavailable

13

PISTON RING SET (STD)

12140-44110

Unavailable

13

PISTON RING SET (OS:0.5)

12140-44110-050

Unavailable

13

PISTON RING SET (OS:1.0) This part replaces 12140-44110-100.

12140-44111-100

Unavailable

14

PIN, PISTON This part replaces 12151-92201.

12151-45501

$17.37

15

CIRCLIP

09381-18002

$1.67
