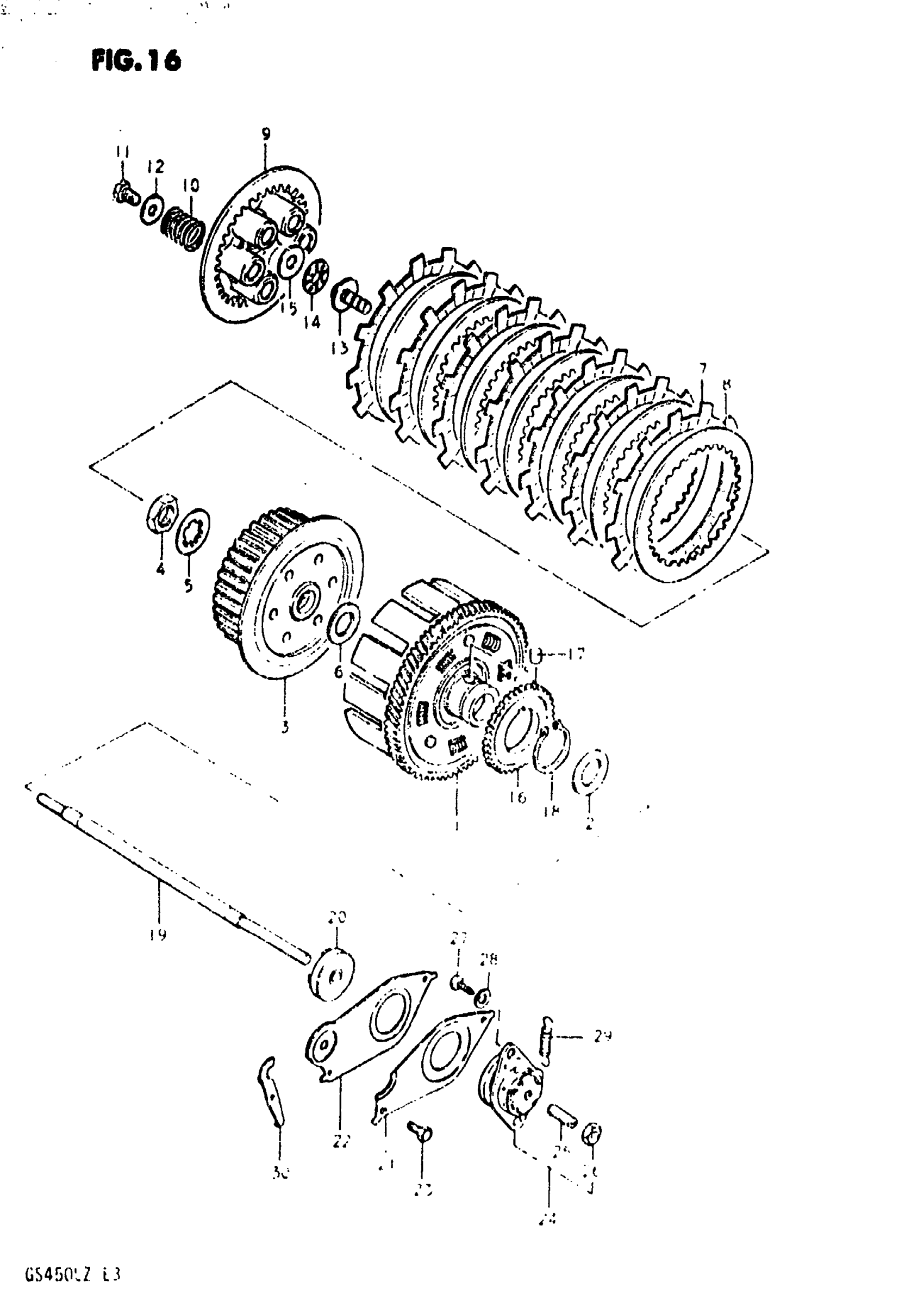

Suzuki GS450L (1982) CLUTCH Diagram

GEAR, PRIMARY DRIVEN (NT:76) This part replaces 21200-44100.

21200-44102

Unavailable

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

HUB,CLUTCH SLEEVE This part replaces 21411-44100.

21411-44101

$73.22

NUT This part replaces 09140-20002.

09140-20001

$3.37

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

WASHER

09160-20015

$5.88

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

PLATE, PRESSURE | MODEL T,X This part replaces 21462-16500.

21462-14301

$59.33

PLATE, PRESSURE | MODEL Z This part replaces 21462-16501.

21462-14301

$59.33

SPRING This part replaces 09440-19013.

09440-19027

$5.10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

PIECE, PUSH

23121-44100

$25.75

BEARING

09263-15003

$8.29

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

GEAR, OIL PUMP DRIVE (NT:38)

16321-44001

Unavailable

PIN

09261-06002

$1.53

CLIP This part replaces 08331-31389.

08331-31383

$3.42

ROD, PUSH

23100-44101

Unavailable

OIL SEAL (6x34x8) | FLANGED TYPE

09283-06002

Unavailable

OIL SEAL (6x34x7x10) | WITH HOLDER

09285-06011

$8.24

HOLDER, OIL SEAL | FOR 09283-06002

23117-44100

Unavailable

HOLDER, OIL SEAL | FOR 09285-06011 This part replaces 23117-44101.

23117-44102

$7.22

BOLT This part replaces 01107-06128.

01500-06127

$1.97

SCREW ASSY, RELEASE | Includes Item(s) 25 - 26 This part replaces 23200-44100.

23200-44101

Unavailable

SCREW This part replaces 09134-06001.

09134-06010

$3.12

.NUT This part replaces 08310-22068.

08310-00067

$2.13

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

WASHER This part replaces 08322-21068.

08322-01067

$2.13

SPRING

09443-08001

$2.92

GUIDE PUSH ROD OIL SEAL | MODEL T

23121-44990

Unavailable
