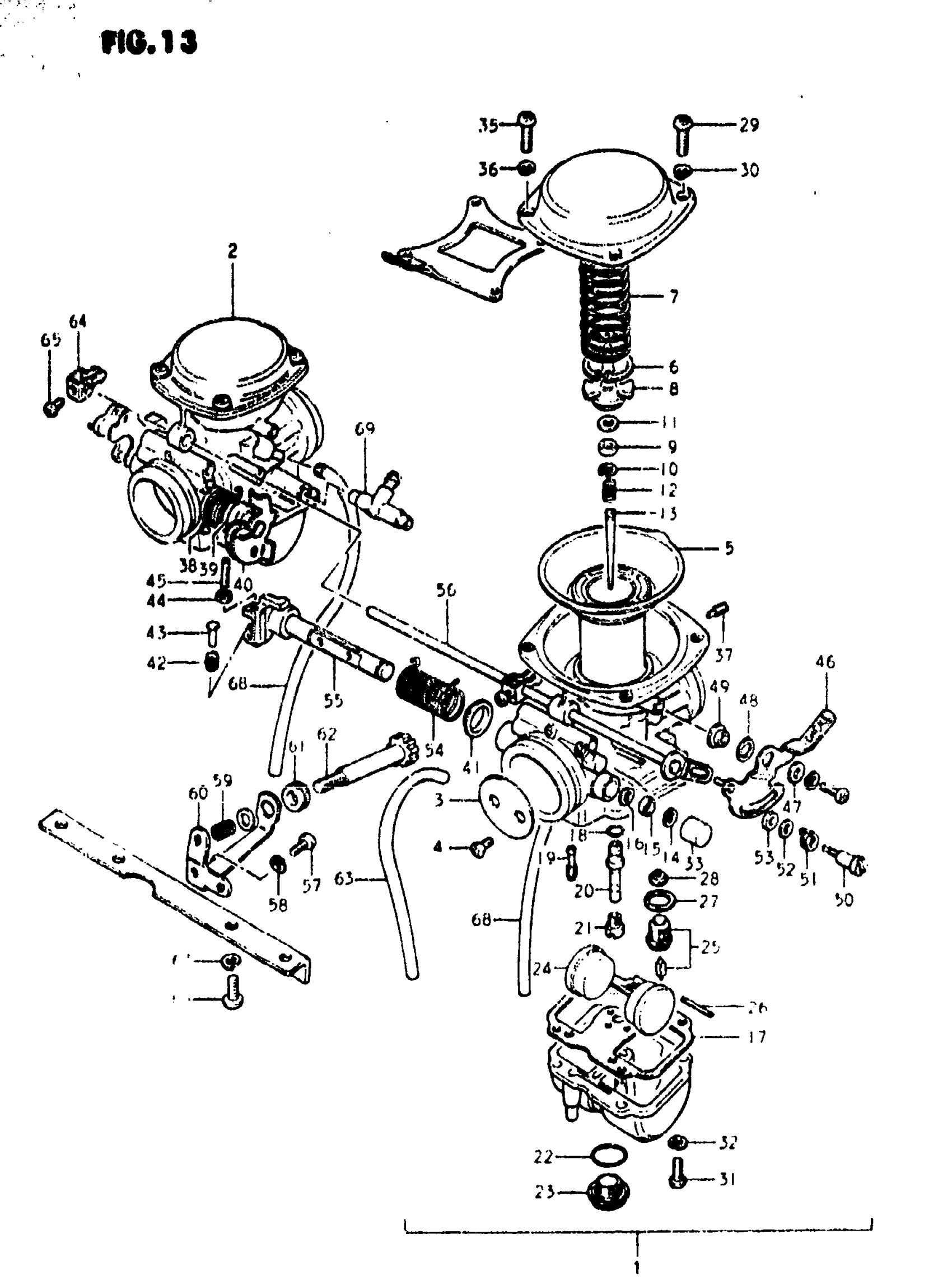

Suzuki GS450L (1982) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 69

13200-44110

Unavailable

1

CARBURETOR ASSY, LH

13201-44110

Unavailable

2

CARBURETOR ASSY, RH

13202-44110

Unavailable

3

VALVE, THROTTLE (135)

13551-44110

Unavailable

4

SCREW

13604-44080

$2.92

5

DIAPHRAGM

13500-44110

Unavailable

6

CLIP

13581-44030

$6.78

7

SPRING

13503-44030

Unavailable

8

HOLDER, GUIDE

13389-44030

Unavailable

9

RING

13387-44030

$5.83

10

E RING This part replaces 13394-44010.

13394-31210

$4.64

11

WASHER

13382-44030

$3.71

12

SPRING

13388-44030

$8.12

13

NEEDLE, JET (4C2)

13383-44110

Unavailable

14

E RING

13617-44080

$2.90

15

GASKET

13557-47070

$3.59

16

SEAL This part replaces 13556-44010.

13556-05A11

$3.59

17

GASKET

13251-44012

Unavailable

18

O RING, NOZZLE This part replaces 13295-31210.

09280-03003

$1.91

19

JET, PILOT (17.5)

09492-17005

Unavailable

20

JET, NEEDLE (Y-6)

09494-00239

Unavailable

21

JET, MAIN (115)

09491-23012

$9.69

22

O RING This part replaces 13246-44010.

13249-41310

$4.40

23

PLUG, DRAIN

13247-32210

$15.23

24

FLOAT

13252-31210

Unavailable

25

VALVE, NEEDLE

13370-44010

Unavailable

26

.PIN, FLOAT

13254-01010

$3.62

27

WASHER

13392-16600

$1.94

28

FILTER This part replaces 13376-44080.

13376-19F00

$10.28

29

SCREW This part replaces 02111-05158.

02112-05167

$1.97

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

31

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

33

CAP

13578-47070

$4.52

34

GASKET

13436-44010

Unavailable

35

SCREW This part replaces 02112-05168.

02112-05167

$1.97

36

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

37

JET, PILOT AIR (1.6)

09493-32003

$16.87

38

SPRING | RH

13573-31610

Unavailable

39

RING | RH

13574-44110

Unavailable

40

SHAFT | RH

13550-44120

Unavailable

41

RING | LH

13387-44110

Unavailable

42

SPRING

13268-44110

Unavailable

43

PIN

13563-44110

Unavailable

44

NUT

13607-47070

$3.13

45

SCREW

13605-47080

$7.77

46

LEVER, STARTER

13413-44110

Unavailable

47

WASHER This part replaces 13432-44110.

09160-04015

Unavailable

48

WASHER

13615-44010

Unavailable

49

RING

13432-31210

Unavailable

50

SCREW This part replaces 13605-44110.

13438-33110

$6.38

51

SPRING

13388-44110

Unavailable

52

WASHER This part replaces 13432-44120.

13615-43010

$3.25

53

WASHER

13432-33110

$4.43

54

SPRING

13573-44110

Unavailable

55

SHAFT

13550-44110

Unavailable

56

SHAFT

13410-44110

Unavailable

57

SCREW This part replaces 02112-05088.

02112-05087

$1.49

58

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

59

SPRING

13271-93011

$5.32

60

BRACKET

13627-44110

Unavailable

61

CAP

13681-44110

Unavailable

62

ADJUSTER

13267-47070

Unavailable

63

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

$9.48

64

ARM, STARTER

13422-44110

Unavailable

65

SCREW This part replaces 13605-44080.

13605-31210

$7.37

66

SCREW This part replaces 02112-06128.

02112-06127

$1.84

67

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

68

HOSE(4.5X8.5X60 This part replaces 13683-44010.

09355-45001-600

$9.48

69

NIPPLE

13685-44110

Unavailable
