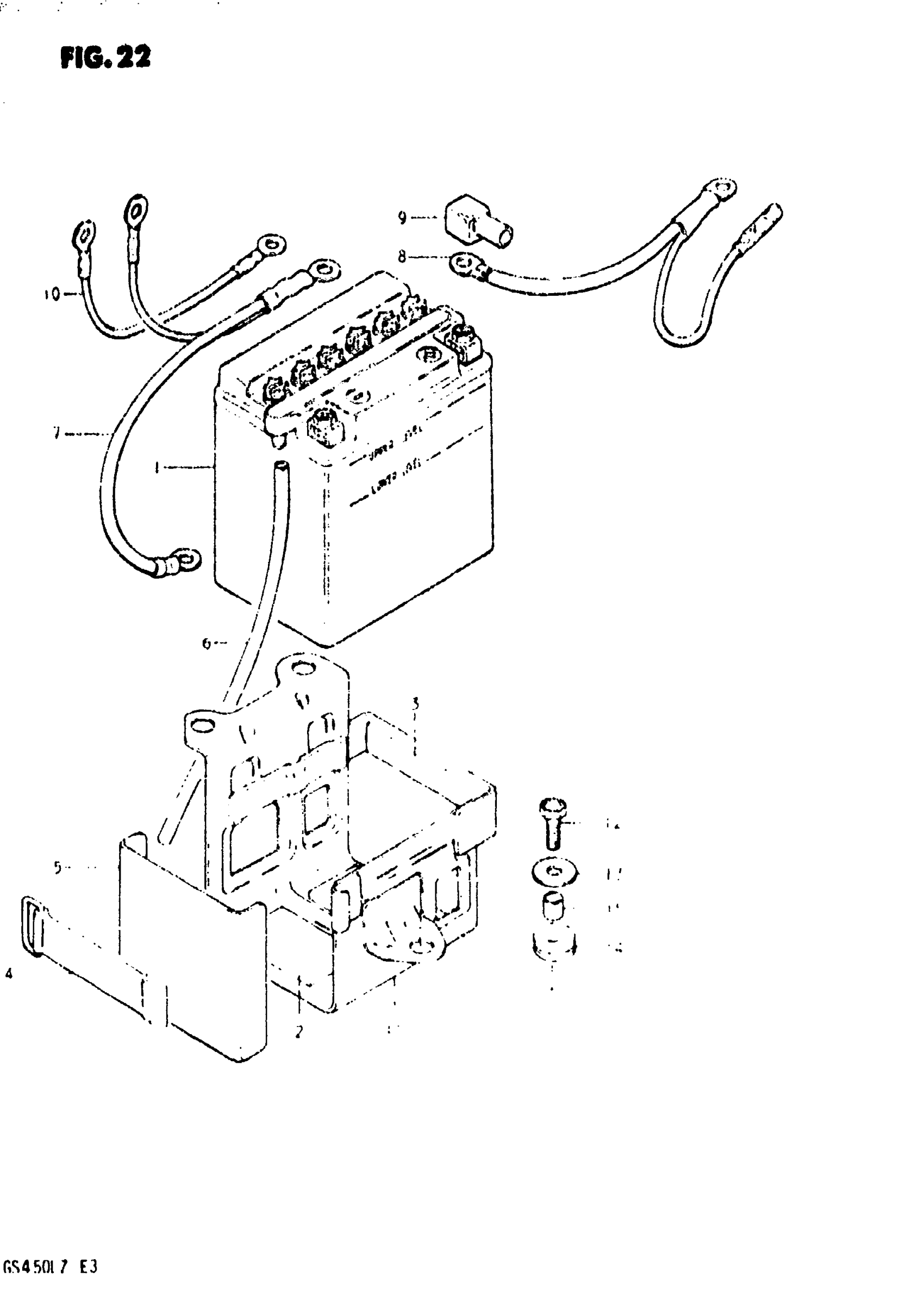

Suzuki GS450L (1982) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,10AH)

33610-44010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 33651-25001.

94268-24A00

Unavailable

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

BAND

09462-00008

$4.77

5

COVER, BATTERY This part replaces 33661-44100.

33661-44101

Unavailable

6

HOSE,BATTERY EX This part replaces 33680-08401.

33680-16A11

$6.78

7

LEAD WIRE, (-) | MODEL T This part replaces 33850-44101.

33850-03201

$9.94

7

LEAD WIRE, (-) | MODEL X,Z This part replaces 33850-44120.

33850-03201

$9.94

8

WIRE,BATTERY PL | MODEL T This part replaces 33820-44100.

33820-44B01

Unavailable

8

WIRE,BATTERY PL | MODEL X,Z This part replaces 33820-44101.

33820-44B01

Unavailable

9

CAP, TERMINAL

33624-45000

$4.58

10

LEAD WIRE, ENGINE (-) This part replaces 36852-44600.

36851-02331

Unavailable

11

HOLDER, BATTERY

41540-44100

Unavailable

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03
