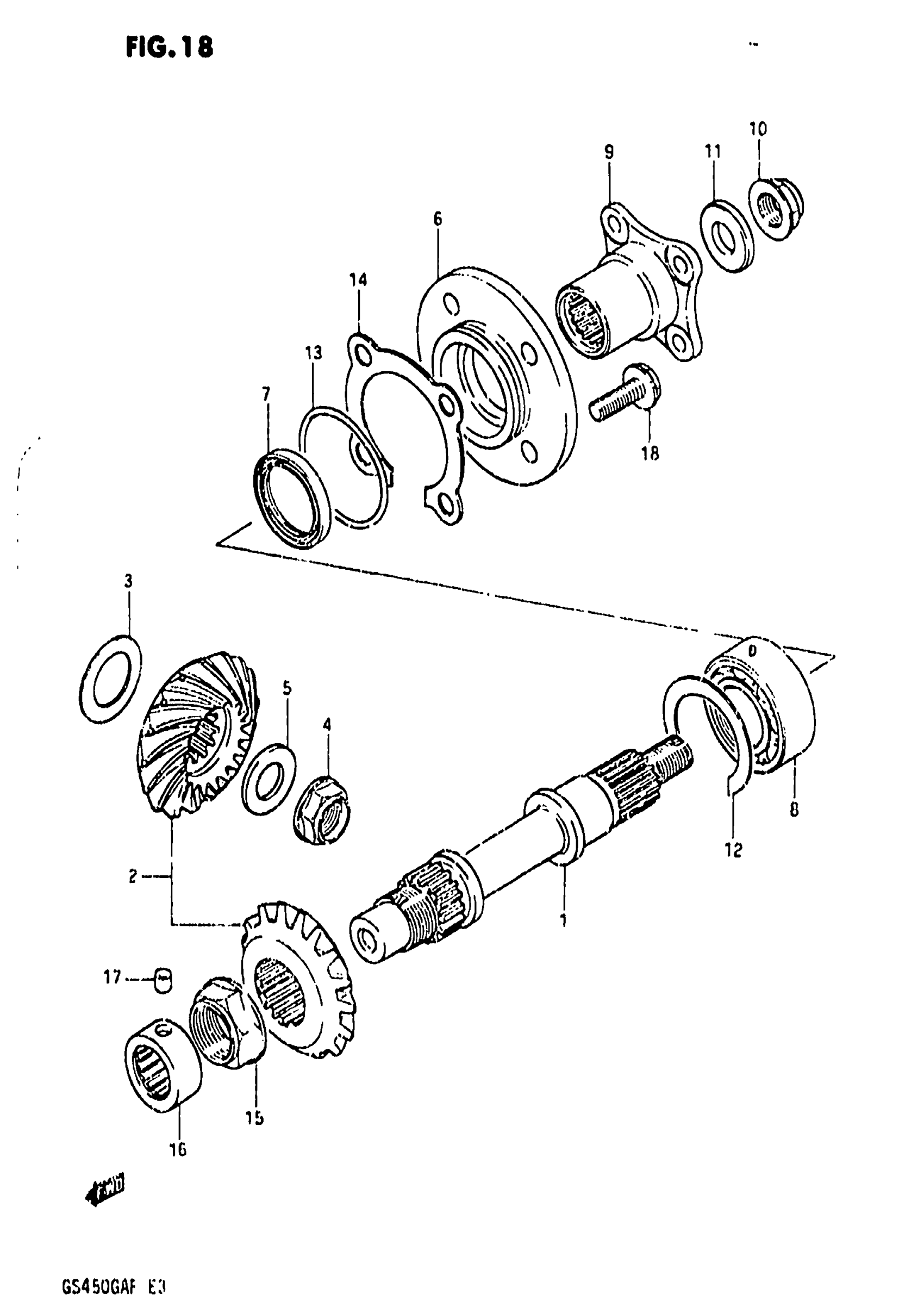

Suzuki GS450GA (1985) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

SHAFT, SECONDARY DRIVE GEAR

24961-44500

Unavailable

2

GEAR SET, SECONDARY DRIVE GEAR | NT:17/16

24900-44810

Unavailable

3

SHIM (T:0.90)

24935-44500

Unavailable

3

SHIM (T:0.95)

24935-44510

Unavailable

3

SHIM (T:1.00)

24935-44520

Unavailable

3

SHIM (T:1.10)

24935-44530

Unavailable

3

SHIM (T:1.15)

24935-44540

Unavailable

4

NUT

09159-16005

Unavailable

5

WASHER

09160-16026

$5.00

6

HOUSING, SECONDARY DRIVE GEAR

24941-44500

Unavailable

7

OIL SEAL

09283-32020

Unavailable

8

BEARING

09267-25002

Unavailable

9

FLANCE, UNIVERSAL JOINT

24951-44500

Unavailable

10

NUT

09159-14010

$14.12

11

WASHER

09160-14021

$6.63

12

SHIM (T:0.30)

24945-44500

Unavailable

12

SHIM (T:0.35)

24945-44510

Unavailable

12

SHIM (T:0.40)

24945-44520

Unavailable

12

SHIM (T:0.50)

24945-44530

Unavailable

12

SHIM (T:0.60)

24945-44540

Unavailable

13

O RING

09280-48005

Unavailable

14

SHIM (T:0.30)

24955-44500

Unavailable

14

SHIM (T:0.35)

24955-44510

Unavailable

14

SHIM (T:0.40)

24955-44520

Unavailable

14

SHIM (T:0.50)

24955-44530

Unavailable

14

SHIM (T:060)

24955-44540

Unavailable

15

NUT

09159-24003

Unavailable

16

BEARING

09263-20038

$55.95

17

PIN

04221-07129

$1.86

18

BOLT This part replaces 01517-08258.

01550-08257

$2.81
