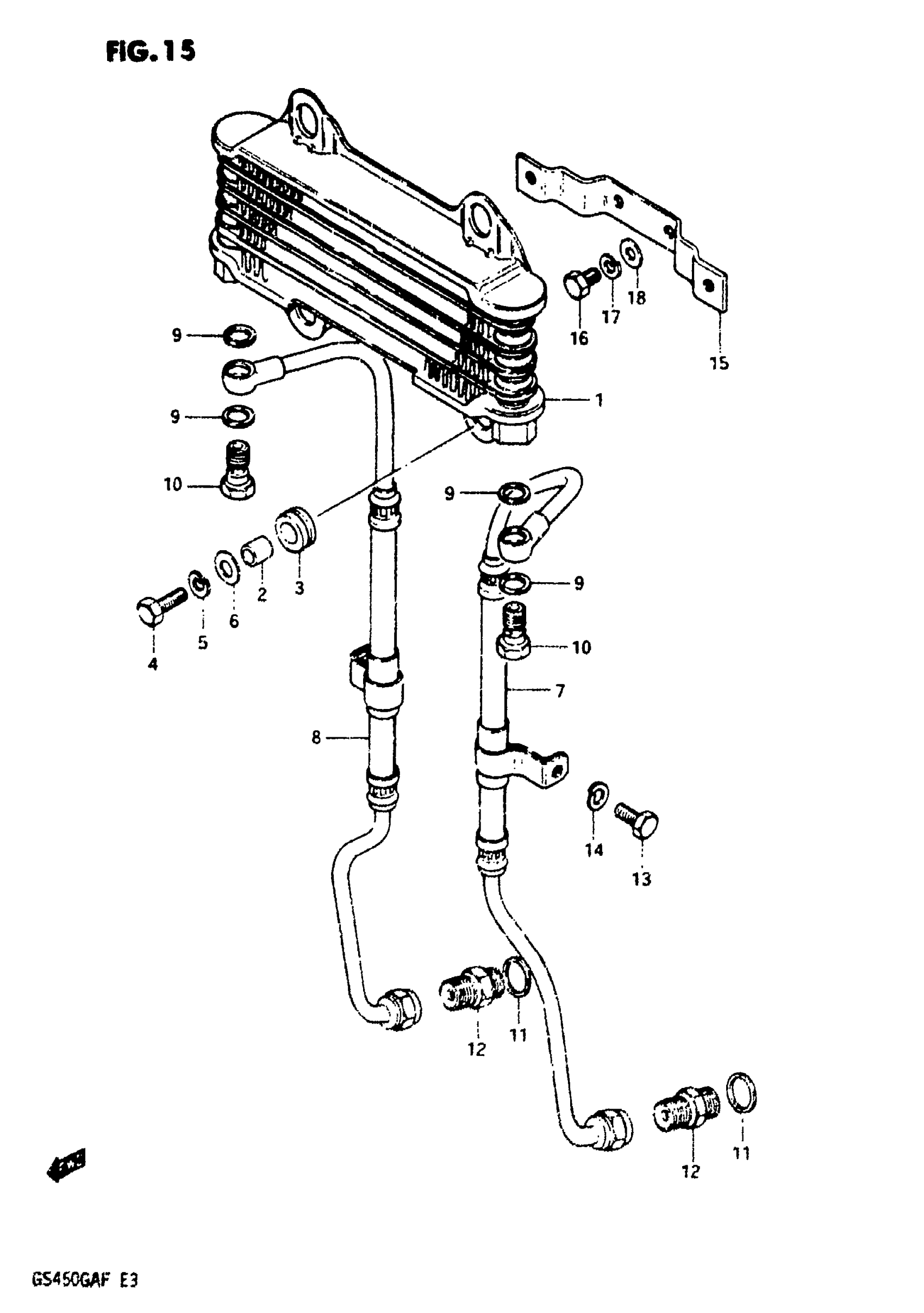

Suzuki GS450GA (1985) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, ENGINE OIL This part replaces 16600-44500.

16600-31300

Unavailable

2

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

3

CUSHION

09320-10015

$2.54

4

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

5

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

6

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

7

HOSE, OIL LH

16460-44500

Unavailable

8

HOSE, OIL RH

16470-44500

Unavailable

9

GASKET

09168-12010

$3.07

10

UNION

09360-12005

Unavailable

11

GASKET

09168-14011

$1.85

12

UNION

09360-14006

Unavailable

13

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

14

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

15

BRACKET

16620-44500

Unavailable

16

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

17

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

18

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
