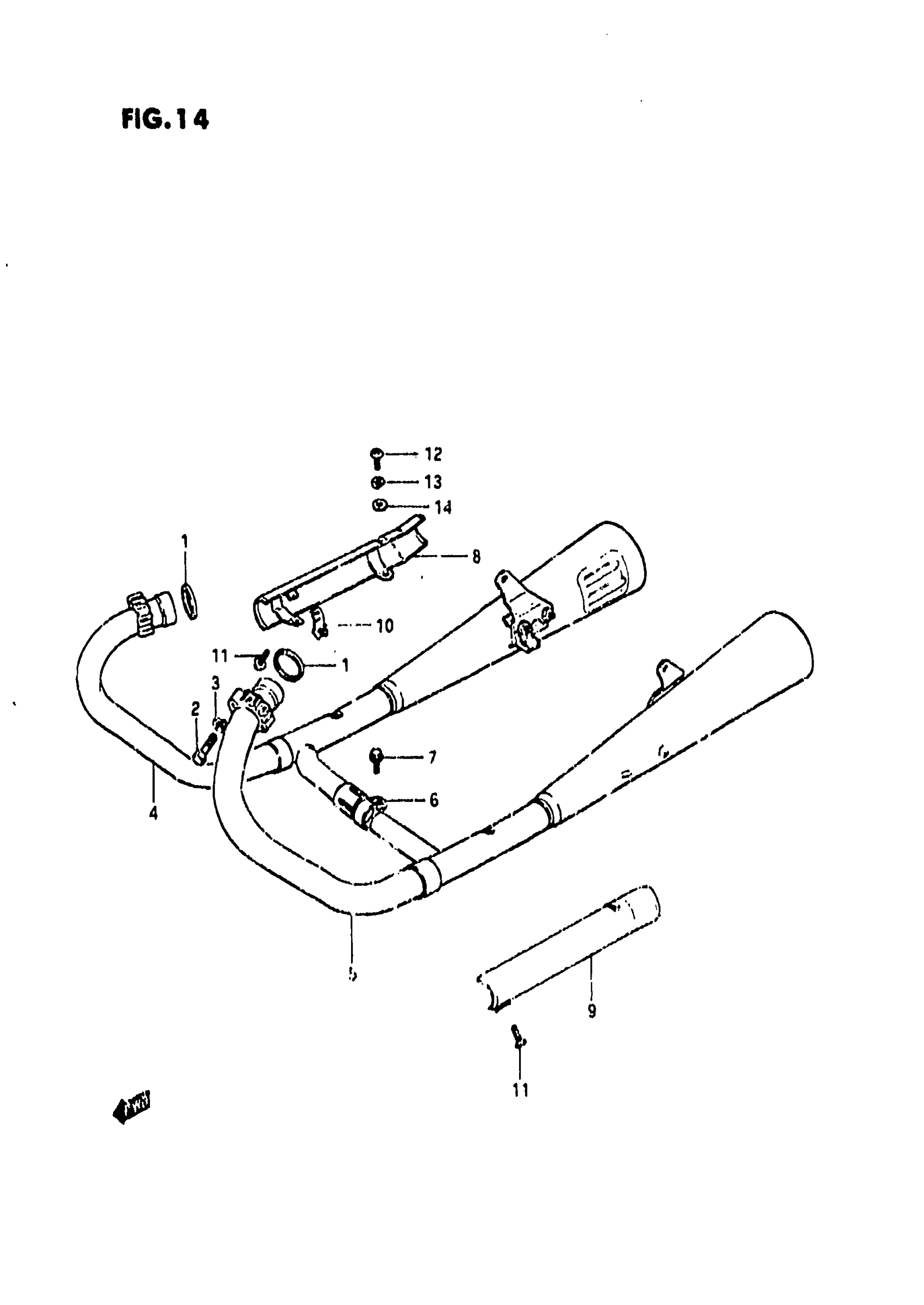

Suzuki GS450GA (1985) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

2

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

4

MUFFLER, RH

14301-44510-H01

Unavailable

5

MUFFLER, LH

14302-44510-H01

Unavailable

6

CLAMP

09402-35601

Unavailable

7

BOLT This part replaces 01517-06258.

01550-06257

$2.30

8

COVER, MUFFLER RH

14780-44500

Unavailable

9

COVER, MUFFLER LH

14790-44500

Unavailable

10

CLAMP

14785-44100

Unavailable

11

SCREW This part replaces 02112-05168.

02112-05167

$1.97

12

SCREW This part replaces 02112-05088.

02112-05087

$1.49

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13
