Partiron

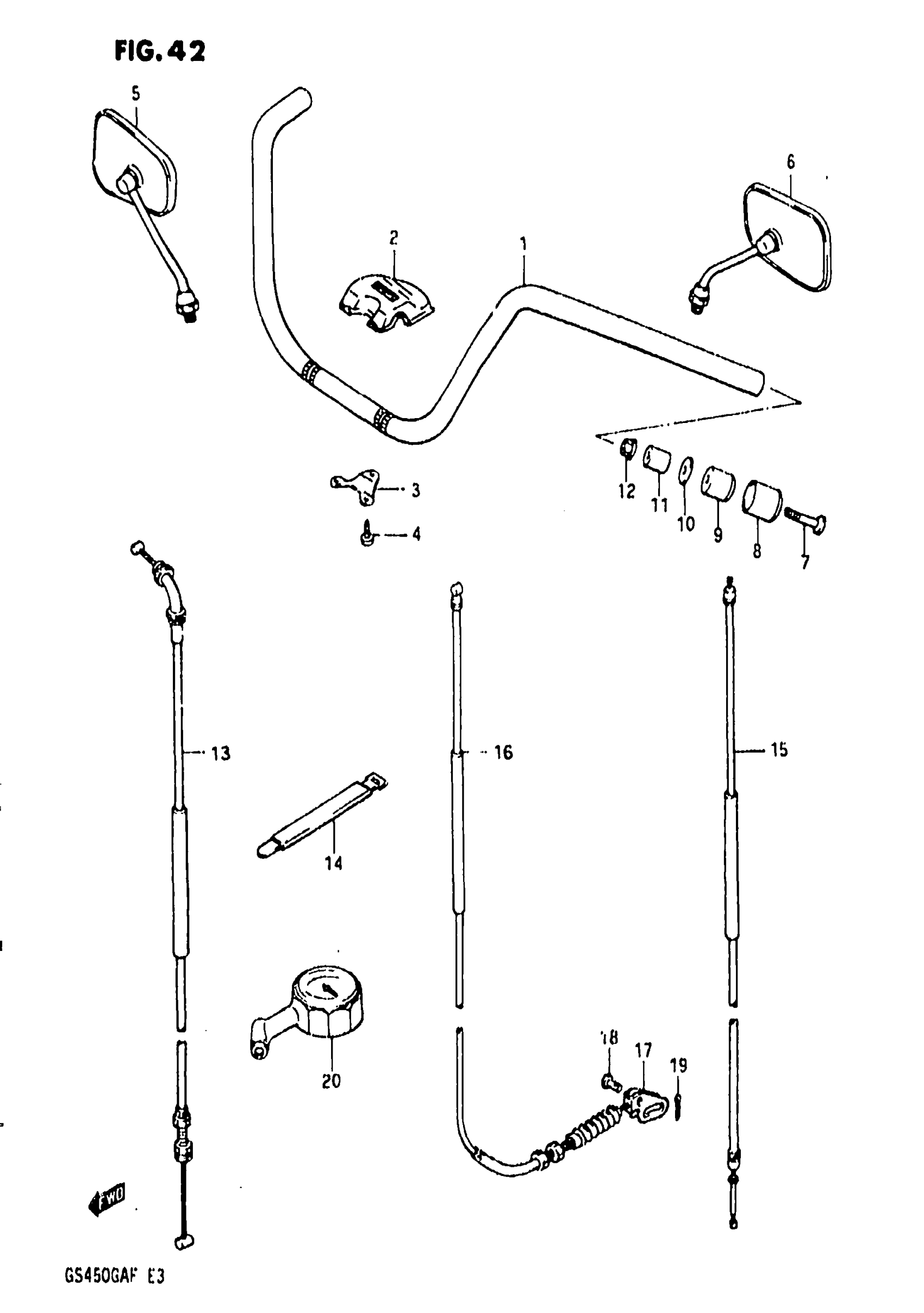

Suzuki GS450GA (1985) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-11900.

56111-11910

Unavailable

2

COVER, STEERING HEAD

56171-45900

Unavailable

3

BRACKET

56175-39001

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 09132-04020.

09132-04026

Unavailable

5

MIRROR ASSY, REAR VIEW RH This part replaces 56500-05A01.

56500-05A02

Unavailable

6

MIRROR ASSY, REAR VIEW LH This part replaces 56600-05A01.

56600-05A02

Unavailable

7

SCREW This part replaces 02132-06558.

02122-0655B

$2.83

8

NO DESCRIPTION AVAILABLE This part replaces 56274-34400.

56274-19D10

Unavailable

9

BALANCER

56271-49410

$30.95

10

SPACER This part replaces 56275-34400.

56275-34401

$4.02

11

EXPANDER

56272-44500

$4.42

12

NUT

09159-06024

$2.11

13

CABLE, THROTTIE

58300-44201

Unavailable

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

15

CABLE, STARTER

58410-44510

Unavailable

16

CABLE, PARKING BRAKE

58800-44510

Unavailable

17

BRACKET, PARKING BRAKE

58189-44500

Unavailable

18

PIN

09200-06013

$2.00

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

20

GAUGE, AIR PRESSURE

96200-41330

Unavailable
