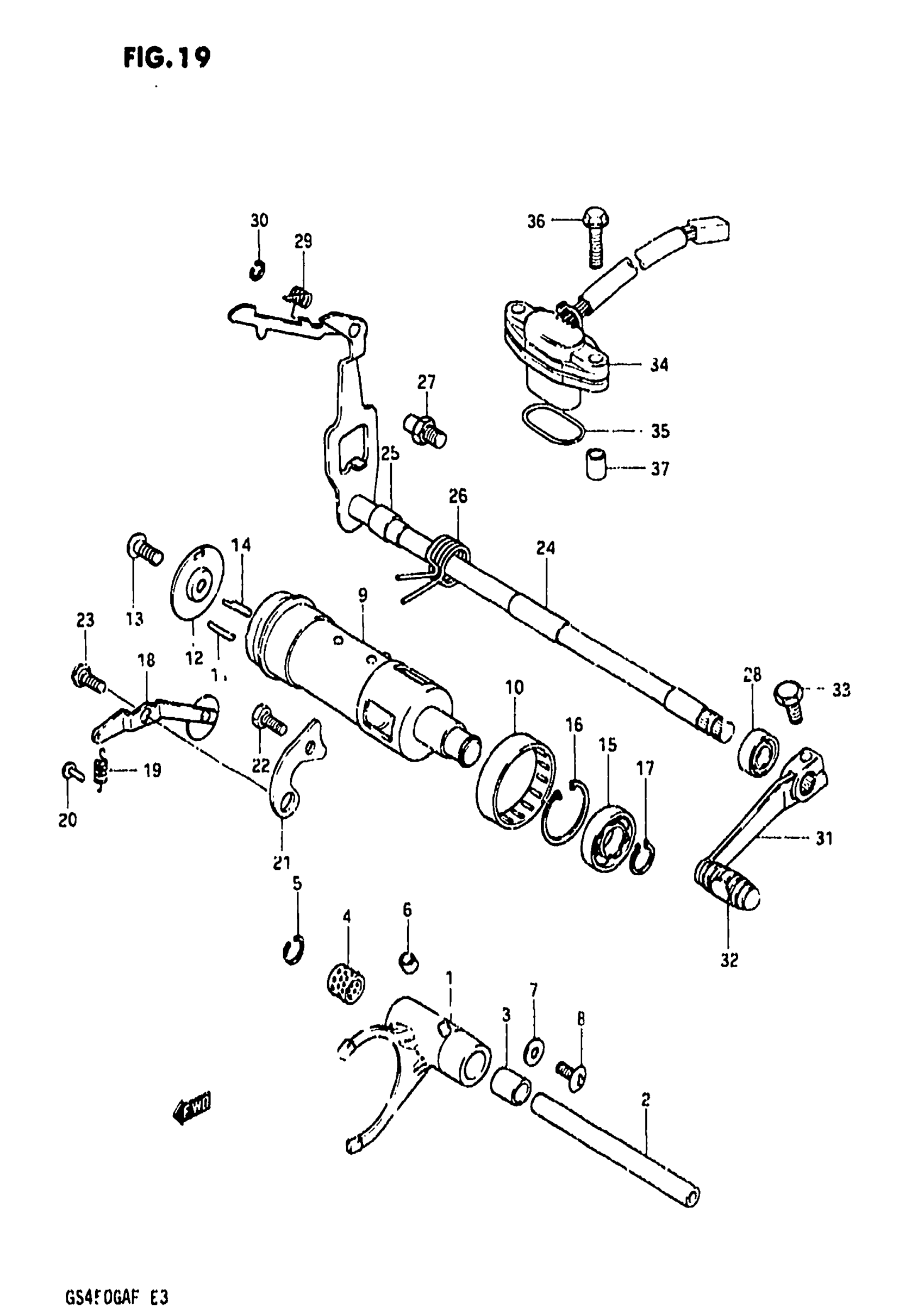

Suzuki GS450GA (1985) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING

25211-44500

Unavailable

2

SHAFT, GEAR SHIFTING FORK

25411-24501

Unavailable

3

SPACER,10.2X14X This part replaces 09180-10044.

09180-10138

$3.85

4

BEARING

09269-10002

Unavailable

5

CIRCLIP

09381-14002

Unavailable

6

ROLLER This part replaces 09180-06108.

09180-06124

Unavailable

7

WASHER

08211-06141

$1.59

8

STOPPER

02142-06108

$2.45

9

CAM, GEAR SHIFTING

25310-44501

Unavailable

10

BEARING

09263-40001

$29.53

11

PI

09261-04001

$1.72

12

RETAINER

25322-44000

Unavailable

13

SCREW This part replaces 02112-06168.

02112-06167

$1.49

14

PIN

09209-04013

Unavailable

15

BEARING (15X35X11) This part replaces 08110-62020.

09262-15031

Unavailable

16

CIRCLIP This part replaces 08331-21358.

08331-41359

$2.26

17

CIRCLIP This part replaces 08331-31159.

08331-3115A

$2.25

18

STOPPER, CAM

25350-44000

Unavailable

19

SPRING

09443-09007

$2.56

20

PIN This part replaces 09220-04001.

09223-04001

$1.68

21

GUIDE, GEAR SHIFTING CAM

25341-33300

Unavailable

22

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

23

BOLT This part replaces 09111-06019.

09111-06054

$3.70

24

SHAFT, GEAR SHIFTING

25510-44501

Unavailable

25

SPACER

09180-12068

$3.16

26

SPRING This part replaces 09444-26012.

09444-26013

$3.10

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

29

SPRING

09448-13008

$3.74

30

E RING This part replaces 08332-11078.

08332-1107A

$1.78

31

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 32

25600-44500

Unavailable

32

COVER This part replaces 25652-49000.

25652-20C00

$5.44

33

BOLT This part replaces 09100-06091.

01500-06207

$2.28

34

BODY, SWITCH

37720-44510

Unavailable

35

O RING

37722-44500

Unavailable

36

BOLT

09103-05001

Unavailable

37

KNOCK PIN

09206-08001

$1.78
