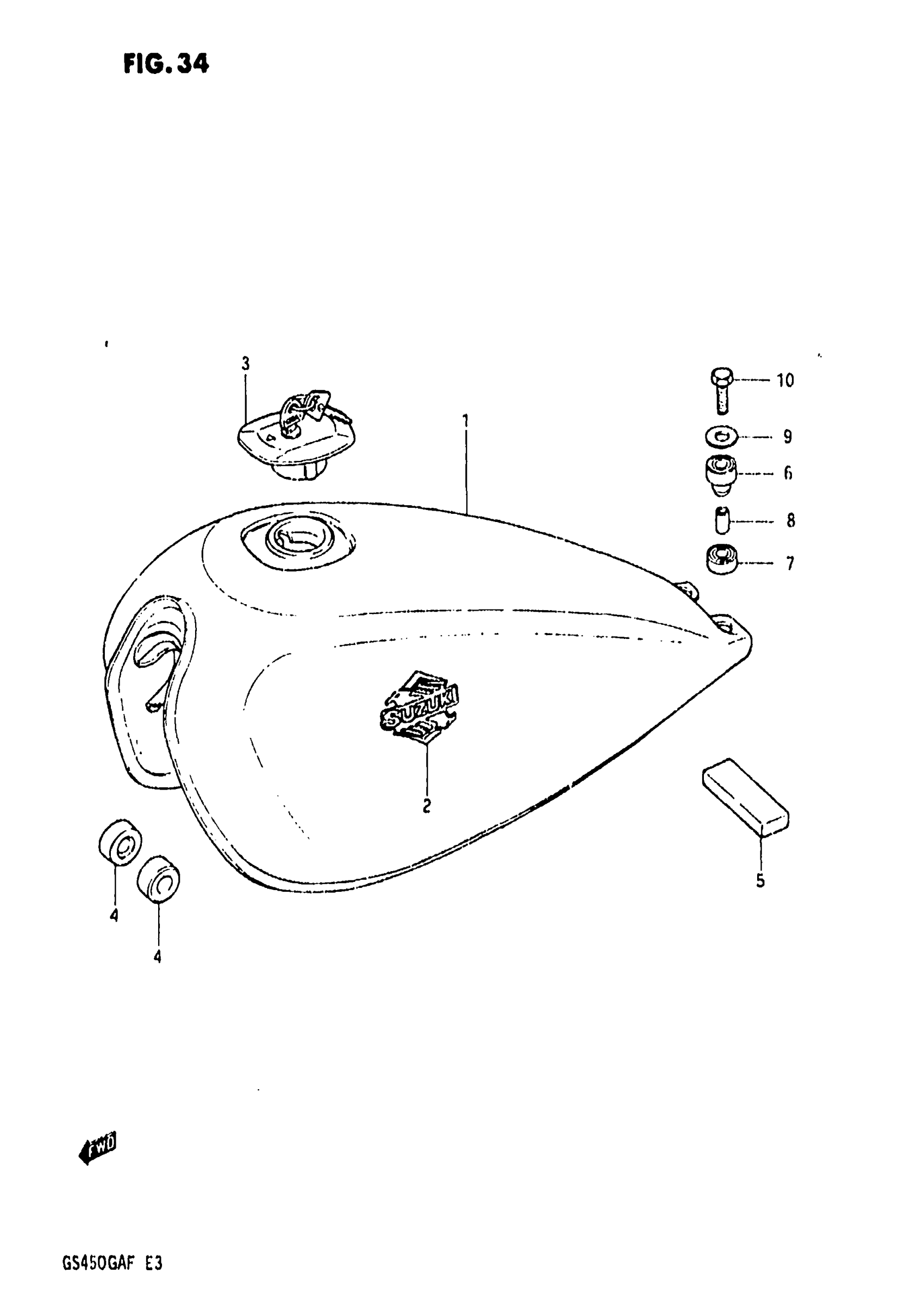

Suzuki GS450GA (1985) FUEL TANK Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-44530-22U.

44110-445V0-13L

Unavailable

2

EMBLEM (MAROON)

68111-11900-22Z

Unavailable

3

CAP, FUEL FILLER

44200-44500-KEY

Unavailable

4

CUSHION, FRONT

09329-10016

$2.80

5

CUSHTION, CENTER

44541-47000

$9.97

6

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

7

CUSHION, REAR NO.2

09320-14013

$2.19

8

SPACER,6.5X9X20 This part replaces 09180-06107.

09180-06308

Unavailable

9

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.88

10

BOLT This part replaces 01107-06306.

01500-0630A

$2.21
